24.1 CID 1.25 Taper Shaft Magneto Flange MC2 Eaton Hydraulic Motor With Relief Valve

Large Image : 24.1 CID 1.25 Taper Shaft Magneto Flange MC2 Eaton Hydraulic Motor With Relief Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK2 series

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 150 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	35 - 45 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	LSHT Motors	Model:	BMK2
Fastening:	4 Bolt	Rotation:	CW
Shaft:	Female Splined	Type:	GEROLER - SPECIAL
Highlight:	Magneto Flange Eaton Hydraulic Motor , MC2 Eaton Hydraulic Motor , Eaton Hydraulic Motor MC2

Hydraulic Motor 24.1 CID 1.25 Taper Shaft Magneto Flange with Relief Valve, Eaton MC2 series replacement,

Fast review of this LSHT motor:

Model No.	BMK2-400
Displacement	400 ml/r
Mounting	4-13.5 rhomb flange, 106.4mm, pilot 82.5x2.6mm
Output shaft	1.25'' Tapered
Weight	15 kgs
Manufacturer	Hanjiu

Main Specifications:
Type		BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2	BMK2
		65	80	100	125	160	200	250	315	400	475
		65	80	100	125	160	200	250	315	400	475
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Geometric displacement (cm3 /rev.)		65	80	100.9	129.8	156.8	193.4	242.5	304.3	390.8	485
Max. speed (rpm)	cont.	835	800	742	576	477	385	308	246	191	153
Max. speed (rpm)	int.	990	980	924	720	713	577	462	365	287	230
Max. torque (N·m)	cont.	185	235	295	385	455	540	660	765	775	845
Max. torque (N·m)	int.	245	345	445	560	570	665	820	885	925	930
Max. pressure drop (MPa)	cont.	20.5	21	21	21	20.5	20.5	20.5	21	15.5	12
	int.	27.5	31	31	31	26	26	26	24	17	14
	peak	31	31	31	31	31	31	31	31	20.5	17
Max. flow (L/min)	cont.	55	65	75	75	75	75	75	75	75	75
Max. flow (L/min)	int.	65	80	95	95	115	115	115	115	115	115
Weight (kg)		9.2	9.4	9.7	10	10.2	10.5	11	11.5	12	12.4
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

A compact, highly efficient hydraulic motor is a key component of a hydraulic drive system. Hanjiu offers a wide variety of motors with unique performance characteristics which are designed for superior, efficient system performance.

Hydraulic motors provide excellent control for acceleration, operating speed, deceleration, smooth reversals, and positioning. They also provide flexibility in design and eliminate much of the bulk and weight of mechanical and electrical power transmission. Accurate torque and speed calculations based upon system parameters will ensure the motor can survive the harshest operating environments.

At Hanjiu Hydraulics we offer Charlynn's replacement motors for Low Speed High Torque (LSHT) applications. These motors consist of the Geroler and Geroter style motors. With Valve-In-Star, Disc Valve, and Spool Valve motors almost every application is covered.

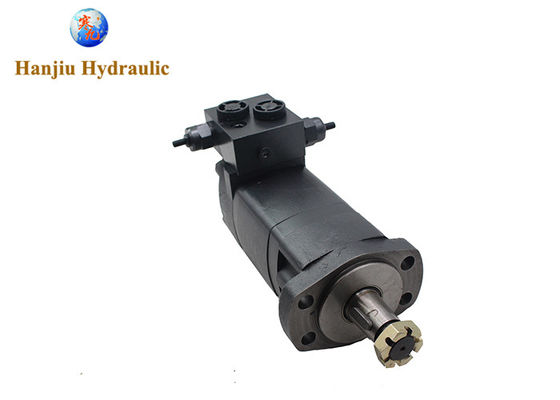

24.1 CID 1.25 Taper Shaft Magneto Flange MC2 Eaton Hydraulic Motor With Relief Valve 0

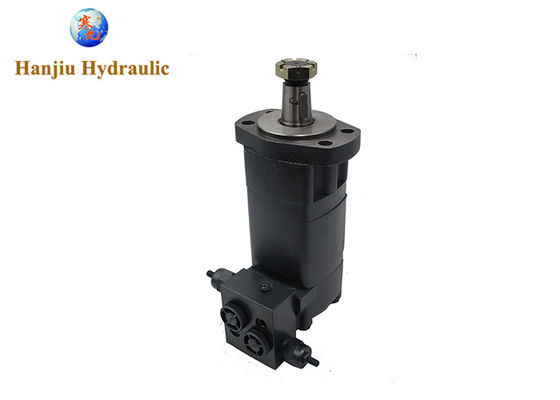

24.1 CID 1.25 Taper Shaft Magneto Flange MC2 Eaton Hydraulic Motor With Relief Valve 1

Can’t find what you are looking for? Contact us today to discuss your questions or application needs with our team.
