4 Section Open Center Motor Spools Directional Control Valve With Three Position Detent

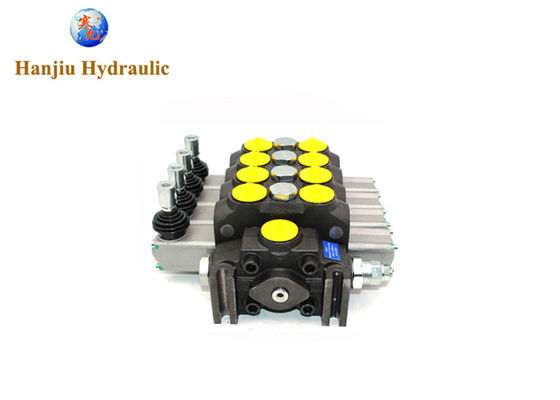

Large Image : 4 Section Open Center Motor Spools Directional Control Valve With Three Position Detent

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	DCV100

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Start from 200 usd
Packaging Details:	Carton, Box, Pallets
Delivery Time:	15 - 45 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Direction Control Valve	Model:	DCV
Spool:	4	Control Type:	Standard
Spool Type:	Open Center Motor Spools	Spool Return Type:	3 Position Detent
Highlight:	DCV directional control valve , three position detent directional control valve , three position detent directional valve

Directional Control Valve 4 Section Open Center Motor Spools with three position Detent

Model: DCV100/4-YW

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into Hydraulic motors.

Fast Review of this valve:

Series	DCV
Spool	4
Flow Rate	100 lpm ( 26.2 US GPM )
Inlet	Side Inlet
Relief Valve Set Pressure	200 bar
Inlet Port:	1 1/16 UNF Thread
Outlet Port:	1 1/16 UNF Thread
A & B Work Ports:	1 1/16 UNF Thread
Outlet	Side Outlet
Function	3 position, spring return, detent

Common Uses:

Operate hydraulic motors

Benefits:

4 Spool valve with compact design allows for installations in tight areas
Used for open center systems (Pump to Tank Flow) – closed center option available
Anti-drop load checks on each spool
Precision ground and hard chrome-plated spools assure a long life
High-tensile strength cast iron monoblock construction
SAE O-Ring ports ensure solid seal and prevent blockages
Capable of closed center or Power Beyond (conversion plug required)

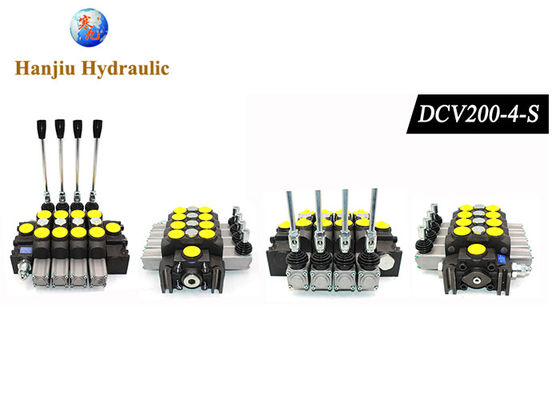

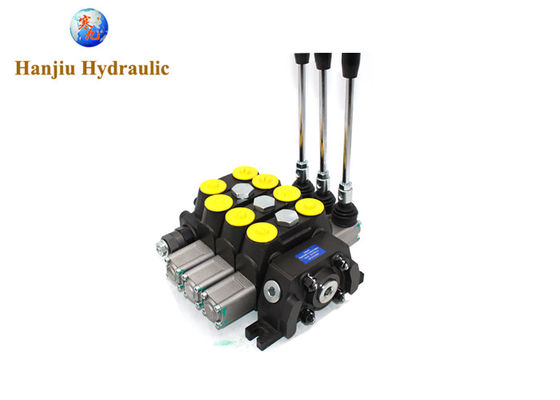

More valves:

4 Section Open Center Motor Spools Directional Control Valve With Three Position Detent 0
