7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick

Large Image : 7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	DCV80/7

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	300 usd +
Packaging Details:	Carton, Box, Pallets
Delivery Time:	15 - 45 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Direction Control Valve	Model:	DCV80
Apply To:	Backhoe	Spool:	7
Function:	Joystick	Joystick:	X2
Highlight:	backhoe hydraulic control valve , 7 spool hydraulic control valve , 7 spool backhoe hydraulic valve

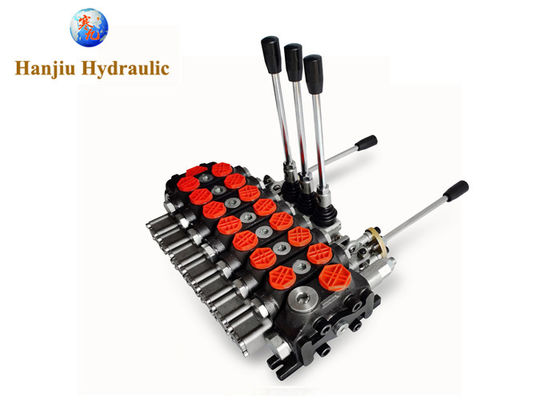

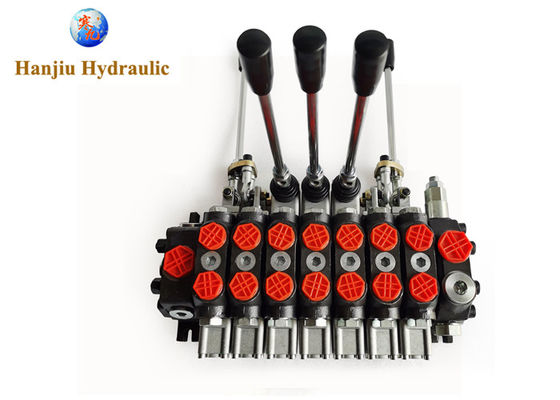

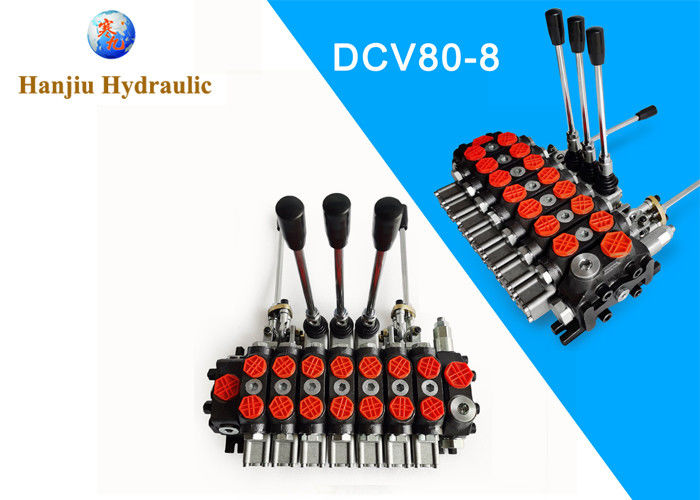

7 Spool 16 GPM Backhoe Hydraulic Control Valve with 2 Joystick

7 SPOOL BACKHOE CONTROL VALVE

New hydraulic control valve. Ideal for controlling Backhoes and other mobile equipment. Joystick spools seperated by two individual spools. The joystick spools can be operated independently or simultaneously depending on handle movement. 2250 PSI work port relief on 2nd spool.

SPECIFICATIONS:

Open Center

Spools Seven

Flow 16 GPM max.

Pressure 4600 PSI max.

Relief Valve Adj. 1450-2900 PSI set @ 2175 PSI

In/Out Ports SAE 10

Work Ports SAE 8

Mount Base four bolt on 11-1/4" x 4-1/4" centers

Size 12-1/8" x 10-1/2" x 4-3/4"

Shpg. 60 lbs.

Norminal Flow	80L/min
Max.flow	80L/min
Max Pressure	315bar
Control Type	manaual or customized
Pneumatic control pressure	5~10bar
Oil port size	as customized
Spool stroke	±5mm

Spool Details:

Spool 1 Double Acting Cylinder Spring Centered

Spool 2 Double Acting Cylinder Spring Centered

Spool 3 Double Acting Cylinder Spring Centered

Spool 4 Double Acting Cylinder Spring Centered

Spool 5 Double Acting Cylinder Spring Centered

Spool 6 Double Acting Cylinder Spring Centered

Spool 7 Double Acting Cylinder Spring Centered

Hanjiu Technology produces various hydraulic valves to adapt to various machinery and applications. We provide services for OEM projects and after-sales markets. More types of hydraulic directional control valves are as follows.

7 Spool 16 Gpm Backhoe Hydraulic Control Valve With 2 Joystick 0

Contact us today to discuss your questions or application needs with our team.
