Rock Drilling Solutions Spare Parts 3115347383 Disc Valve Motor

Large Image : Rock Drilling Solutions Spare Parts 3115347383 Disc Valve Motor

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU CHINA
Certification:	CE
Model Number:	BMSY

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	Negotiable
Packaging Details:	2pcs/32x32x17cm
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Product:	Disc Valve Hydro Motor	Apply To:	All Hydraulic Rock Drilling Equipments
Flange:	4 Hole, Rhomb	Shaft:	Splined 14-DP12/24
Max Flow:	Cont.75/int.90 L/min	Max Speed:	Cont.470rpm,int.560rpm
Highlight:	3115347383 disc valve motor , 560rpm disc valve motor , 3115347383 danfoss hydro motor

Rock Drilling Solutions Spare Parts Hydro Motor 3115347383 Replacement Parts Oem Parts

This type BMSY Motors can be widely used on rock drilling equipments

especially for ATLAS COPCO COP1840

also supply below OEM parts

3115347380

3115347381

3115347383

3115347385

The main specification

Type		BMSY BMSE 80	BMSY BMSE 100	BMSY BMSE 125	BMSY BMSE 160	BMSY BMSE 200	BMSY BMSE 250	BMSY BMSE 315	BMSY BMSE 375
Geometric displacement (cm3 /rev.)		80.6	100.8	125	157.2	200	252	314.5	370
Max. speed (rpm)	cont.	800	748	600	470	375	300	240	200
Max. speed (rpm)	int.	988	900	720	560	450	360	280	240
Max. torque (N·m)	cont.	190	240	310	316	400	450	560	536
	int.	240	300	370	430	466	540	658	645
	peak	260	320	400	472	650	690	740	751
Max. output (kW)	cont.	15.9	18.8	19.5	15.6	15.7	14.1	14.1	11.8
Max. output (kW)	int.	20.1	23.5	23.2	21.2	18.3	17	18.9	17
Max. pressure drop (MPa)	cont.	17.5	17.5	17.5	15	14	12.5	12	10
	int.	21	21	21	21	16	16	14	12
	peak	22.5	22.5	22.5	22.5	22.5	20	18.5	14
Max. flow (L/min)	cont.	65	75	75	75	75	75	75	75
Max. flow (L/min)	int.	80	90	90	90	90	90	90	90
Max. inlet pressure (MPa)	cont.	25	25	25	25	25	25	25	25
Max. inlet pressure (MPa)	int.	30	30	30	30	30	30	30	30
Weight (kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	12.6

* Continuous pressure :Max. value of operating motor continuously.

* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.

* Peak pressure:Max. value of operating motor in 0.6 second per minute. Rock Drilling Solutions Spare Parts 3115347383 Disc Valve Motor 0

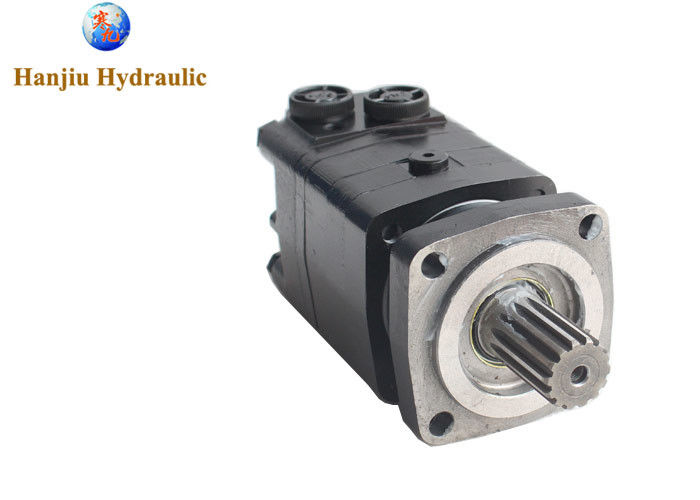

Rock Drilling Solutions Spare Parts 3115347383 Disc Valve Motor 1

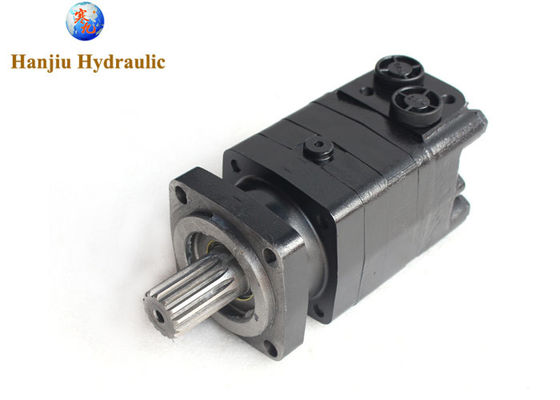

Rock Drilling Solutions Spare Parts 3115347383 Disc Valve Motor 2

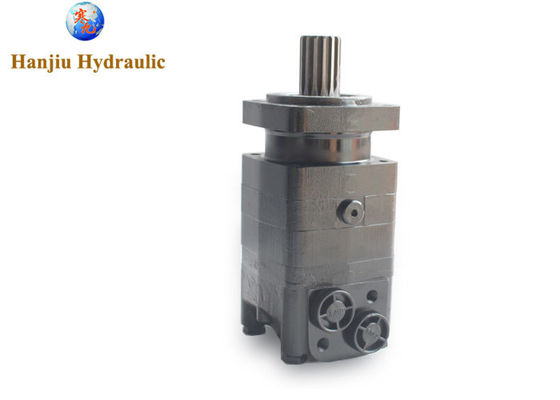

Rock Drilling Solutions Spare Parts 3115347383 Disc Valve Motor 3
