V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump

V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump
V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump

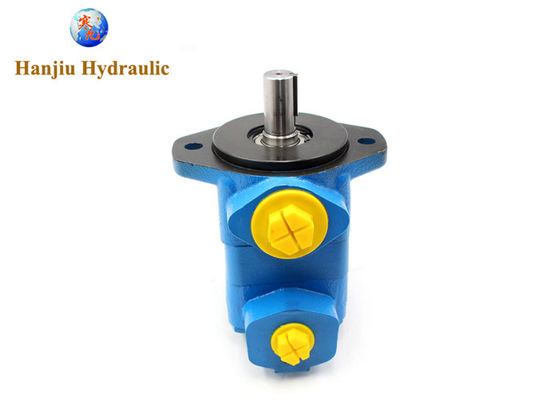

Large Image :  V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: V10 1P7P 1C20
Payment & Shipping Terms:
Minimum Order Quantity: 1Sets
Price: Contact the seller to get a quote
Packaging Details: Carton, Box, Pallets
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 300000 sets per year
Detailed Product Description
Item: Single Vane Pump Series: V10
Displacement: 22.8 Cm³/r Maximum Flow Rate: 16gpm
Maximum Operating Pressure: 2000 Psi Maximum RPM: 2800 RPM
High Light:

v10 hydraulic vane pump

,

1p7p hydraulic vane pump

,

1c20 vickers hydraulic vane pump





V10 1P7P 1C20 Vickers (Eaton) Hydraulic Vane Pump Aftermarket







MOQ: 1 unit
Location: China
Brand: Hanjiu
Model:
V10 1P7P 1C20
Notes: Vickers (Eaton) Hydraulic Vane Pump Aftermarket





DESCRIPTION
V10 VANE PUMP
Brand new, hydraulic balanced vane pumps. Cast iron construction. Operating rotation can be field reversed. Outlet port can be field rotated any position.






Rotation CW
Pressure:
2000 PSI cont.
Speed:
600 RPM min.
2800 RPM max.
Flow:
16 GPM @ max. RPM
Mount 2 bolt SAE A
Shaft 3/4" dia. X 1-3/4" w/ 3/16" key
Inlet Port 1" NPT
Outlet Port 1/2" NPT
Size 5-1/4" X 5-1/4" X 4-1/4"
Shpg. 15 lbs.







SPECIFICATIONS

Vane Pump Type Single
Series V10
Displacement 22.8 cm/r
Inlet Port Size 1 in NPT
Outlet Port Size 1/2 in NPT
Flow 16 GPM @ max
Maximum Operating Pressure 2000 psi
Rotation CW
Speed 600 RPM min.
2800 RPM max
Mount 2 bolt SAE A
Shaft 3/4" dia. X 1-3/4" w/ 3/16" key
Inlet Port 1" NPT
Outlet Port 1/2" NPT
Size 5-1/4" X 5-1/4" X 4-1/4"
Weight 15 lbs.

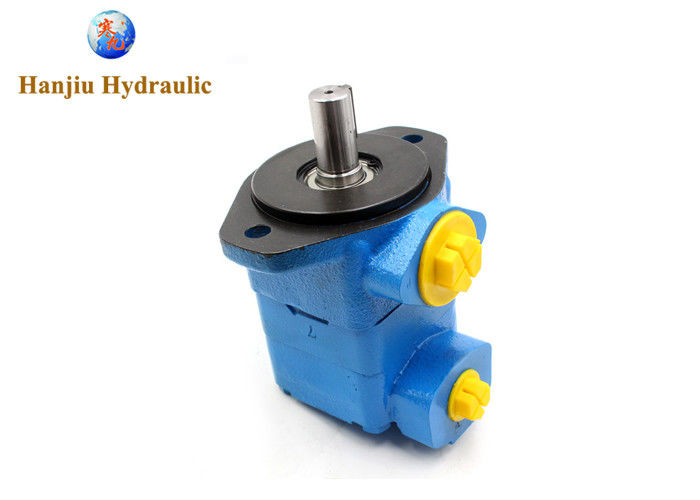

V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump 0

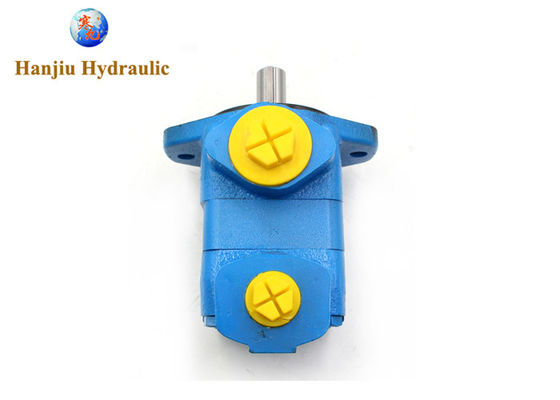

V10 1p7p 1c20 Vickers Eaton 16gpm Hydraulic Vane Pump 1

















COMMENTS

Sell ​​as is. 12 months warranty. The conditions for removal and loading are the sole responsibility of the buyer.
