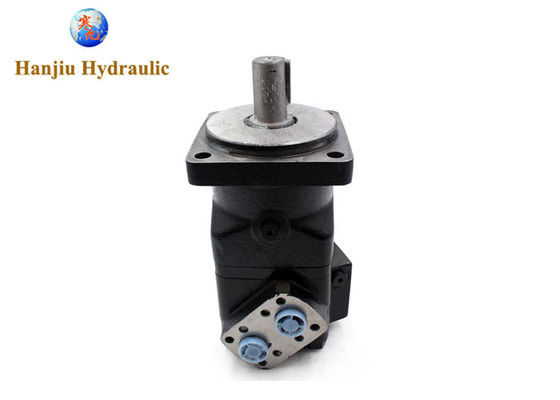

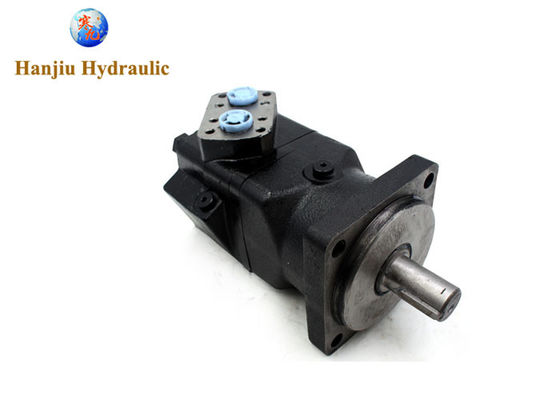

| Item: | Orbit Hydraulic Motor | OEM #: | 600200A8220AJAAD |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 200ml/r |
| Mounting Flange: | 4-hole Wheel Flange | Shaft Type: | Straight |
| High Light: | 200ml/r orbit hydraulic motor,600200a8220ajaad orbit hydraulic motor,200ml/r eaton orbit motor |
||
Medium Duty Drive Engines for wheel drives, augers, mixers, winch drives
This is a medium duty drive engines which is compatible with White DR series. It widely used on wheel drives, augers, mixers, winch drives, swing drives, grapple heads, feed rollers, broom drives, chippers, mining equipment, forestry equipment and more.
Specification:
| Code | Displacement | Max. Speed | Max. Flow | Max.Torque |
| cm3(in3/r) | rpm | lpm(gpm) | Nm(lb-in) | |
| 200 | 204 [12.4] | 470 560 | 95 [25] 114 [30] | 554 [4900] 644 [5700] |
| 260 | 261 [15.9] | 360 440 | 95 [25] 114 [30] | 745 [6590] 859 [7600] |
| 300 | 300 [18.3] | 320 380 | 95 [25] 114 [30] | 842 [7450] 972 [8600] |
| 350 | 348 [21.2] | 270 320 | 95 [25] 114 [30] | 972 [8600] 1107 [9800] |
| 375 | 375 [22.8] | 250 300 | 95 [25] 114 [30] | 1085 [9600] 1243 [11000] |
| 470 | 465 [28.3] | 200 240 | 95 [25] 114 [30] | 1107 [9800] 1316 [11650] |
| 540 | 536 [32.7] | 180 210 | 95 [25] 114 [30] | 1034 [9150] 1277 [11300] |
| 750 | 748 [45.6] | 130 150 | 95 [25] 114 [30] | 1040 [9200] 1390 [12300] |
Overview:
This Series drive engine is an excellent medium size motor for applications with high- duty cycles or frequent direction reversal. The drain design produces a number of benefits including reduction of pressure on the shaft seal and the ability to provide a cooling loop for the system. The flow also lubricates the vital drive components, extending motor life. An internal drain option is also available. A laminated manifold and three-zone orbiting valve are used to produce higher overall efficiencies and more usable power. A steel faced seal in the orbiting valve also reduces the risk of the seal extruding or melting, which is possible in competitive designs.
