Product Details:
Payment & Shipping Terms:
|
| Model No.: | DCV200-5 | Bank: | 5 Banks/spools/sets |
|---|---|---|---|
| Flow: | 200lt ... | Spool Function: | Manual/pneumatic/floating |
| Pressure: | 315bar | Application: | Skip Trucks, Hook Loaders, Refuse Trucks, Ejector Trailers |
| High Light: | 3ks180 sectional control valve,skip trucks sectional control valve,3ks180 sectional valve |
||

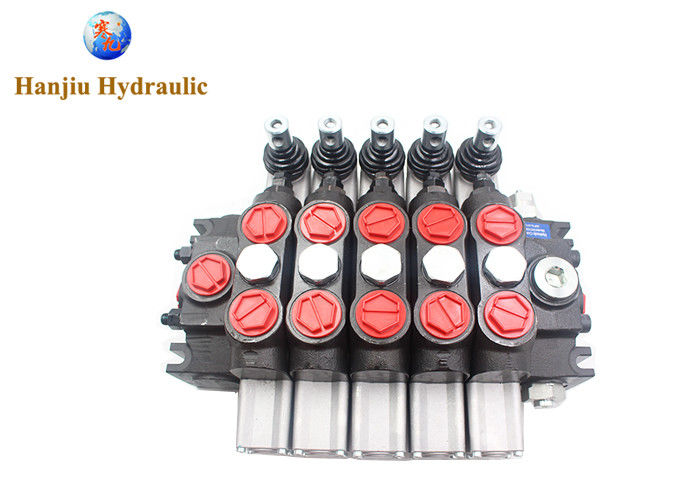

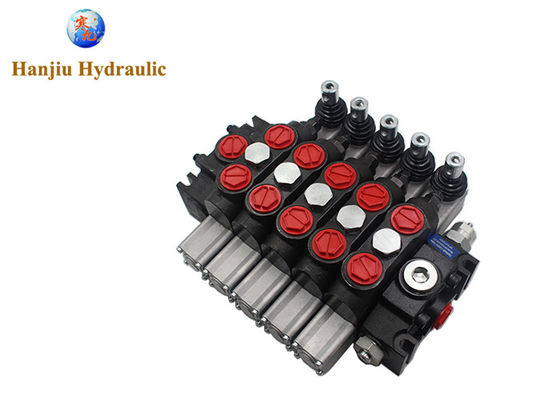

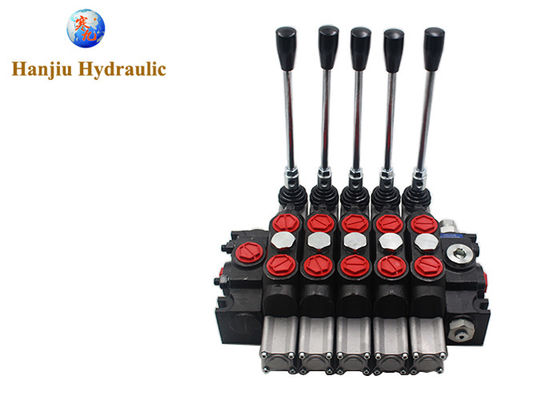

3KS180 Heavy Duty Sectional Control Valve,Lever Valve,Spring Center For Skip Trucks
Product details:
| Norminal Flow | 200L/min |
| Max Flow | 53gpm |
| Max Pressure | 315mpa |
| Control Type | manual, pneumatic, hydraulic, electro-hydraulic |
| Allowed back pressure | ≤1 mpa |
| Oil port size | customizable |
features:
sectional valve
200 l/min
5 sections
connections A&B: G 3/4’’
double acting
spring centered
pressureless flow in neutral position
max. working pressure: 315 bar
incl. pressure relief valve
pressure relief valve adjustable from 125 bar – 220 bar (standard: 175 bar)
