Item: | MANUAL DIRECTIVE VALVE BLOCK | Model: | P45 |
---|---|---|---|
Apply To: | Mobile Equipment | Spool: | 3 |
Function: | Spring Return | Flow: | 45 LPM |
High Light: | 45 lpm hydraulic directional control valve,200 lpm hydraulic directional control valve,20 lpm direction control valve |
Hydraulic Valve is built to be tough and reliable for heavy-duty dump truck operations. Hanjiu Technology offers a variety of hydraulic valves, provides direction control to pressure relief to specific functions in your truck's hydraulic operations.

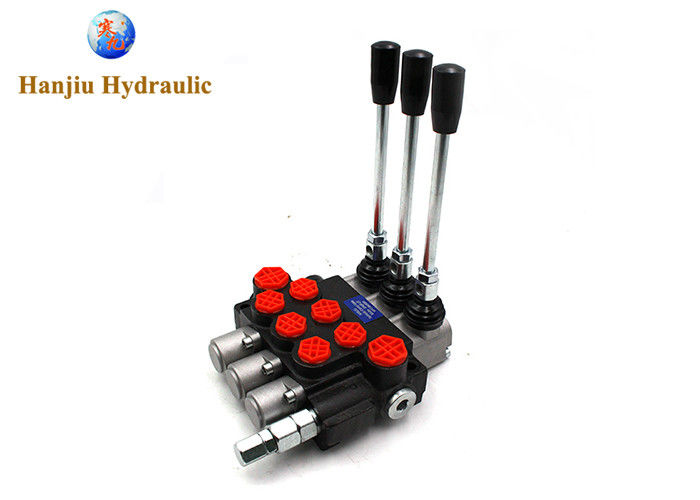

3 section hydraulic spool valve with 3/8th BSP ports.
Max Flow: 45 lpm
Max Pressure: 250 Bar
Ports: 3/8th BSP
Nominal flow rate | 45 l/min | 12 US gpm | |
Operating pressure (maximum) | 250 bar | 3626 psi | |
Back pressure (maximum) | on outlet port T | 25 bar | 360 psi |
Fluid temperature range | with NBR(BUNA-N) seals | from - 20° to 80°C | from - 4° to 176° F |
with FPM(VITON) seal | from - 20° to 100°C | from - 4° to 212° F | |
Viscosity | operating range | from 15 to 75 mm2 /s | from 15 to 75 cst |
min | 12 mm2 /s | 12 cst | |
max. | 400 mm2 /s | 400 cst | |
Ambient temperature range | from - 40° to 60°C | from - 40° to 140° F |

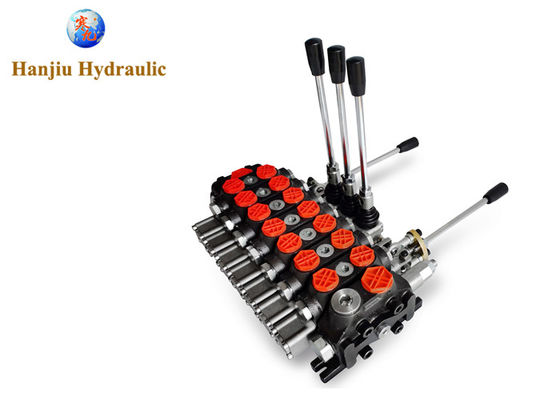

More Valve available:
For electro-pneumatic and electro remote control options call our sales team on +86-311-68123061 or WhatsApp 008613831101542.
