Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | P81 |
|---|---|---|---|
| Apply To: | Log Splitter | Spool: | 1 |
| Function: | Spring Return | Flow: | 80 LPM |
| High Light: | 1 spool log splitter lever,spring return log splitter lever,80 lpm log splitter lever |
||

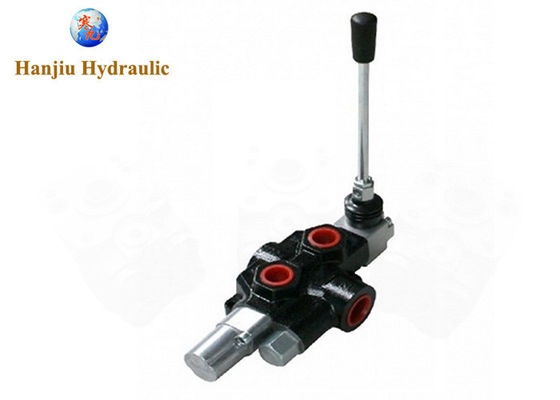

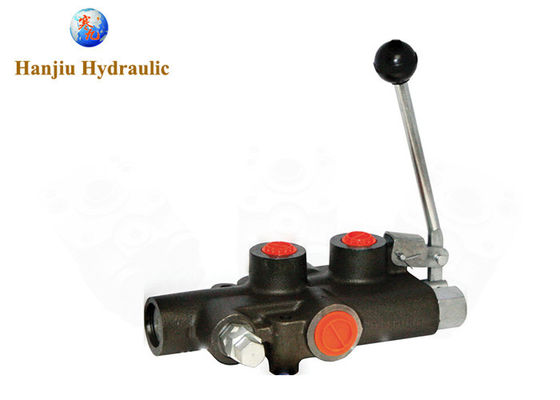

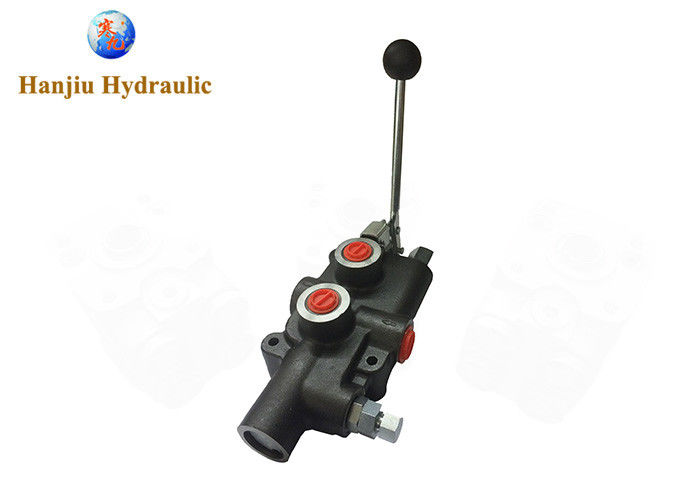

Auto Kick Out Log Splitter Lever Valve, 1 Bank 3/4" BSP 80LPM
Kick-out pressure can be set between 70-140 bar
Automatically kicks into neutral position on return of ram
| Nominal Flow: 80 lpm | Max Pressure - P: 250 bar Max Pressure - A, B: 300 bar Max Back Pressure - T: 10 bar Hydraulic Fluid: Mineral oil Ports A, B: 1/2" BSP Ports P, T: 3/4" BSP |
| Technical Information: | Spool Type: Tandem Center Construction of a high tensile strength grey cast iron Built-in adjustable relief valve Hard chrome plated spool |
| Recommended Hydraulic Systems: | Maximum Tank Pressure: 500 PSI Maximum Operating Temperature: 180°F Recommended Systems Filtration: 10 Micron |
| Standard Features: | Maximum GPM: 18 Maximum L/min: 81 Peak GPM: 20 Peak L/min: 90/p> Maximum Operating Pressure: 3000 PSI Spool action is spring center / Hydraulic auto kick out built-in main relief valve pre-set at 1800 PSI Auto kick out pressure in a non-adjustable, pre-set at 800 PSI Handle can be installed in "up" or "down" position 4 way 3 position. |
Application:
Suitable for log splitters and applications requiring a pressure kick-out to neutral function.
This valve must be fitted in accordance with BS EN 609.
Features:
* Individually tested.
* Compact.
* Low profile.
* Reversible lever.
* Rugged construction.
* Adjustable pressure settings.
* Economic.
* 3 bolt fixing.
The P81 is a specialised valve designed for use on log splitter machinery. Log splitter auto kick out control monoblock valve designed to spring center to neutral in one direction and pressure release the detent in the other direction when the cylinder completes its return stroke. This valve is made by Hanjiu. It is a 3-position valve with a spring return to neutral for splitting the log “dead mans lever” and detented in the reverse direction for returning the blade. The integral pressure kick out automatically returns the valve to neutral at the end of the return stroke. A built in relief valve protects the hydraulic circuit. Both the main relief and kickout pressures are adjustable. To provide flexibility of mounting the lever can be fitted to the 180 deg position. This facility also reverses the lever movement in relation to the spool. For more information on the log splitter valve or on Hanjiu's range of valves please contact Alyssa 0086-311-68123061 or Alyssa 0086 13831101542.
