Product Details:
Payment & Shipping Terms:
|
| Model No.: | P40,P45,P60,P80,P120,ZT12,ZT20 | Warranty: | One Year |
|---|---|---|---|
| Application: | Tractors,loaders, Trailers,Log Splitter | Flow: | 90lt,. |
| Spool Function: | O/Y/A | Control Mode: | Manual,hydraulic ,pneumatic,electric |
| High Light: | 200 Bar Manual Directional Control Valve,Forestry Trailer Manual Directional Control Valve,Sprayer Electric Hydraulic Directional Control Valve |
||

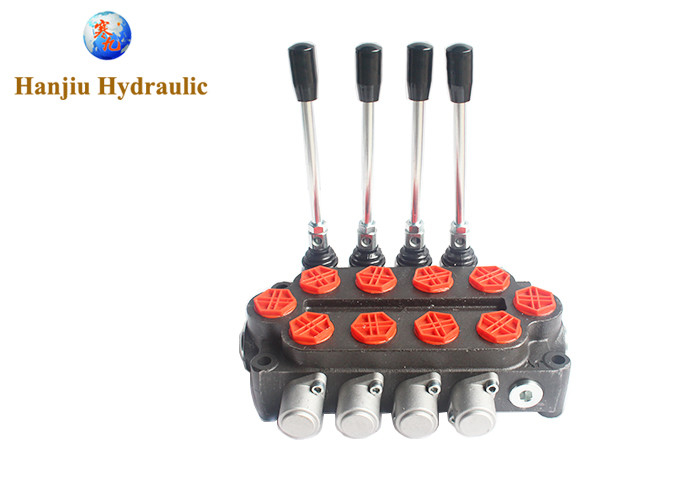

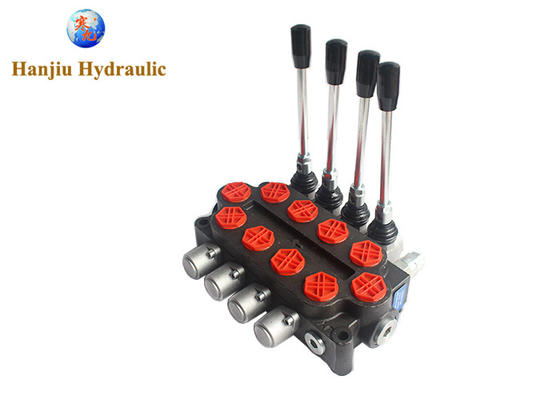

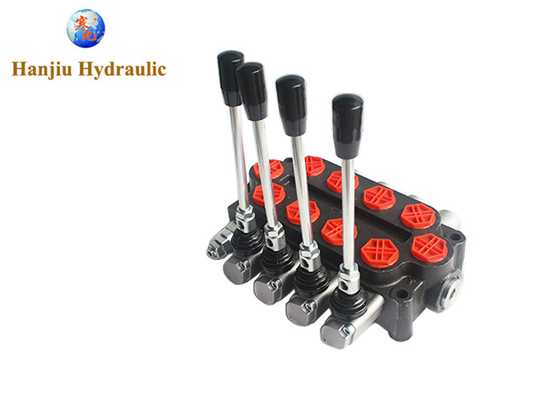

Hydraulic Motor Directional Valve Nachi Hydraulic Directional Valve For Forestry Trailer ,Sprayer
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 200 bar |
| Back pressure | 50 bar |
| Nominal flow | 90 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
There are more suppliers of hydraulic components on the market than you can imagine. On the one hand, the increase in products gives consumers more choices, and on the other hand, it also brings certain difficulties to consumers in choosing hydraulic components. With so many brands of hydraulic components, which one should you trust?
The rapid development of science and technology has naturally led to the upgrading of hydraulic components. Has your hydraulic system been upgraded? Is your hydraulic system equipped with the best quality hydraulic directional valve?
Speaking of hydraulic reversing valve, I believe you will not be unfamiliar with it. The hydraulic reversing valve plays an important role in the hydraulic system. The hydraulic system without the hydraulic reversing valve cannot be regarded as a complete hydraulic system at all. The hydraulic reversing valve is a directional control valve with more than two flow patterns and more than two oil ports, which can realize the communication, cut-off and reversal of the hydraulic oil flow. Without the hydraulic reversing valve, the oil path can only go in one direction, which is a restriction on the operation of the hydraulic system.
The hydraulic system is widely used in various important fields because of its high speed and long running time. If there is no hydraulic reversing valve, the hydraulic system will not be able to play the best role.
If you want the hydraulic system to perform at its best, you must have a high-quality hydraulic directional valve. You don’t know which brand is the best quality hydraulic directional valve on the market now, do you? Of course it is Hanjiu Technology. The hydraulic directional valve produced by Hanjiu Technology is currently the most cost-effective on the market. You can buy the most powerful hydraulic directional valve at a relatively affordable price.
How good is the hydraulic directional valve of Hanjiu Technology? Its strength should not be underestimated and is praised as a combat player with hydraulic directional valves.
