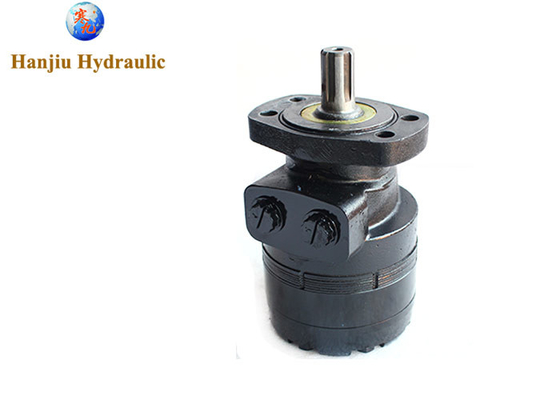

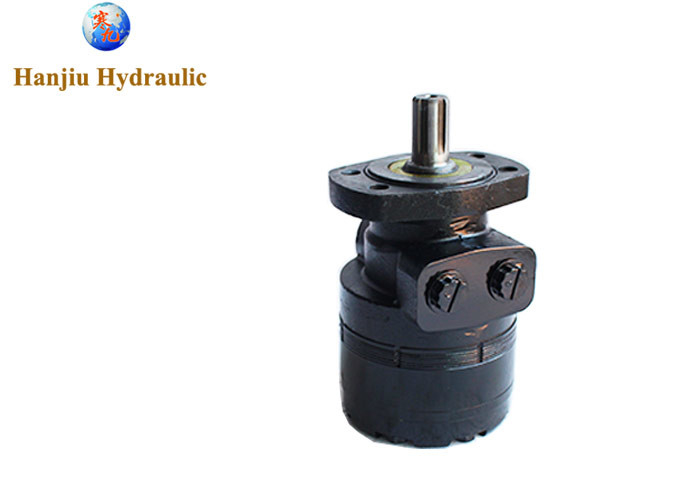

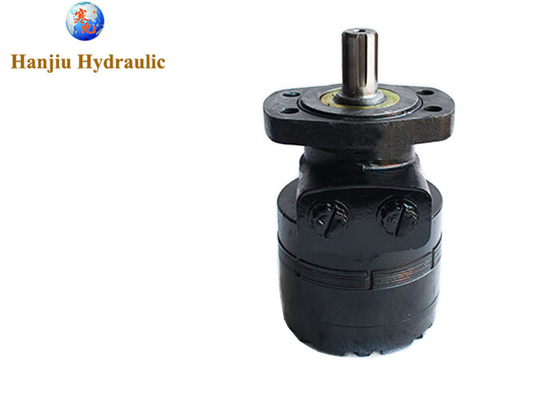

Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa

Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa
Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa

Large Image :  Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: TRW MB MOTOR
Payment & Shipping Terms:
Minimum Order Quantity: 30 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Detailed Product Description
Type: Hydraulic Drive Motor Speed: Cont200rpm/int.240rpm
Warranty: 1year Torque: Cont.990/int.1140 N.m
Output: 16.5kw-19kw Pressure: 20.5mpa-24mpa
High Light:

orbit hydraulic motor mb220101aaaa

,

trw orbit hydraulic motor

,

ross hydraulic drive motor

ROSS TRW Torq Motor MB220101AAAA New Hydraulic Motor
 .

Product details:



1, model number BMER
2, displacement 375ml/r
3, flange magneto Mount
4, shaft SAE 6B
5, oil port 7/8-14 o-ring
6, drain ---
7, rotation Standard
8, paint Black
9, replace WHITE RE/ TRW MB/ DANFOSS 500


Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N*m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90





Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa 0Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa 1Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa 2Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa 3



Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa 4Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa 5Drive Ross Trw Orbit Hydraulic Motor Mb220101aaaa 6

The BMER series has BMER 250, BMER250, BMER375, BMER475, BMER 750 and other hydraulic motors of different specifications. For you to choose. The hydraulic motors of the BMER series use advanced Geroler gear sets with high flow and high pressure, which have good low-speed stability and high volumetric efficiency.

This hydraulic motor can start at the fastest speed even in a low pressure environment, and the shell can also provide high pressure and high torque capabilities, which can be widely used in agricultural machinery, forestry machinery, mining equipment and other fields. Such as stump grinders, hedge trimmers, retractors, cranes, etc. The reason why our products are widely used in these important fields is that our products are of excellent quality, and the other is that our products are extremely cost-effective. Purchasing BMER series hydraulic motors can reduce life cycle costs and maintain high volume. Efficiency, so that the hydraulic system can ensure long-term stable operation.
