Product Details:
Payment & Shipping Terms:
|
| Features: | Compatible With Parker TJ | Type: | Gerotor Hydraulic Motor |
|---|---|---|---|
| Manufacturer: | HANJIU | Model: | BMJ-295-WDB |
| Displacement: | 295 Ml/r | Rotation: | Clockwise |
| High Light: | tj parker gerotor motor,cylindrical shaft parker gerotor motor,tj gerotor motor |
||

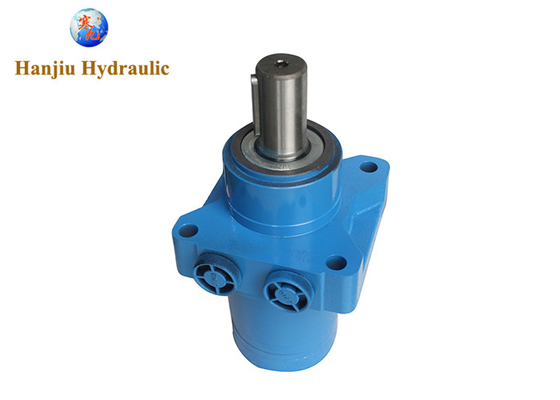

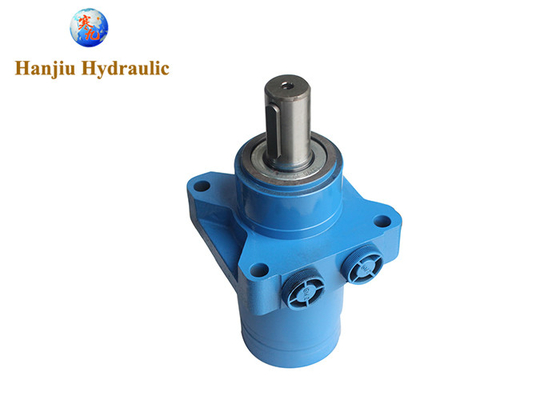

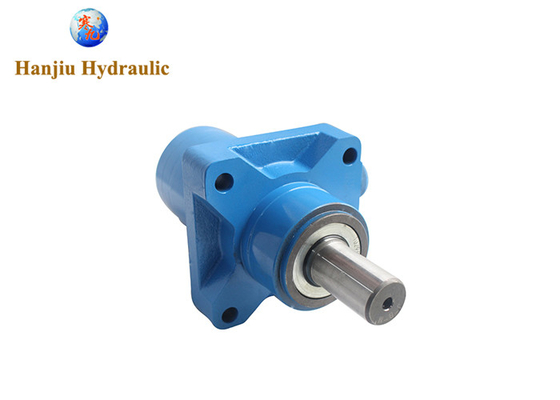

Parker Motors, TJ replacement, 4 bolt Wheel-flange, Port G1/2, Cylindrical Shaft Ø32
This is a Parker TJ aftermarket motor. it's not made by Parker, it's made by Hanjiu from China, which is our specialty.
Spec:
| Type | BMJ | |
| 295 | ||
| Geometric displacement (cm3 /rev.) | 287.8 | |
| Max. speed (rpm) | cont. | 196 |
| int. | 254 | |
| Max. torque (N•m) | cont. | 393 |
| int. | 547 | |
| Max. output (kW) | cont. | 8.7 |
| int. | 15.6 | |
| Max. pressure drop (MPa) | cont. | 10 |
| int. | 14.5 | |
| peak | 17 | |
| Max. flow (L/min) | cont. | 57 |
| int. | 75 | |
Quick review : BMJ-295-WDB
Output Shaft : Cylindrical Shaft Ø32,Parallel key 10×8×45
Rotation Direction : Clockwise
If you are looking for a Parker similar or identical motor, contact us immediately, send your request and we will work for you.
