6000 Series Replacement Eaton Gerotor Motor 4 Bolt Square Flange Pilot 160mm Shaft 50mm

Large Image : 6000 Series Replacement Eaton Gerotor Motor 4 Bolt Square Flange Pilot 160mm Shaft 50mm

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMK6-630-J6-A-D

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	start from 210 usd
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Features:	Compatible With Eaton 6,000 Series	Type:	Gerotor Hydraulic Motor
Manufacturer:	HANJIU	Model:	BMK6-630-J6-A-D
Displacement:	630 Ml/r	Rotation:	Right And Left
Highlight:	6000 series replacement eaton gerotor motor , square flange eaton gerotor motor , shaft 50mm gerotor hydraulic motor

Eaton Motors, 6000 series replacement, 4 bolt square flange, pilot 160mm , shaft 50mm

This is a Eaton 6000 series aftermarket motor. it's not made by Eaton, it's made by Hanjiu from China, which is our specialty.

Quick review : BMK6-630-J6-A-D

Displacement : 630 ml/r

Flange,Pilot, Ports : 4-Ø18 Square-flange,Pilot Ø160×8

Output Shaft : Cylindrical Shaft Ø50,Parallel key 14×9×70

Port : G 1 Manifold

Rotation Direction : Left and Right

Spec:

Type		BMK6
Type		630
Geometric displacement (cm3 /rev.)		623
Max. speed (rpm)	cont.	240
Max. speed (rpm)	int.	360
Max. torque (N•m)	cont.	1480
Max. torque (N•m)	int.	1890
Max. pressure drop (MPa)	cont.	17.5
	int.	22.5
	peak	24
Max. flow (L/min)	int.	150
Max. flow (L/min)	cont.	225
Weight kgs		29.6

Our motors are 100% compatible with Eaton Chay-lynn. We all have motors that can be matched with them, with the same quality, complete models and fast delivery. It can meet the demand for Eaton Chay-lynn motors of older models, increase competitiveness, reduce costs, increase turnover, and improve your prestige position in the market.

If you are looking for a Eaton Chay-lynn similar or identical motor, contact us immediately, send your request and we will work for you.

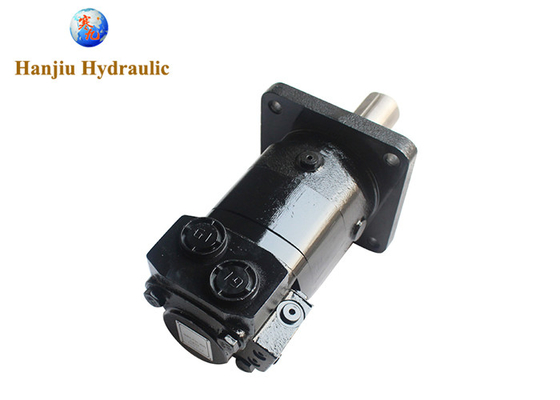

6000 Series Replacement Eaton Gerotor Motor 4 Bolt Square Flange Pilot 160mm Shaft 50mm 0

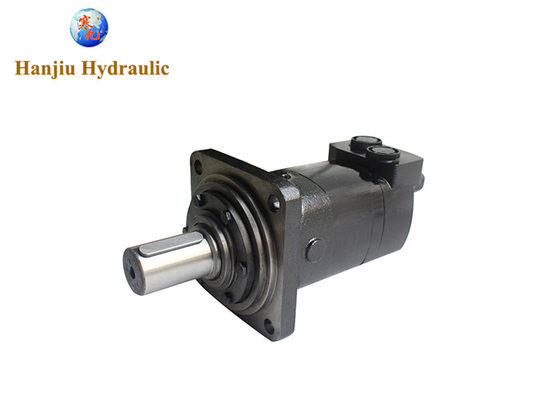

6000 Series Replacement Eaton Gerotor Motor 4 Bolt Square Flange Pilot 160mm Shaft 50mm 1

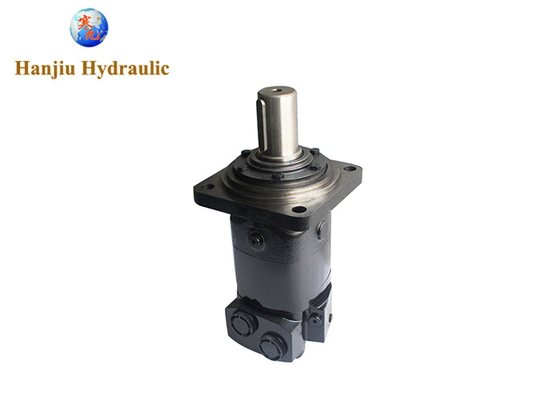

6000 Series Replacement Eaton Gerotor Motor 4 Bolt Square Flange Pilot 160mm Shaft 50mm 2
