Product Details:
Payment & Shipping Terms:
|
| Features: | Compatible With Eaton 6,000 Series | Type: | Gerotor Hydraulic Motor |
|---|---|---|---|
| Manufacturer: | HANJIU | Model: | BMK6-1000-CC-FE-SF5 |
| Displacement: | 1000 Ml/r | Rotation: | Right And Left |
| High Light: | pilot 127mm gerotor hydraulic motor,shaft 38.1mm gerotor hydraulic motor,char lynn 6000 series gerotor motor |
||

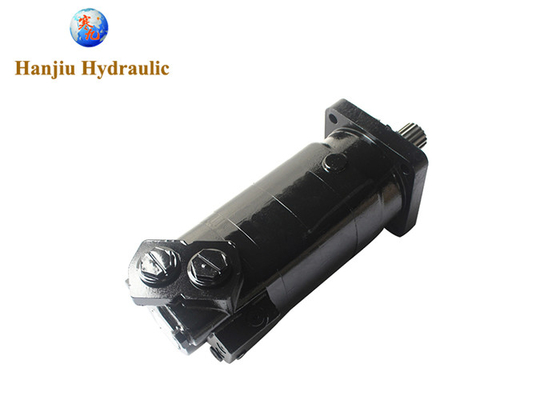

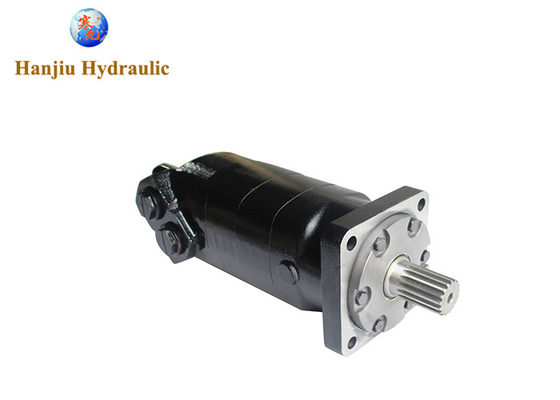

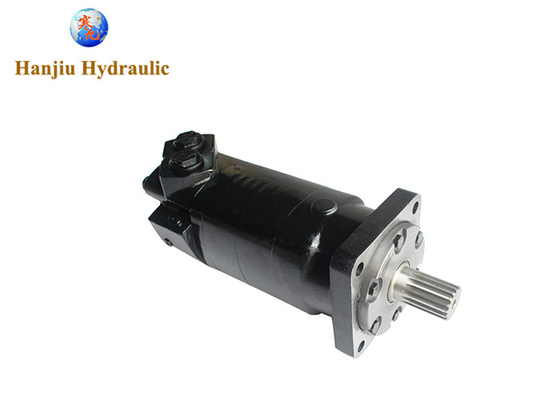

Char-lynn gerotor motor 6000 series replacement, 4 bolt square flange, pilot 127mm , shaft 38.1mm
This is a Eaton 6000 series aftermarket motor. it's not made by Eaton, it's made by Hanjiu from China, which is our specialty.
Quick review : BMK6-1000-CC-FE-SF5
Output Shaft : Shaft Ø38.1, spline tooth 17-DP 12/24
Port : 1-5/16-12UN
Rotation Direction : Left and Right
Spec:
| Type | BMK6 | |
| 1000 | ||
| Geometric displacement (cm3 /rev.) | 981.6 | |
| Max. speed (rpm) | cont. | 152 |
| int. | 230 | |
| Max. torque (N•m) | cont. | 1675 |
| int. | 1860 | |
| Max. pressure drop (MPa) | cont. | 14 |
| int. | 14 | |
| peak | 17 | |
| Max. flow (L/min) | int. | 150 |
| cont. | 225 | |
| Weight kgs | 32 | |
If you are looking for a Eaton Chay-lynn similar or identical motor, contact us immediately, send your request and we will work for you.
