Product Details:
Payment & Shipping Terms:
|
| Model No.: | 2P80 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 80lters |
| Spool Function: | O/Y/A | Oil Ports: | G3/4,G1/2 |
| High Light: | 2 spool hydraulic directional control valve,sprayers spool hydraulic directional control valve |
||

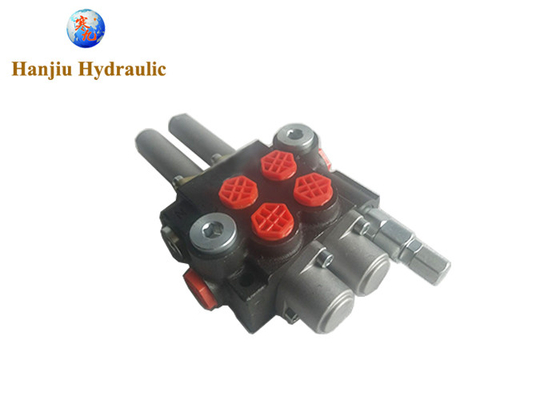

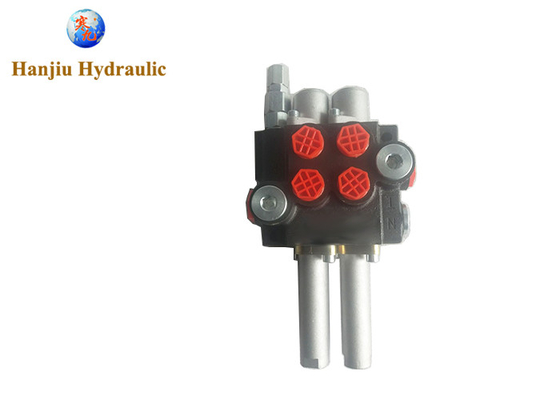

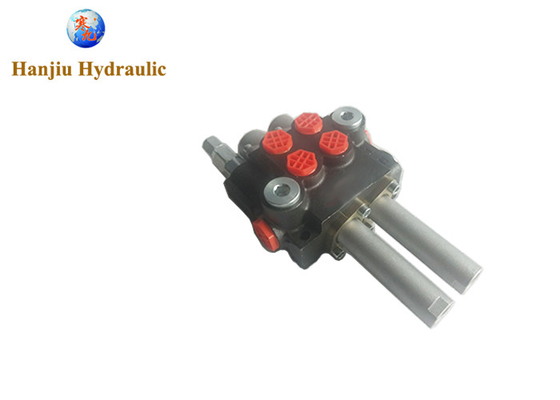

2spools hydraulic distributor 80L cable control used on sprayers 2P80 A1A1 2XKIT
P80 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 80 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | 2spools |
It is widely used in hydraulic systems in construction, agriculture and industry.
The distributor is adapted to various types of machines such as: agricultural machinery, tractors,
sprayers, turns, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers,
industrial machines and for other hydraulically controlled devices.
It can be used wherever, for reasons of safety and better comfort
control and the need to maintain cleanliness, it is required to install the manifold outside
cabin. Only the control unit, e.g. the joystick, remains in the cabin. This ensures no risk
oil leakage in the cabin.
How to choose monoblock valves?
P XX-X-X-X-XXX-XXX...-X-X
① ② ③ ④ ⑤⑥⑦ ⑤⑥⑦ ⑧ ⑨
① flow:40,80
② number of sections:1-8
③ relief valve set pressure:100-250bar
④ inlet port size: see table(1)
⑤ control type see table(2)
⑥spool type
⑦spool returing type
⑧work port size see table(1)
⑨outlet port size see table(1)
PORTS table(1)
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
