Product Details:
Payment & Shipping Terms:
|
| Model No.: | Direction Control Valve | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 7lever/section | Flow: | 60liters |
| Spool Function: | O/Y/A | Max Pressure: | 350bar |
| High Light: | 12v hydraulic directional control valve,double 12v hydraulic directional control valve,12v single spool directional control valve |
||

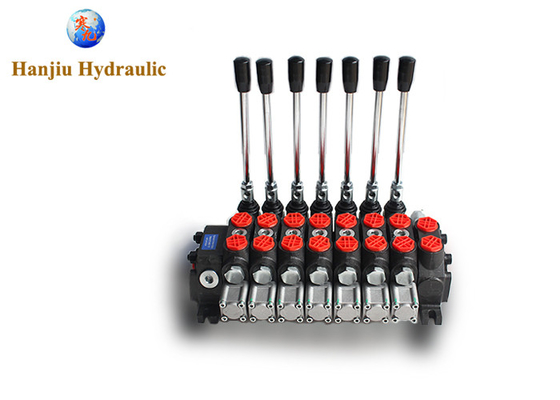

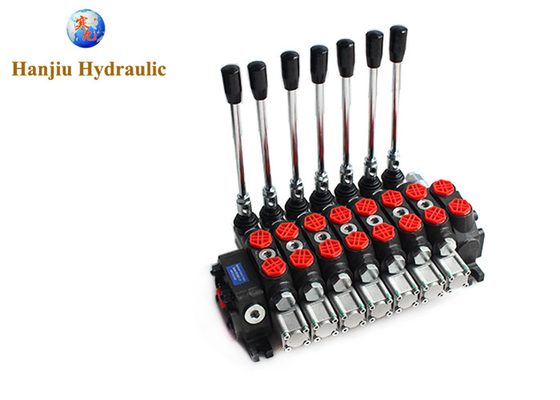

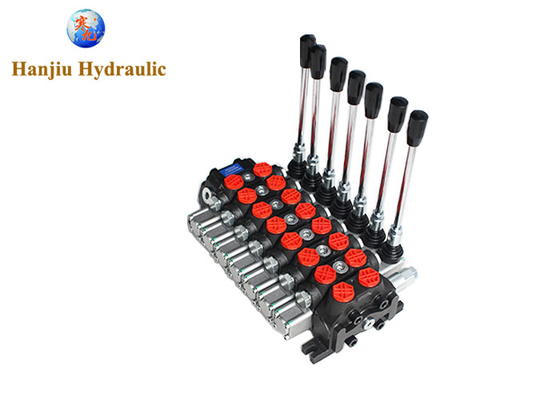

DCV60 is used for switching on/off and directing the working fluid between head flow generators,head flow consumers and the tank.It is a sectional directional control valve with manual control.They can be integrated in packages of up to 8 sections.
|
Norminal Flow
|
60 L/min
|
|
Max Flow
|
16GPM |
|
Max Pressure
|
315 bar/5076PSI
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | 7sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional
RELATED PRODUCTS:
We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.
| P40 | Monoblock |
| P80 | Monoblock |
| HSV6(12V/24V) | Sectional |
| DCV 40 (1-6) DCV 45 (1-8) |
Monoblock |
| DCV60 (1-12) | Sectional |
| DCV100 (1-12) | Sectional |
| DCV140 (1-12) | Sectional |
| DCV200 (1-12) | Sectional |
