Product Details:
Payment & Shipping Terms:
|
| Model No.: | 2P40 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | O/Y/A | Warranty: | 12months |
| High Light: | agricultural machinery directional control valve,40l dcv valve,1/2 ports dcv valve |
||
Characteristic:
Nom. working pressure P - N: 250 bar
nom. working pressure A - B: 300 bar
nom. operating pressure T: 50 bar
connection: P-T NPT 3/4
connection: A-B NPT 1/2
flow: 40 l / min oil temperature: -15 ° C to + 80 ° C
Comparative no .: 2P40-1-A1 (2x) GKZ1
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
Ports thread
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
The task of the hydraulic distributor is to control the flow of oil in the hydraulic system to a given receiver. Our products are of one-piece construction and can be quickly installed in a variety of simple hydraulic systems.

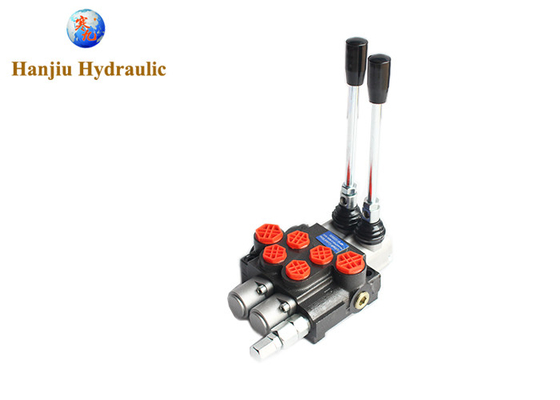

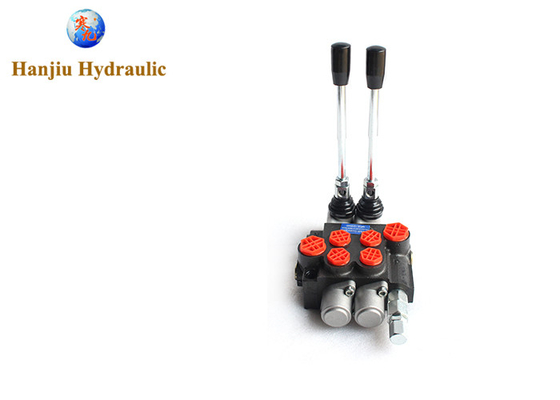

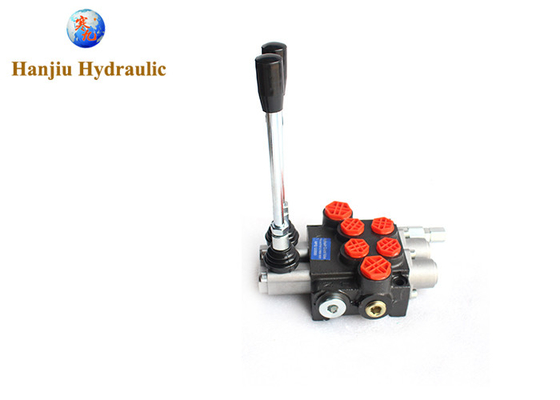

Hanjiu hydraulics, one, two and three parts, flow 40 l/min, with various control combinations: lever, cable and joystick
