| Model No.: | P80 | Warranty: | 12 Months |
|---|---|---|---|
| Spool: | 1cylinder Body | Flow: | 80lit |
| Spool Function: | O/Y/A | Oil Ports: | G3/4,G1/2,3/4-16unf |
| High Light: | manual hydraulic directional flow control valve,mobile hydraulic directional flow control valve,1 spool hydraulic directional control valve |
||

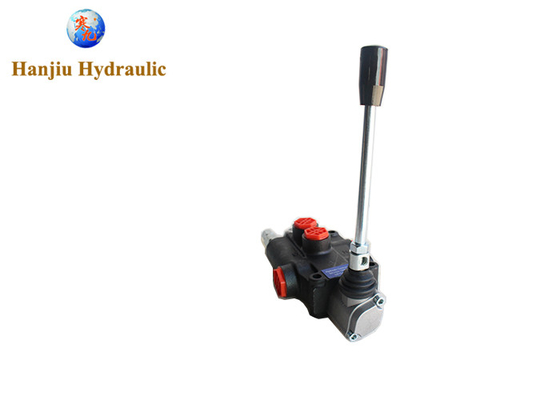

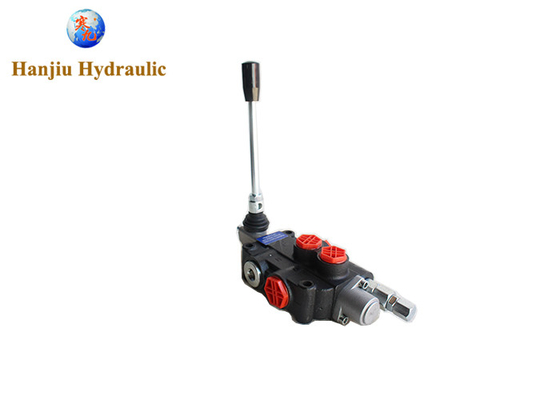

Valve O Hydraulic Manual Command, 1 Cylinder Body 80ltr for mobile hydraulic
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 80 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | 1spool |
How to choose monoblock valves?
P XX-X-X-X-XXX-XXX...-X-X
① ② ③ ④ ⑤⑥⑦ ⑤⑥⑦ ⑧ ⑨
① flow:40,80
② number of sections:1-8
③ relief valve set pressure:100-250bar
④ inlet port size: see table(1)
⑤ control type see table(2)
⑥spool type
⑦spool returing type
⑧work port size see table(1)
⑨outlet port size see table(1)
