Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | 2P40F-OT-QW |
|---|---|---|---|
| Apply To: | Agri Application | Spool: | 2 Spool |
| MAax Operation Pressure: | 250 Bar | Nominal Flow: | 40 Liters |
| High Light: | g 3/8" directional valve,open center spool directional valve,2 spool dcv valve |
||

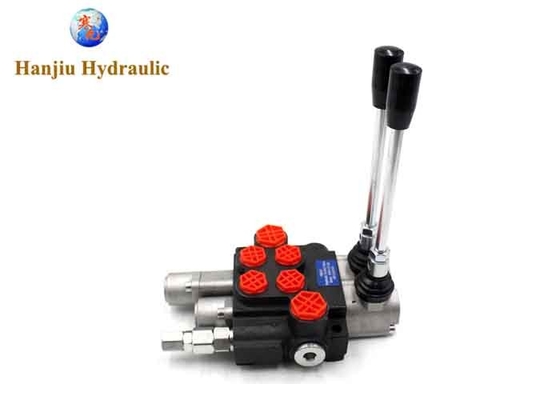

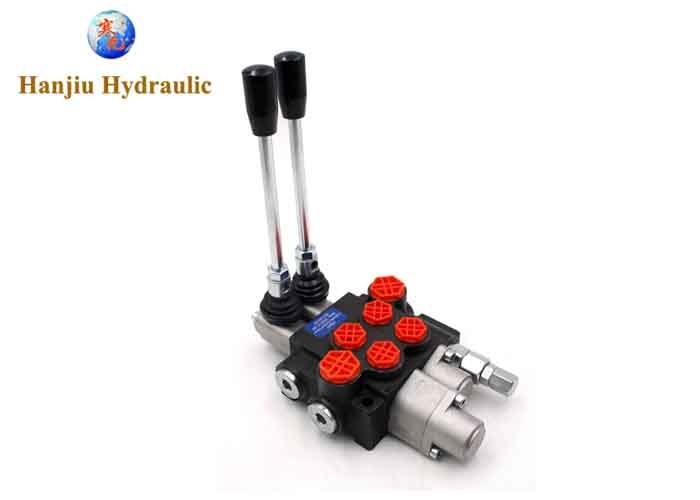

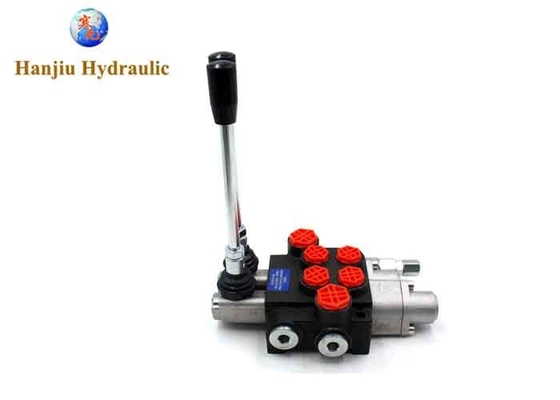

40 liter monoblock control valve, 2P40 , two spools , G 3/8" , open center spool , 2P40F-OT-QW
2P40F-OT-QW
| Flow | 40 liters |
| Spool | cylinder spool |
| Lever | 2 lever |
| Founction | spring return and floating |
| Pressure | Max 250 bar |
More information about the product
Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors.
Directional control valves perform three functions:
Stop fluid flow
Allow fluid flow
Change direction of fluid flow.
There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hanjiu provide monoblock directional control valves with different capacities and spool control options.
Spools are open center “A” spool and single acting “C” spool with spring return. Working port threads (A & B) are G 3/8"
Max. Pressure P: 315 bar, T: 50 bar, A-B: 300 bar
