| Item: | Hydraulic Valves | Model: | 2P40F-OT |
|---|---|---|---|
| Apply To: | Agri Application | Spool: | 2 Spool |
| MAax Operation Pressure: | 250 Bar | Nominal Flow: | 40 Liters |
| High Light: | g 1/2" monoblock directional control valve,two spools monoblock directional control valve,40 liter monoblock valve |
||

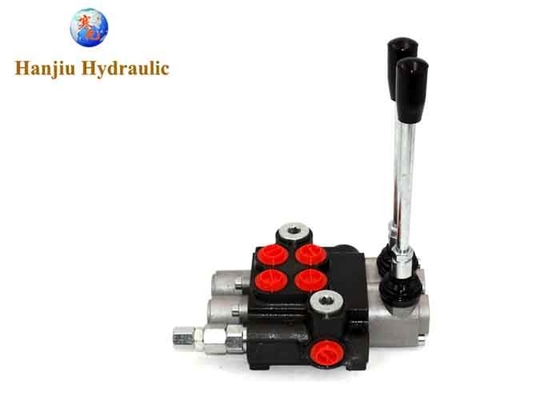

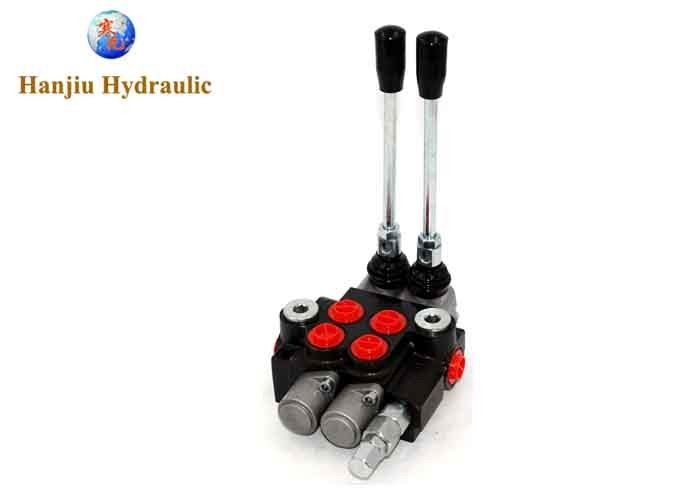

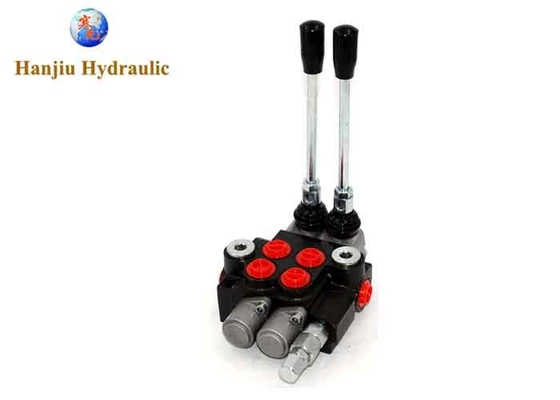

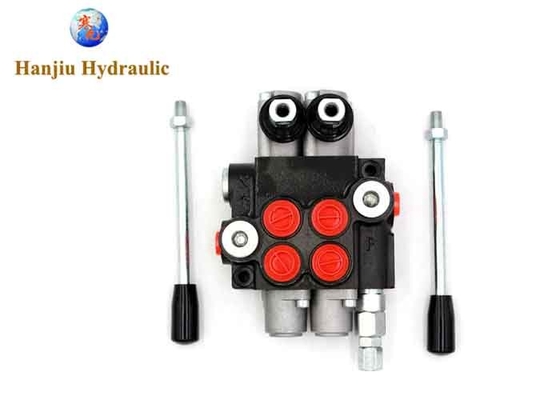

40 liter monoblock control valve, 2P40 , two spools , G 1/2" , open center spool
Max operating pressure P = 3600psi (250 bar); T = 150psi (10 bar); A , B = 4300psi (300 bar)
Tandem center, all spools are double acting with spring return in neutral position
A, B ports 1/2' BSPP; P, T, N ports 1/2' BSPP (British Standard Parallel Pipe, not NPT)
Adjustable relief valve: from 1500 to 3625 PSI
specify if you need special spools, adapters, power beyond etc
Specifications for this item
| Brand Name | Hanjiu |
| Material | Cast Iron |
| Lever of Items | 2 |
| Part Number | 2P40-OT |
Product description
Monoblock hydraulic control valve 2P40-OT has small and compact design for tight installations.
High-tensile strength cast iron monoblock construction.
Precision ground and hard chrome-plated spools assure a long life.
Anti-drop load check on each spool.
Vertical or horizontal handle mount.
SPECIFY IF YOU NEED ADDITIONAL OPTIONS
