Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | 3P40 |
|---|---|---|---|
| Apply To: | Agri Application | Spool: | 3 Spool |
| MAax Operation Pressure: | 250 Bar | Nominal Flow: | 40 Liters |
| High Light: | 40 liter monoblock directional control valve,three spools monoblock directional control valve,g 3/8" monoblock valve |
||

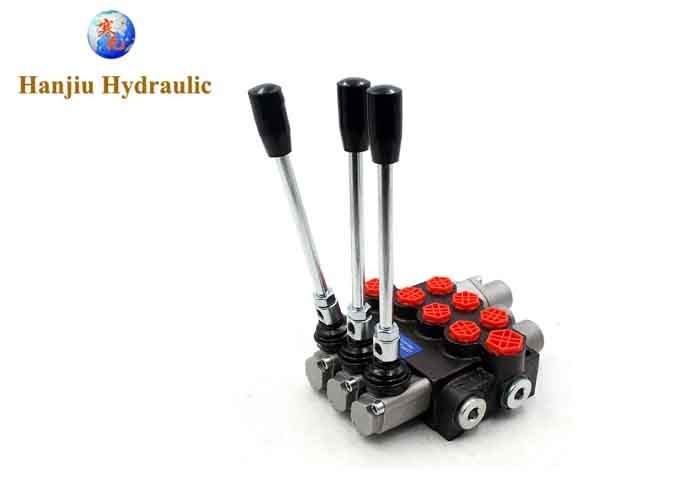

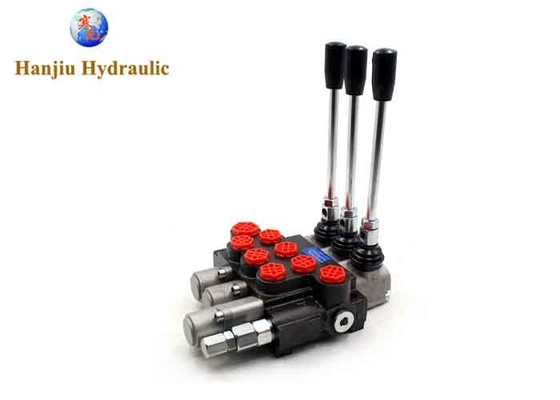

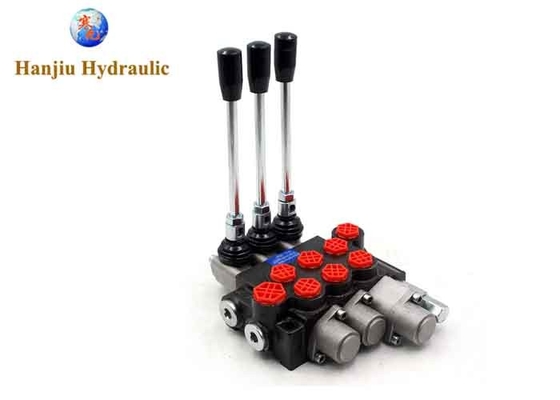

40 liter monoblock control valve, 3P40 , three spools , G 3/8" , open center spool
Hydraulic Directional Valve, 3 Number of Spools - Hydraulic Valves, Valve Ways and Positions 4-Way/3-Position, Spool Action Spring Center To Neutral, Max. Flow - Hydraulic Valves 10.6 gpm, Inlet Port Size - Hydraulic Valves 1/2'' BSP, Outlet Port Size - Hydraulic Valves 1/2'' BSP, Max. Pressure - Hydraulic Valves 3,625 psi, Tandem Center, Work Port Size - Hydraulic Valves 3/8/'' BSP , Relief Valve Range (PSI) 1500 to 3625, Length (In.) 7 1/2 in, Height (In.) 2 23/64 in, Width (In.) 6 1/2 in
Specification
| Serie | 3P40 |
| Number of Spool | three spools |
| Ports | G 3/8" |
| Spool Type | open center spool |
| Working Flow Rate | 40 L/min |
| Max. Pressure | 300 bar |
Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components. P40 series are monoblock directional control valves and manufactured with up to seven levers.
