| Item: | Hydraulic Valves | Model: | DCV60, DCV100, DCV140, DCV200 |
|---|---|---|---|
| Apply To: | Construction Application | Spool: | 1 - 12 Spool |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 60 Lpm, 100 Lpm, 140 Lpm, 200 Lpm |
| High Light: | dcv60 monoblock hydraulic directional control valve,1 spool monoblock hydraulic directional control valve,dcv100 directional control valve in hydraulic system |
||

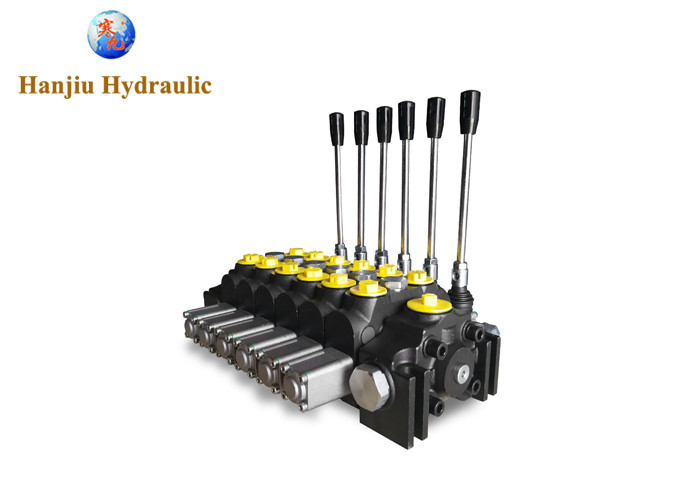

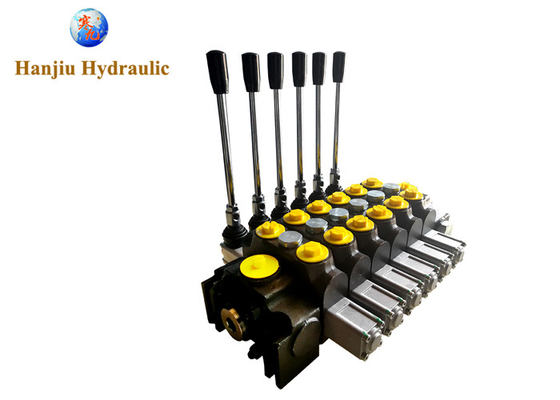

DCV Directional Control Valve (DCV60 series & DCV100 & DCV140 Series & DCV 200 Series)
Sectional Directional Valve
DCV Series (DCV60 series & DCV100 & DCV140 Series & DCV200 Series)
• Sectional types with 1 to 12 working sections
• Nominal diameter: G1/2; G3/4
• Selective spool functions: O, W etc
• Joining port: L (screw connection)• DCV100 series operation methods: pneumatic control; electrical + pneumatic
• DCV60 series operation methods: pneumatic control; electrical + pneumatic

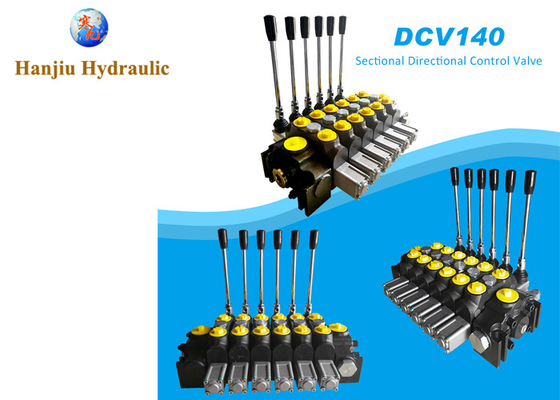

• DCV140 series flow: 100l/min, max 140l/min with pressure up to 315bar
• DCV100 series flow: 80l/min, max 100l/min with pressure up to 315bar
• DCV60 series flow: 50l/min, max 60l/min with pressure up to 315bar
• Model examples: DCV100-4OQ; DCV60-20W.2OT;
DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.
Please send the model and specification you need, and we will provide you with the best hydraulic control valve to match your application and your market according to your needs.
