| Item: | Hydraulic Valves | Model: | DCV200S-3-20T-0W |
|---|---|---|---|
| Apply To: | Construction Application | Spool: | 3 Spool |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 200 Lpm |
| High Light: | construction hydraulic directional control valve,315 bar hydraulic directional control valve,315 bar monoblock directional control valve |
||

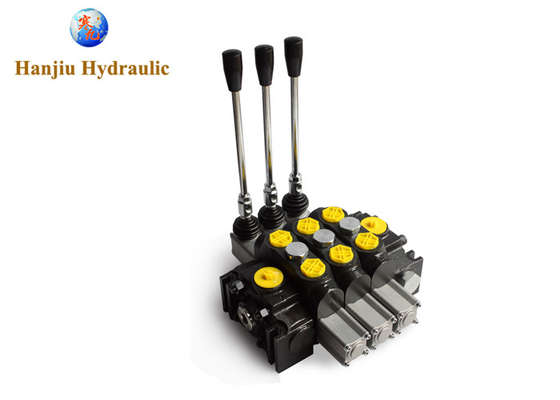

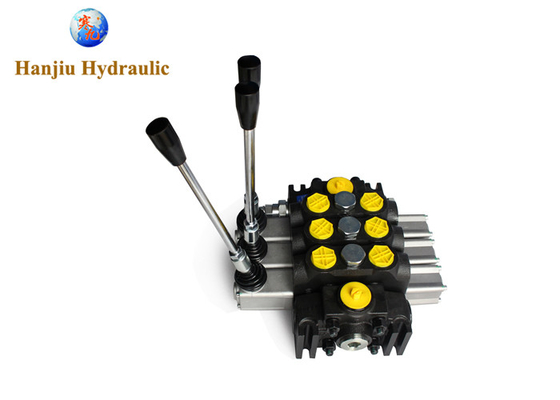

DCV200S-3 directional valve with series circuit, working pressure up to 315 BAR

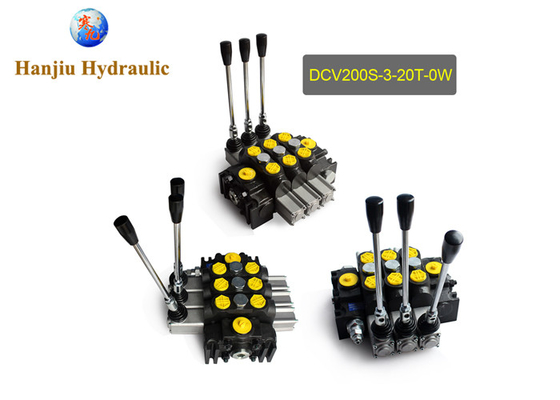

DCV200S-3-20T-0W
| Model | DCV200S-3-20T-0W |
| Flow | 200 lpm |
| Spool | 3 spool |
| Relief valve setting pressure | 200 bar |
| Founction | Spring return and Detent |
DCV200 DIRECTIONAL CONTROL VALVES; FOR FLOWS UP TO 200 LPM AND WORKING PRESSURES UP TO 315 BAR
Linear Actuation Valves and Components
1/2" NPTF Ports
3/4" NPTF Ports
SPRING RETURN AND DETENT OPTIONS
These 200 LPM manual spool valves are available with an externally adjustable pressure relief valve on all but the closed center models. NOTE: The maximum recommended flow rate for the internal relief valve at 315 bar 200 LPM.
If not customer specified, assemblies are automatically furnished with relief set at 200 bar. For units without a relief valve function, please consult our factory.
CAUTION: Relief valve pressure adjustments should not be made while the system is under pressure.
