Galtech Q75 2 Banks Hydraulic Monoblock Valve 1/2" 3/4" Ports Double Acting Spools

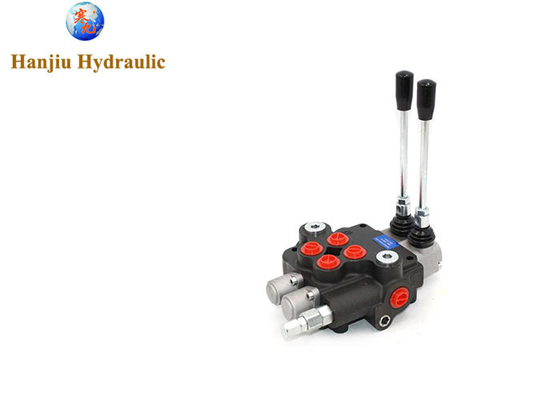

Large Image : Galtech Q75 2 Banks Hydraulic Monoblock Valve 1/2" 3/4" Ports Double Acting Spools

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	2P48F-OT

Payment & Shipping Terms:

Minimum Order Quantity:	100 Sets
Price:	Contact the seller to get a quote
Packaging Details:	Carton, Box, Pallets
Delivery Time:	25 - 35 work days
Payment Terms:	L/C, T/T, Western Union, Western Union
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Item:	Hydraulic Valves	Model:	Q75
Apply To:	Tractor Attachment	Spool:	2 Spool
MAax Operation Pressure:	250 Bar	Nominal Flow:	80 Liters
Highlight:	galtech q75 hydraulic monoblock valve , 2 banks hydraulic monoblock valve , double acting monoblock spool valve

Galtech Q75 2 banks hydraulic monoblock valve with 1/2" & 3/4" Ports & Double Acting Spools

2P80F-OT = Q75/2F1SN103A1M1F3D

Flow	80 liters
Spool	cylinder spool
Lever	2 lever
Founction	spring return
Pressure	Max 250 bar

Special High Resistance Cast Iron Body
Suitable for High Working Pressures up to 250 Bar
Standard Circuit in Parallel Allows Simultaneous Operations
Interchangeable Spools
Comes Complete with Nickel Plated Double Acting Spool (Other Spools on Request)
3 Position Spring Centred Lever Assembly (Other Controls on Request)
1/2" A, B,/ P, T Ports & 3/4"
80 L/min Max Flow
Working Temperature: -30 to 80°C
3 x 11mm Mounting Holes
Dimensions: 180mm Length x 232mm Height x 74mm Height
Weight: 7.60 Kg

Other spool and control configurations are available on request, please contact us for details.

More information about the product

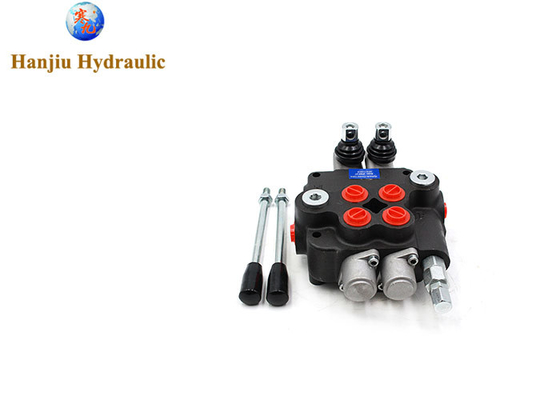

Galtech Q75 2 Banks Hydraulic Monoblock Valve 1/2" 3/4" Ports Double Acting Spools 0

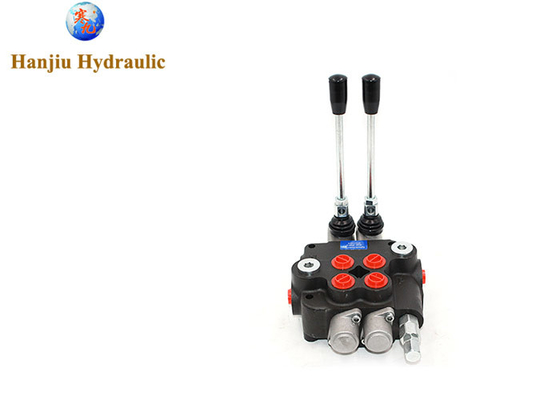

Galtech Q75 2 Banks Hydraulic Monoblock Valve 1/2" 3/4" Ports Double Acting Spools 1
