Product Details:
Payment & Shipping Terms:
|
| Features: | Compatible With Parker Tg | Type: | Torqmotor |
|---|---|---|---|
| Manufacturer: | HANJIU | Model: | TG0300 |
| Displacement: | 300 Ml/r | Flow Rate: | 80 Lpm Cont. |
| High Light: | Vehicle Traction Drives Gerotor Hydraulic Motor,TG0300 Gerotor Hydraulic Motor,Vehicle Traction Drives Parker Gerotor Motor |
||
Parker TG Series Motor - TG0300, SAE "A" 4-hole Magneto Mount for Vehicle traction drives
This is a Parker TG series replacement motor, 100% compatible with TG0300 in fort, fit and function.
Suitable for customers who want to reduce costs while retaining the performance of Parker motors
Here are the technical informations:
| Parker Model No. | TG0300 |
| Hanjiu Model No. | BMER-2-300-MSX-SW-R |
| Flange & Port |
4-Ø13.5 Magneto Mount,Pilot Ø82.55×2.8,
Ports 7/8-14 O-ring
|
| Shaft |
Shaft Ø25.4 ,splined key SAE 6B
|
| Rotation | Counter clockwise |
|
Max. speed (rpm)
|
250
315
|
|
Max. torque (N•m)
|
810
930
1120
|
|
Max. output (kW)
|
18.0
21.0
|
|
Max. flow (L/min)
|
80
95
|
Some of our customers use this for Vehicle traction drives, also some customers use this on Aerial Work Platforms as boom rotate function, Winches, Conveyors, Grapples and others.

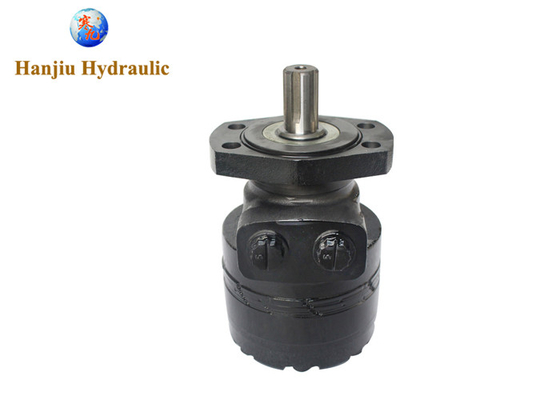

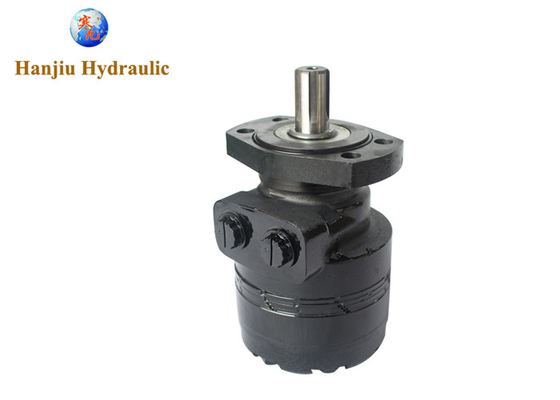

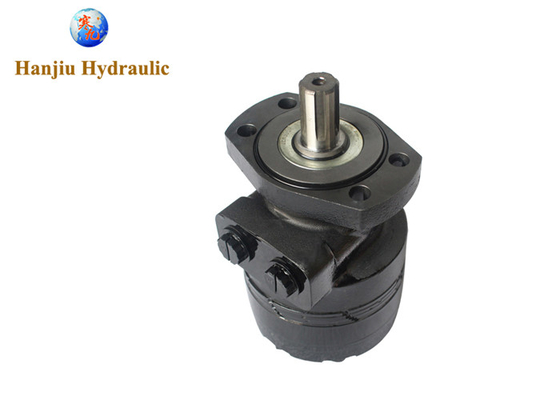

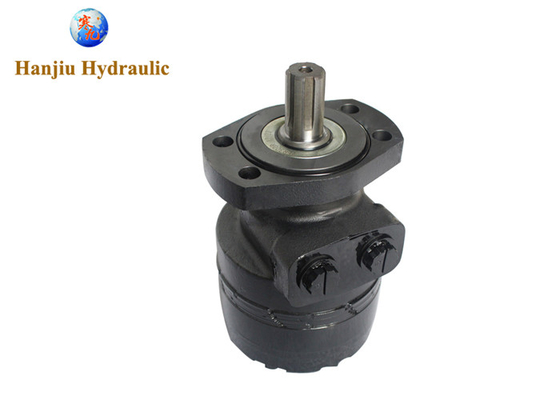

Please see pictures for details.
Except Parker TG series, we also have TB, TC, TJ, TF, TE series. Here are more examples.
Please double check my information and feel free to contact me with any questions or comments
We will do our best to meet your requirements at the best possible price and lead time.
