Product Details:
Payment & Shipping Terms:
|
| Features: | Compatible With Danfoss | Type: | Low Speed High Torque Motor |
|---|---|---|---|
| Manufacturer: | HANJIU | Model: | OMS 160 |
| Displacement: | 160 Ml/r | Flow Rate: | 75 Lpm Cont. |
| High Light: | OMS160 Low Speed High Torque Motor,Vehicles Low Speed High Torque Motor,OMS160 High Torque Low Rpm Motor |
||
OMS 160 Low Speed High Torque motor, Geometric Displacement 159.7 cm3, for vehicles with greater loads and pressure drop
Quick view of OMS 160:
| Hanjiu Model No. | OMS 160 |
| Displacement | 160 CM3/R |
| Flange |
4 -Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3
|
| Port Position |
7/8-14UNF O-ringˈ 7/16-20 UNF
|
| Shaft |
Shaft Ø31.75, Splined key 14-DP12/24
|
| Rotation | Left and Right |
|
Max. speed (rpm)
|
470
560
|
|
Max. torque (N•m)
|
485
590
|
|
Max. flow (L/min)
|
75
90
|
Suitable for customers who want to reduce costs while retaining excellent performance motors
Reseller: If you’re a importer, distributor, OEM, you may qualify for reseller discount.
Some of our customers use this for vehicles with greater loads and pressure drop, also some customers use this on Construction equipment, Agricultural equipment, Forestry equipment, Lawn and turf equipment, Special purpose, Machine tools and stationary equipment, Marine equipment

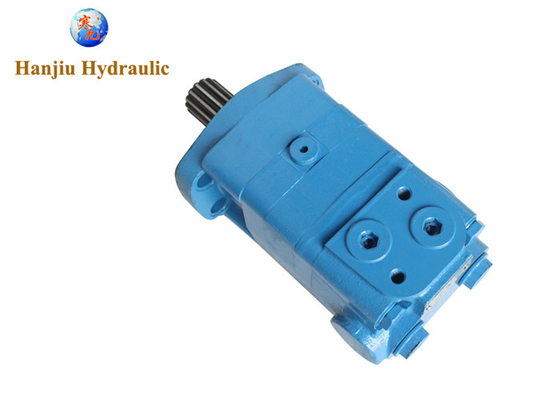

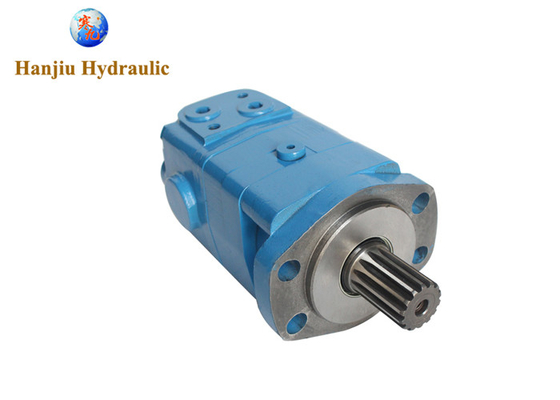

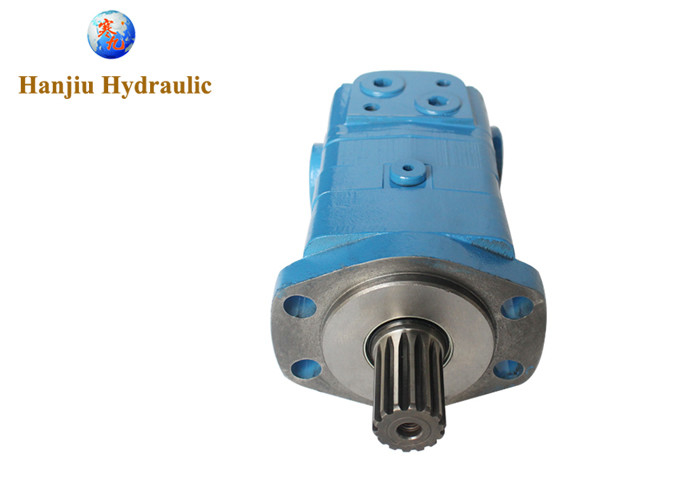

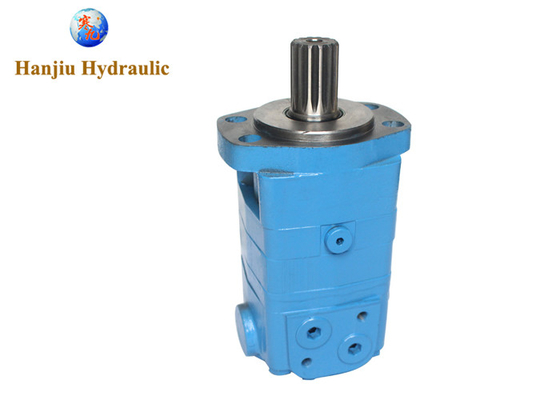

Please see pictures for details.
Except OMS, we also have OMM, OMP, OMR, OMH, OMS, OMT, OMV series. Here are more examples.
