Bmt Hydraulic Power Solutions For Crushers / Screens / Stackers Hydraulic Components Parts

Bmt Hydraulic Power Solutions For Crushers / Screens / Stackers Hydraulic Components Parts
Bmt Hydraulic Power Solutions For Crushers / Screens / Stackers Hydraulic Components Parts Bmt Hydraulic Power Solutions For Crushers / Screens / Stackers Hydraulic Components Parts Bmt Hydraulic Power Solutions For Crushers / Screens / Stackers Hydraulic Components Parts

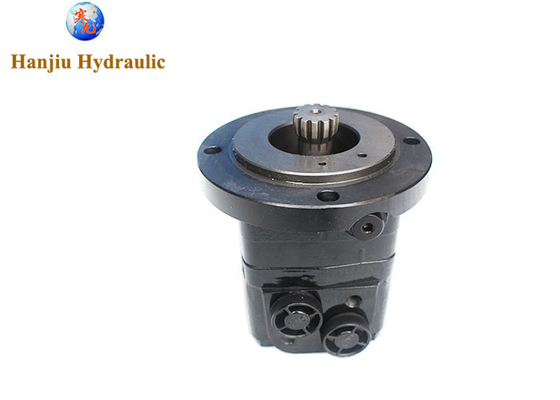

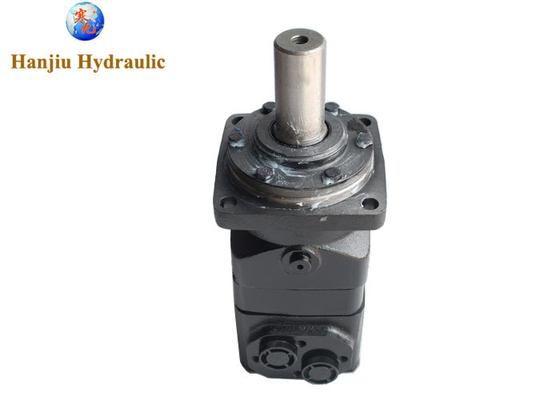

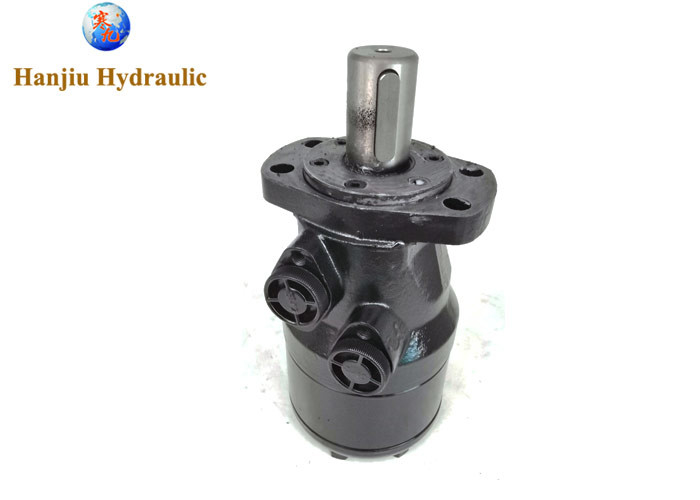

Large Image :  Bmt Hydraulic Power Solutions For Crushers / Screens / Stackers Hydraulic Components Parts

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU CHINA
Certification: CE
Model Number: bmss/bmh/bmt
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: 2pcs/32x32x17cm
Delivery Time: 25 - 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 100000 pieces per year
Detailed Product Description
Product: Disc Valve Hydro Motor Apply To: Crushers,screens,stackers
Warranty: 1year Performance: Original Type
Replace: Danfoss,charlynn Max Speed: Cont.470rpm,int.560rpm
High Light:

bmt hydraulic power solutions

,

crushers hydraulic power solutions

,

screens danfoss power solutions eaton

hydraulic power solutions for crushers,screens,stackers hydraulic components parts



HANJIU hydraulic  supply high quality hydraulic motors, can be widely used on crushers,screens,stackers,

for OEM,Original, replacement and aftermarket



for below  brand



Powerscreen
Rubble Master - Maximus
McCloskey
Terex
Terex Finlay
Terex Pegson
Tesab
Sandvik- Extec



 The main specification


Type BMSY
BMSE
80
BMSY
BMSE
100
BMSY
BMSE
125
BMSY
BMSE
160
BMSY
BMSE
200
BMSY
BMSE
250
BMSY
BMSE
315
BMSY
BMSE
375
Geometric displacement
(cm3 /rev.)
80.6 100.8 125 157.2 200 252 314.5 370
Max. speed (rpm) cont. 800 748 600 470 375 300 240 200
int. 988 900 720 560 450 360 280 240
Max. torque (N·m) cont. 190 240 310 316 400 450 560 536
int. 240 300 370 430 466 540 658 645
peak 260 320 400 472 650 690 740 751
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11.8
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 17
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 10
int. 21 21 21 21 16 16 14 12
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 14
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6



* Continuous pressure :Max. value of operating motor continuously.


* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.


* Peak pressure:Max. value of operating motor in 0.6 second per minute.
