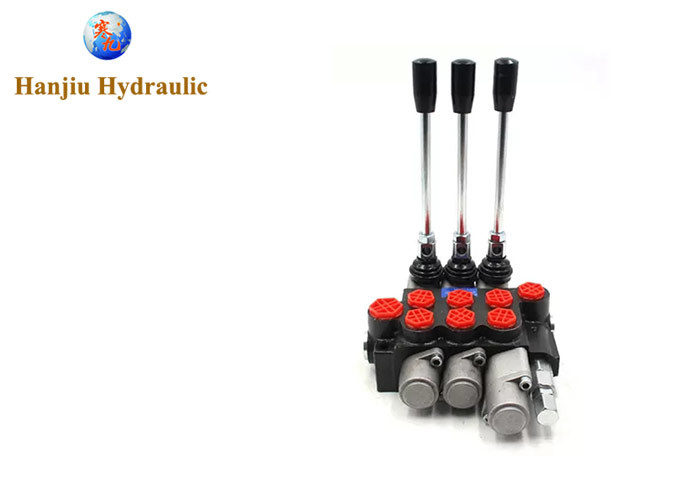

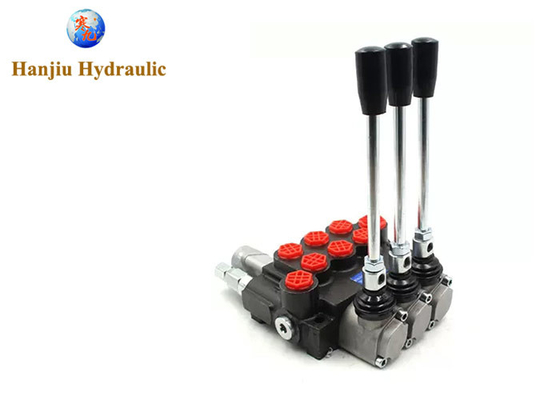

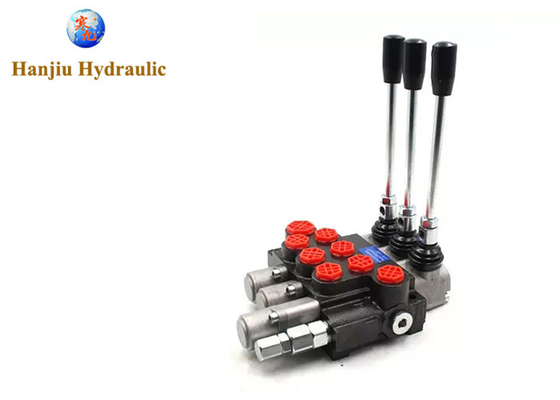

High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve

High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve
High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve

Large Image :  High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: ISO9001:2015
Model Number: 3p80
Payment & Shipping Terms:
Minimum Order Quantity: 30 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Detailed Product Description
Model No.: 3P80 Warranty: 12 Months
Spool: 3SPOOLS Flow: 21GPM
Spool Function: O/Y/A Oil Ports: G3/4,G1/2,3/4-16unf
High Light:

high efficiency hydraulic flow valve

,

4 ways hydraulic flow valve

,

monoblock directional hydraulic flow control valve

high efficiency Hydraulic solutions and sales hydraulic flow valve 4 ways monoblock hydraulic directional valve



Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 250bar
Back pressure 50 bar
Nominal flow 80 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools 3SPOOLS

Specifications
  • Construction = Monoblock
  • Material of Construction = Steel
  • No. of Spools = 3
  • Material of Construction = Hardened Steel
  • O-rings made of NBR (Buna-N®)
  • Max Flow Rate = 80 liters/min (20 Gallons per Minute)
  • Max Working Pressure = 25MPA
  • Spool Type = Cylinder. Motor Spools also available
  • Spool Movement = Floating control, the 4th is detent
  • Built in Relief Valve = Adjustable (factory set at 2500 PSI
This a High Quality Valve and has many outstanding features, including.



built in adjustable relief valve

high performance
high efficiency
small volume
mass flow
leak resistance






  Control type:


High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve 0





High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve 1High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve 2





High Efficiency Hydraulic Flow Valve 4 Ways Monoblock Hydraulic Directional Valve 3







Hanjiu:  a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.



In just 15 years, HANJIU TECHNOLOGY has become one of the market leaders recognized by consumers at home and abroad, and has won many international honors. At the same time, attract more talents, improve the quality of employees, improve product quality, develop more product types, expand sales channels, and improve service effects.
