Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | DCV60, DCV100, DCV140, DCV200 |
|---|---|---|---|
| Apply To: | Construction Application | Spool: | 1 - 12 Spool |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 60 Lpm, 80 Lpm, 100 Lpm, 140 Lpm, 200 Lpm |
| High Light: | dcv80 control valve hydraulic,drilling rig hydraulic directional control valve,dcv80 hydraulic directional control valve |
||

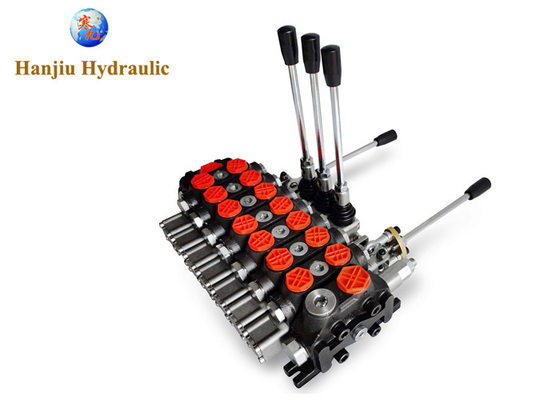

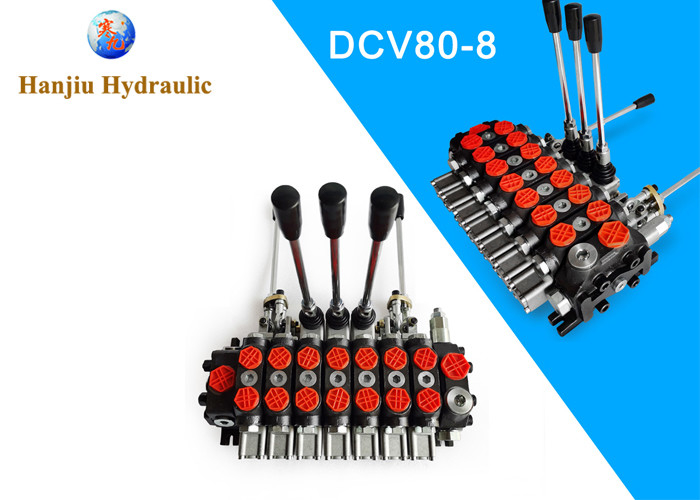

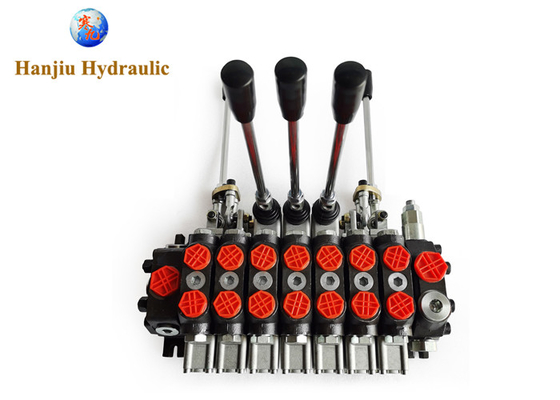

Drilling rig hydraulic solutions hydraulic valve DCV80
We provide drilling rig hydraulic solutions, hydraulic control valve is one of them.
At the same time, we also provide hydraulic solutions for the following equipment, such as cranes, flatbed trucks, special operation vehicles (sanitation trucks, garbage trucks, road sweepers), dump trucks, truck-mounted cranes and other construction machinery.
Welcome to send your needs, contact us to discuss cooperation.
Sectional Directional Valve
DCV Series (DCV60 series & DCV80 & DCV100 & DCV140 Series & DCV200 Series)
• Sectional types with 1 to 12 working sections
• Nominal diameter: G1/2; G3/4
• Selective spool functions: O, W etc
• Joining port: L (screw connection)• DCV100 series operation methods: pneumatic control; electrical + pneumatic
• DCV60 series operation methods: pneumatic control; electrical + pneumatic
• DCV140 series flow: 100l/min, max 140l/min with pressure up to 315bar
• DCV100 series flow: 80l/min, max 100l/min with pressure up to 315bar
• DCV60 series flow: 50l/min, max 60l/min with pressure up to 315bar
• Model examples: DCV100-4OQ; DCV60-20W.2OT;
DCV100-OT-S; DCV60-4OQ; DCV100-2ODQ etc.
Please send the model and specification you need, and we will provide you with the best hydraulic control valve to match your application and your market according to your needs.
