| Item: | Torqmotor | OEM #: | TB0130AS110AAAB |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 130 Ml/r |
| Mounting Flange: | 2-hole | Shaft Type: | 6-B |
| High Light: | tb0130 parker torqmotor,tb series parker torqmotor,parker torqmotor hydraulic motor |
||

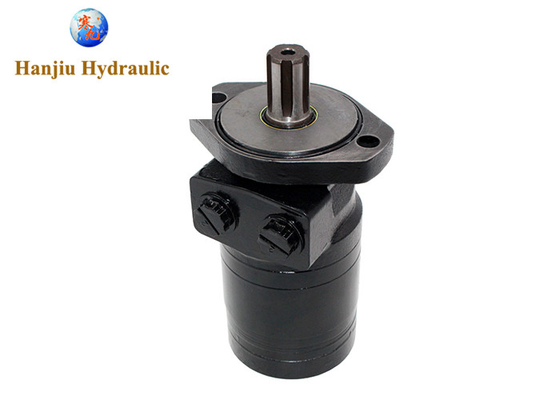

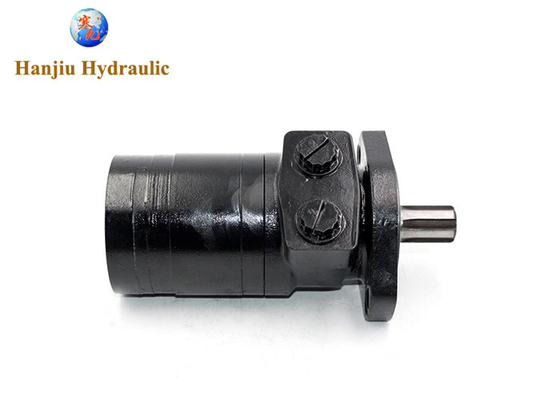

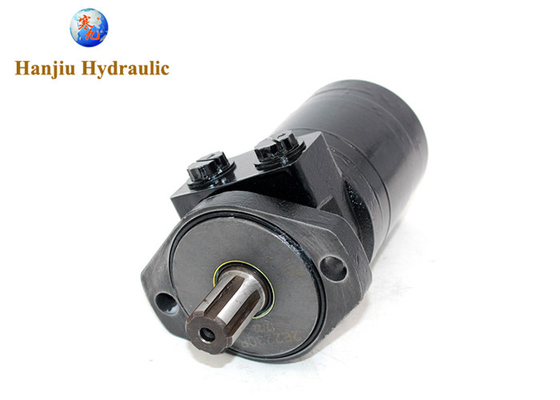

Quick review: Compatible for TB0130AS110AAAB Parker low speed, high torque hydraulic motor. 7.2 cu. in. / rev displacement. Maximum pressure 1840 PSI continuous, maximum pressure 2425 PSI intermittent. Torque 1790 in-lb. continuous, torque 2372 in-lb. intermittent. Maximum speed 475 RPM continuous. Flow rate 15.8 GPM. SAE 6B spline shaft. 7/8-14 SAE ports. 2 Bolt SAE mounting flange.1 year warranty. Small Frame Low Speed, High Torque Motor Details specifications More Parker type Torque motors: TB, TC, TJ, TE, TF, TG, TK TB0130 TB Series Torqmotor, 1" 6B Spline, SAE "A" 2 Bolt, 130 cm3/rev
Manufacturer: Hanjiu
Series:
TB
Shaft:
1" 6B Spline
Rotation:
Standard
Displacement (cm3/rev):
0130
Mounting:
SAE "A" 2 Bolt
Ports:
7/8-14 SAE
Geometric Displacement:
130 cm3/rev (8.0 in3/rev)
Maximum Speed:
430 rev/min
Maximum Oil Flow (continuous / intermittent):
45 lpm (12 gpm) / 57 lpm (15 gpm)
Max. Differential Pressure (continuous / intermittent):
125 bar (1800 PSID) / 165 bar (2400 PSID)
Maximum Supply Pressure:
190 bar (2750 PSID)
Maximum Torque - Continuous / Intermittent:
220 Nm (1951 lb in) / 297 Nm (2632 lb in)
Maximum Performance:
13.4 KW (18.0 HP)
Minimum Starting Torque - Continuous / Intermittent:
167 Nm (1482 lb in) / 229 Nm (2024 lb in)
Maximum Side Load at Key:
4900 N (1100 lb)Shaft Code: 11
