Product Details:
Payment & Shipping Terms:
|
| Item: | Torqmotor | OEM #: | TG0475US080AAAA |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 477 Ml/r |
| Mounting Flange: | Wheel Flange | Shaft Type: | 1 1/4" Tapered |
| High Light: | tg0475 torqmotor hydraulic motor,tg series orbit hydraulic motor,wheel mount torqmotor hydraulic motor |
||

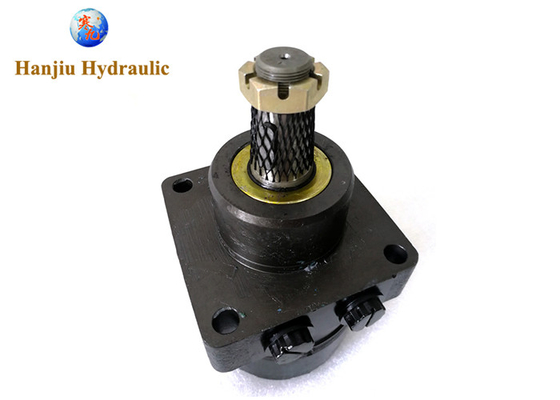

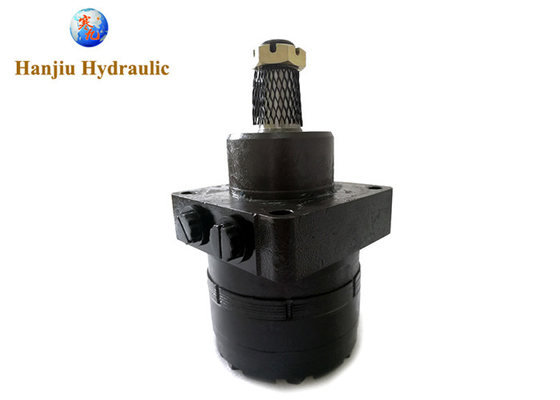

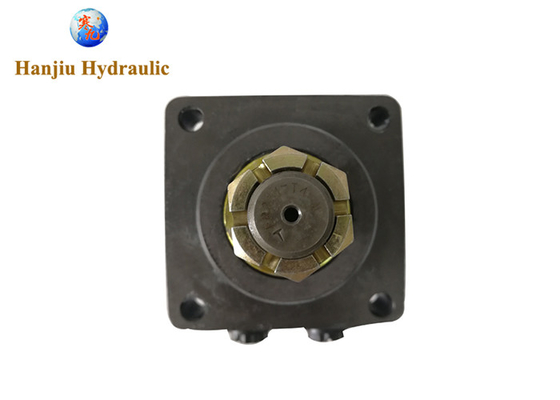

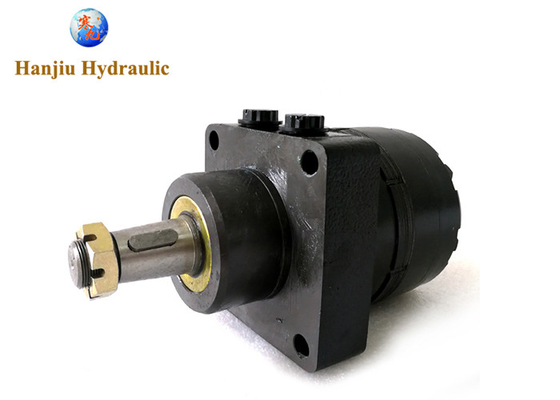

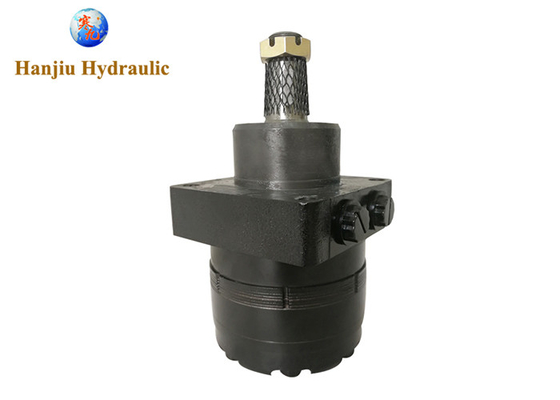

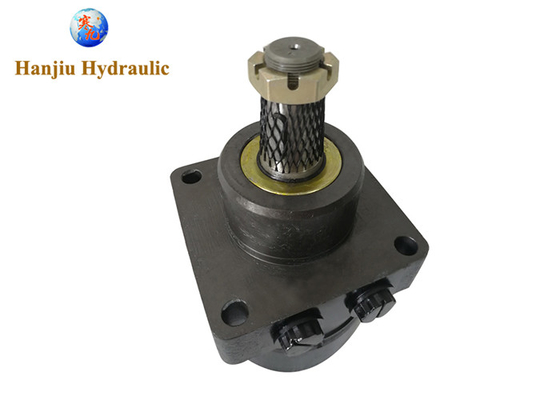

Quick review: Drop in equivalent to Parker TG0475080AAAA hydraulic motor. Low speed, high torque. 28.18 cubic inch displacement. Wheel mount. 1-1/4" tapered shaft with woodruff key. 7/8"-14 SAE ports. 160 RPM maximum speed. 9602 inch lbs. of torque. 19.81 GPM maximum flow rate. 2538 PSI maximum pressure differential. Clockwise rotation. Small Frame Low Speed, High Torque Motor Details specifications More Parker type Torque motors: TB, TC, TJ, TE, TF, TG, TK TG0475 TG Series Torqmotor, 1 1/4" Tapered, Wheel Mount, 477 cm3/rev
Manufacturer: Hanjiu
Series:
TG
Shaft:
1 1/4" Tapered
Rotation:
Standard
Displacement (cm3/rev):
0475
Mounting:
Wheel, Standard
Geometric Displacement:
477 cm3/rev (29.1 in3/rev)
Maximum Speed:
237 rev/min
Maximum Oil Flow (continuous / intermittent):
76 lpm (20 gpm) / 114 lpm (30 gpm)
Max. Differential Pressure (continuous / intermittent):
138 bar (2000 PSID) / 207 bar (3000 PSID)
Maximum Supply Pressure:
300 bar (4350 PSIG)
Maximum Torque - Continuous / Intermittent:
887 Nm (7853 lb-in) / 1372 Nm (12145 lb-in)
Maximum Performance:
28 KW (38 HP)
Minimum Starting Torque - Continuous / Intermittent:
740 Nm (6549 lb-in) / 1120 Nm (9909 lb-in)
Maximum Side Load at Key:
16000 N (3597 lb)
