Product Details:
Payment & Shipping Terms:
|
| Item: | Torqmotor | OEM #: | 501300A3120ZAAAA |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 130 Ml/r |
| Mounting Flange: | 4-hole | Shaft Type: | Key Shaft |
| High Light: | re white hydraulic motors,501 series white hydraulic motors,250 rpm white drive products hydraulic motor |
||

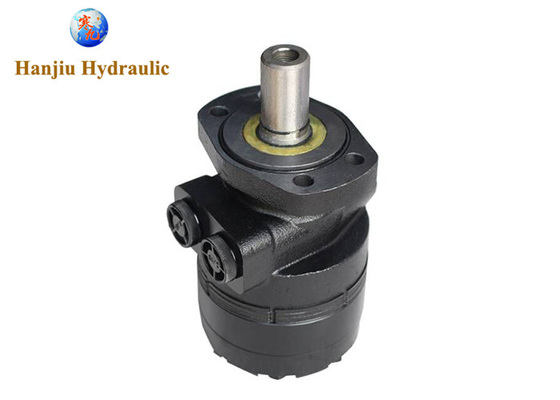

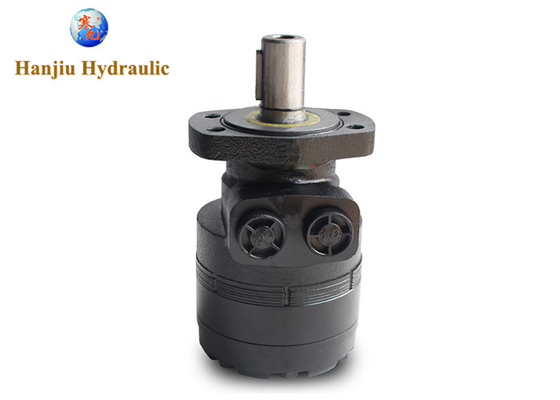

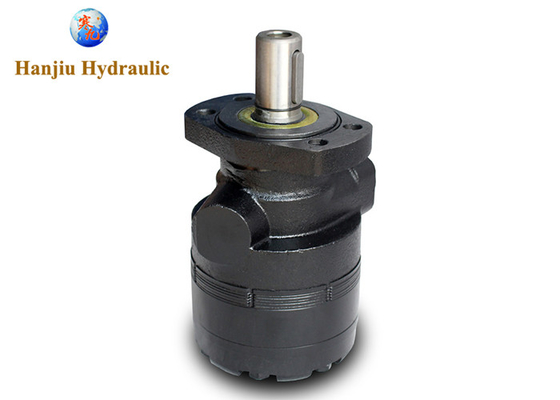

Quick review: Drop in equivalent to White Drive Products 501300A3120ZAAAA hydraulic motor. Low speed, high torque. 18.08 cubic inch displacement. 4-Hole mount. Key shaft. 7/8"-14 SAE ports. 250 RPM maximum speed. 7169 inch lbs. of torque. 19.81 GPM maximum flow rate. 2973 PSI maximum pressure differential. Clockwise rotation. RE Series motors offer the perfect compromise between price and performance by producing power at a reasonable cost. Although these motors perform well in a wide range of applications they are especially suited for low flow high pressure applications. During startup pressure causes the balance plate to flex toward the rotor vastly improving volumetric efficiency. As the motor reaches operating pressure the balance plate relaxes allowing the rotor to turn freely which translates into higher mechanical efficiencies. Torque is transmitted to the output shaft through the most durable drive link in its class. Small Frame Low Speed, High Torque Motor Details specifications More Parker type Torque motors: TB, TC, TJ, TE, TF, TG, TK White Drive, RE Motor, 501 Series, 4-hole mount, key shaft, 250 RPM maximum speed
Manufacturer: Hanjiu
Series:
RE
Shaft:
Key shaft
Rotation:
Clockwise rotation
Displacement (cm3/rev):
18.08 cubic inch
Mounting:
4 Bolt
Geometric Displacement:
130 cm3/rev (8.0 in3/rev)
