Product Details:
Payment & Shipping Terms:
|
| Product Name: | ORBIT GEAR MOTOR | Displacement: | 200CC |
|---|---|---|---|
| Applications: | Agricultural Machine, Drilling Rig | Replacement: | Danfoss Oms |
| Oil Temperature: | Normal-30℃-90℃ | Shaft: | Splined Shaft |
| High Light: | oms 200 hydraulic gear motor,high speed hydraulic gear motor,oms200 high speed hydraulic gear motor |
||

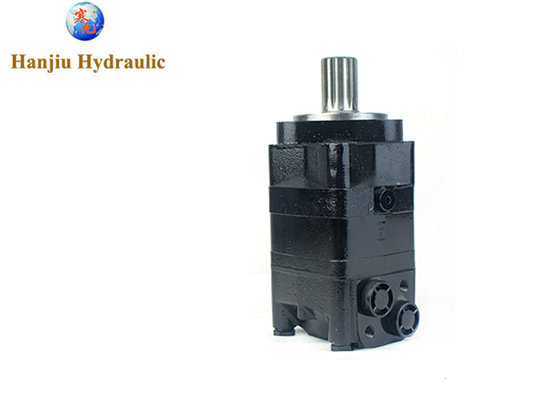

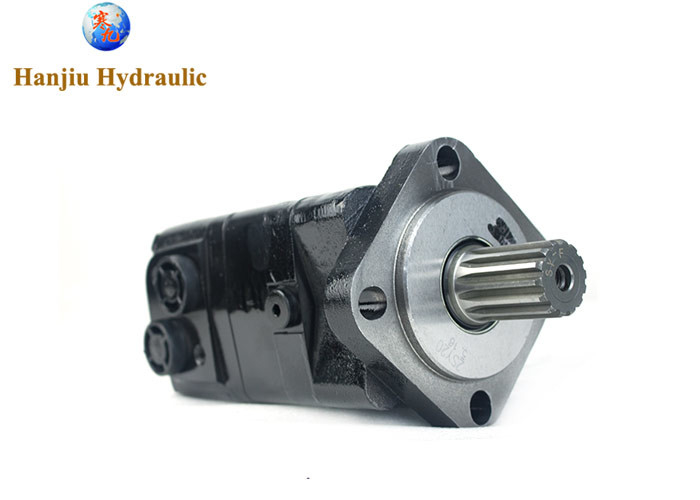

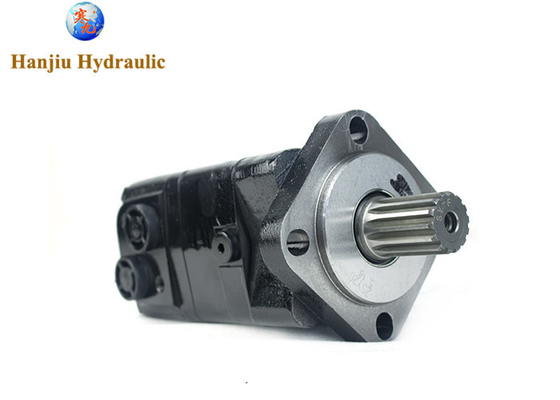

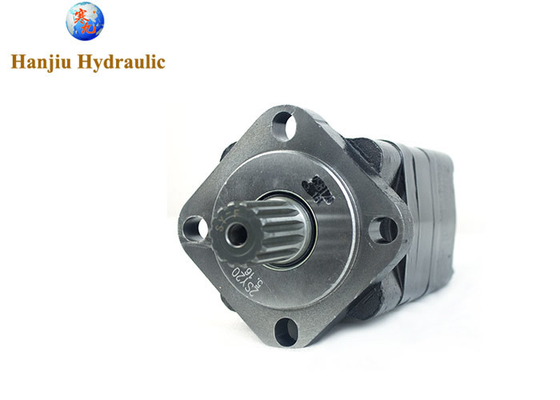

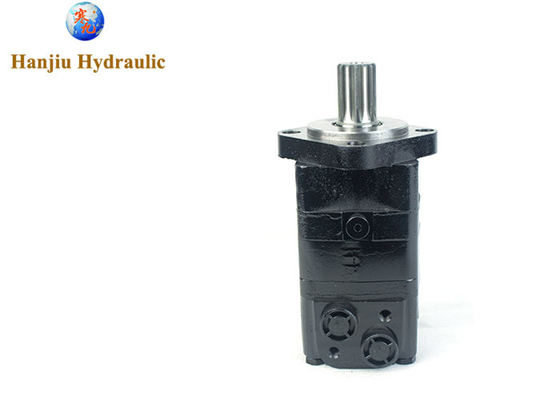

Reduce Pressure Energy loss in Oms 200 Hydraulic Motor orbit gear motor
Main Specifications:
| Type | BMSY 80 |
BMSY 100 |
BMSY 125 |
BMSY 160 |
BMSY 200 |
BMSY 250 |
BMSY 315 |
BMSY 400 |
BMSY 475 |
|
| Geometric displacement (cm3 /rev.) |
80.6 | 100.8 | 125 | 157.2 | 200 | 252 | 314.5 | 394 | 475 | |
| Max. speed (rpm) | cont. | 800 | 748 | 600 | 470 | 375 | 300 | 240 | 185 | 155 |
| int. | 988 | 900 | 720 | 560 | 450 | 360 | 280 | 225 | 185 | |
| Max. torque (N·m) | cont. | 190 | 240 | 310 | 316 | 400 | 450 | 560 | 880 | 910 |
| int. | 240 | 300 | 370 | 430 | 466 | 540 | 658 | 980 | 990 | |
| peak | 260 | 320 | 400 | 472 | 650 | 690 | 740 | 751 | 760 | |
| Max. output (kW) | cont. | 15.9 | 18.8 | 19.5 | 15.6 | 15.7 | 14.1 | 14.1 | 11 | 9 |
| int. | 20.1 | 23.5 | 23.2 | 21.2 | 18.3 | 17 | 18.9 | 12 | 11 | |
| Max. pressure drop (MPa) | cont. | 17.5 | 17.5 | 17.5 | 15 | 14 | 12.5 | 12 | 16 | 14 |
| int. | 21 | 21 | 21 | 21 | 16 | 16 | 14 | 19 | 15 | |
| peak | 22.5 | 22.5 | 22.5 | 22.5 | 22.5 | 20 | 18.5 | 21 | 17.5 | |
| Max. flow (L/min) | cont. | 65 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| int. | 80 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
| Max. inlet pressure (MPa) | cont. | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| int. | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | |
| Weight (kg) | 9.8 | 10 | 10.3 | 10.7 | 11.1 | 11.6 | 12.3 | 12.6 | 14.3 | |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
During the use of the motor, there are many situations that will cause the loss of pressure energy, so how is this loss caused, and how can we avoid these losses? In today's article, we take oms hydraulic orbit motor as an example to share some knowledge about this issue
Start from the inside first, reducing power loss while reducing pressure loss inside the system. To solve this problem, the pressure loss of the internal flow channel of the component can be improved, and the integrated circuit and casting flow channel can be used. At the same time, it is also necessary to reduce or eliminate the throttling loss of the system, minimize the overflow required for non-safety, and avoid using a throttling system to adjust flow and pressure.
In the use of materials, materials manufactured by static pressure technology and new sealing materials can be used, which can effectively reduce friction loss. Maintenance during use is essential. Maintain hydraulic motors in time to prevent pollution from affecting the life and reliability of the motor. New pollution detection methods must be developed to measure pollution online. It must be adjusted in time, and lag is not allowed, so as to avoid Losses caused by untimely processing.
In order to reduce the loss of pressure energy, the hydraulic motor needs the joint efforts of manufacturers and consumers, so that the loss of pressure energy can be prevented to the greatest extent.
HANJIU TECHNOLOGY has many years of experience in the manufacture and maintenance of motors, serving many countries around the world.We produce various types of motors such as OMH, OMS,OMR etc. You are welcome to visit our factory.
