Product Details:
Payment & Shipping Terms:
|
| Product: | Crushers, Screens, Quarry Mining Machinery | Type: | Charlynn 6000 Series |
|---|---|---|---|
| Flange: | 4 Bolts Square Flange | Shaft: | Key Shaft |
| Displacement: | 500cc | Max Speed: | Cont.304/int.455rpm |
| High Light: | crushers charlynn 6000 series motor,112-1098-006 charlynn 6000 series motor,quarrying 6000 series char lynn motor |
||

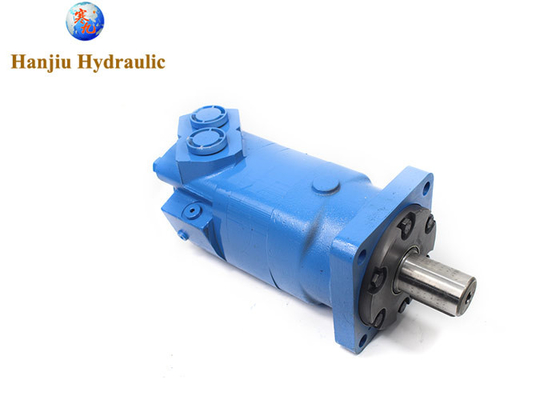

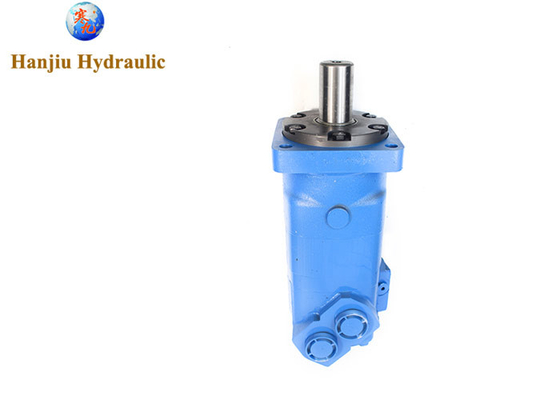

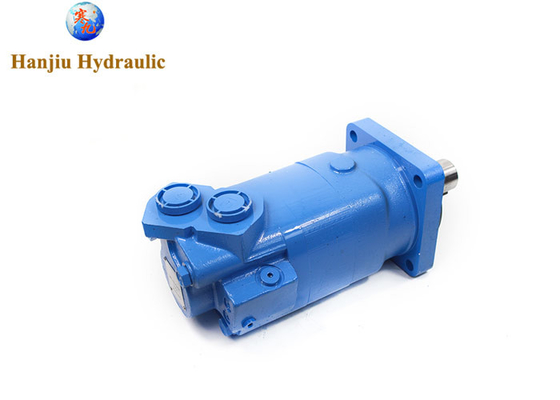

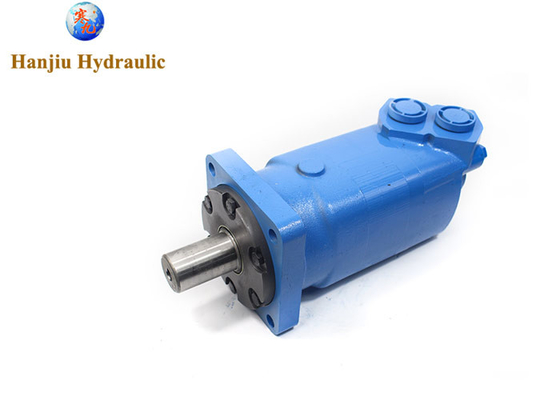

Hanjiu technology supply the valued hydraulic orbit motors for crushers, screens,and other quarrying mining machinery
the high torque low speed motors have perfect performance, especially for the OEM market.
Product details
order type:BMK6
Flange:4 bolts square flange
shaft:key shaft:40mm
ports:G1/2,7/8-16unf
fit:quarrying and mining machinery
quality:aftermarket OEM quality
Main Specifications:
| Type |
BMK6 200 |
BMK6 250 |
BMK6 315 |
BMK6 400 |
BMK6 500 |
BMK6 630 |
BMK6 800 |
BMK6 1000 |
||
| Geometric displacement (cm3 /rev.) |
195.6 | 246.1 | 311.6 | 391.3 | 490.8 | 623 | 802.4 | 981.6 | ||
| Main speed(rpm) | cont. | 765 | 610 | 480 | 382 | 304 | 240 | 186 | 152 | |
| int. | 865 | 830 | 690 | 570 | 455 | 360 | 280 | 230 | ||
| Max torque N.M | cont. | 565 | 710 | 920 | 1160 | 1445 | 1480 | 1580 | 1675 | |
| int. | 840 | 1080 | 1325 | 1625 | 1880 | 1890 | 1880 | 1860 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | 20 | 17.5 | 14 | 14 | |
| int. | 30 | 30 | 30 | 30 | 27.5 | 22.5 | 15.5 | 14 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | 28.8 | 29.6 | 30.5 | 32 | ||
HANJIU TECHNOLOGY has professional core technology and high -quality R & D team. All hydraulic motors are independent research and development. More than 100 products developed. , So its quality is very guaranteed. Moreover, its application fields are very widely used, and it is the core component of other fields such as the automotive field, medical field, aerospace, agriculture, and other fields. It is also a hydraulic motor manufacturer and long -term supplier. Customers can provide relevant specifications and models for customized purchases.
The hydraulic orbital motor is one of the products in the series of products of HANJIU TECHNOLOGY. It is mainly used in the construction, mine, metallurgical, and ship machinery, and some of the heavy industries that master the lifeblood of our country. Even the transportation such as the subway we usually sit using the hydraulic rail motor. I have to say that the hydraulic motor really exists in all aspects of our lives and is an indispensable part of our lives.
The hydraulic rail motor can be used in such an important field, which shows that it has very high value.HANJIU TECHNOLOGY produced by hydraulic rail motors is very cost -effective. During the work process, not only is efficient, but also compared with traditional motors, it has less energy consumption, light weight, low inertia, and low cost. The most important thing is safety. High, no matter what kind of environment, its load capacity is super strong and has a long service life. At the same time, users do not need to consider the problem of hydraulic oil, because it is completely applicable to different hydraulic oils.
HANJIU TECHNOLOGY, as producers and leaders of the hydraulic motor industry, has always exerted the power of role models. It is committed to serving the majority of consumers and focusing on consumer experience. Therefore, the price of hydraulic motors produced is very friendly, much lower than the hydraulic motor on the market, and the quality is also very guaranteed. It is simply material. Value. In addition, it also has a cooperative relationship with many countries and is a stable hydraulic motor supplier.
If you want to buy a super -cost -effective hydraulic motor, HANJIU TECHNOLOGY is your best choice, you can choose various styles. Good quality, affordable price, fast logistics speed, and guarantee of after -sales service and maintenance.
