| Item: | Orbital | OEM #: | OMS |
|---|---|---|---|
| Manufacturer: | Hanjiu | Displacement: | 80 - 500 Ml/r |
| High Light: | corrosion resistant hydraulic winch motor,rescue boat system hydraulic winch motor,rescue boat system winch hydraulic motor |
||

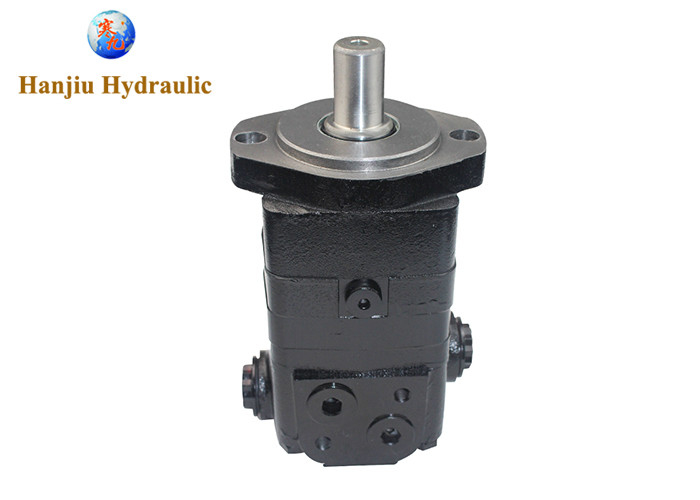

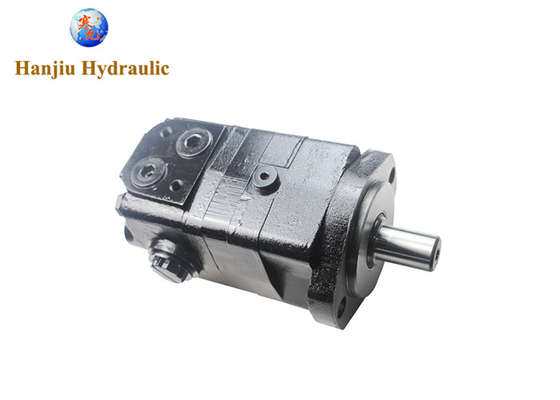

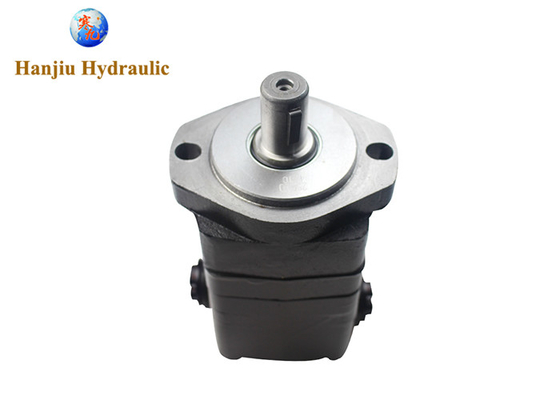

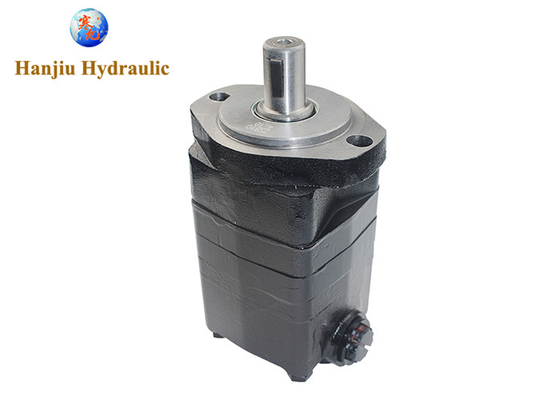

Hydraulic Winch Motor Corrosion resistant treated apply to rescue boat winch hydraulic system
Hydraulic Motor
DESCRIPTION
We provide solutions for hydraulic winch hydraulic system.
He has rich experience in the field of fishing winch.
Welcome to contact us for consultation.
BMSY is an compatible option for OMS Hydraulic motor.
It's popular between Danfoss dealers and users, with excellent performance and competition on price.
Main Specification
| Type | Geometric displacement (cm3 /rev.) |
Max. speed (rpm) |
Max. torque (N•m) |
Max. output (kW) |
Max. pressure (MPa) |
Max. flow (L/min) |
Max. inlet pressure (MPa) | Weight (kg) | |
|
BMS BMSY BMSYS 200 |
194 | cont. | 375 | 485 | 18.1 | 21 | 75 | 25 | 11.1 |
| int. | 450 | 590 | 24 | 25 | 90 | 30 | |||
| peak | -- | -- | -- | 27 | -- | -- |
| Main Specifications: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
* Continuous pressure :Max. value of operating motor continuously. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BMSY new series motor adapt the advanced Geroler gear set designed with disc distribution flow and high pressure.The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Characteristic featutres:
* Advanced manufacturing devices for the Geroler gear set, which use low pressure of start-up, provide smooth and reliable operation and high efficiency.
* The output shaft adapts in tapered roller bearings that permit high axial and radial forces. The can offers capacities of high pressure and high torque in the wide of applications.
* Advanced design in disc distribution flow, which can automatically compensate in operating with high volume efficiency and long life , provide smooth and reliable operation.
* The new series motor is suitable for vehicles with greater loads and pressure drop.
