Omr X 100cc Gerotor Hydraulic Motor 25mm Key Shaft End Ports

Name: Omr X 100cc Gerotor Hydraulic Motor 25mm Key Shaft End Ports
Brand: HANJIU
SKU: OMPX100
Price: 47 USD
Availability: InStock
Rating: 4.5 (103 reviews)

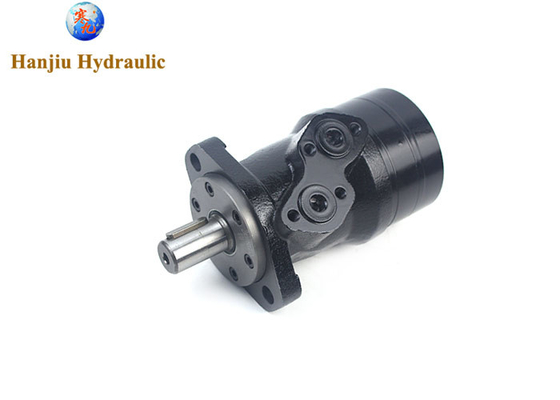

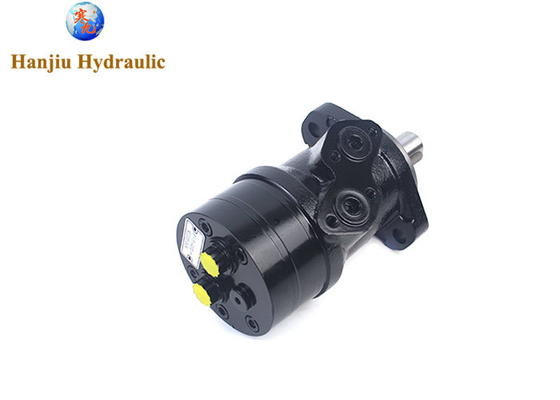

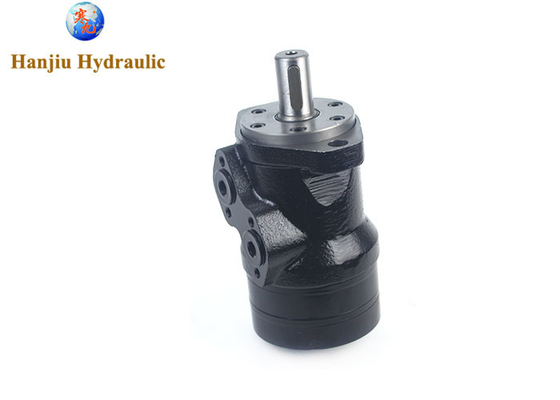

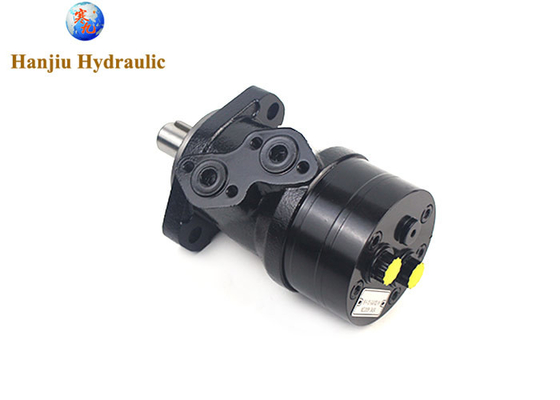

Large Image : Omr X 100cc Gerotor Hydraulic Motor 25mm Key Shaft End Ports

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	OMPX100

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	47 - 60 usd
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Type:	Geroler And Gerotor Motor	Model No.:	BMR100
Max Speed:	Cont.600/int.750rpm	Max Torque:	Cont.240/int.280N.M
Max Output:	Cont.13/int.15kw	Max Pressure:	Cont.17.5/int20mpa
High Light:	omr danfoss hydraulic motor , 100cc gerotor hydraulic motor , end ports gerotor hydraulic motor

Hydraulic component Danfoss Hydraulic Gerotor Motor OMR X 100cc,25mm key shaft, end port

Description:

Hanjiu BMR100 = Danfoss OMRX100 Rear Port

Specifications:

Type	BMR
Displacement	100CC
Shaft	25MM Cylindrical
Flange	A2 (2 Bolt 106.1 pcd)
Port Position	End
Shaft Seal	High Pressure
Drain	Yes

Main specification

Type		BMR 36	BMR 50	BMR 80	BMR 100	BMR 125	BMR 160	BMR 200	BMR 250	BMR 315	BMR 375
displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13.0	12.5	12.5	10	7.0	6.0	5
Max. output (kW)	int.	9.8	11.2	15	15.0	14.5	14	13	9.5	9.0	8
Max. pressure drop (MPa)	cont.	14.0	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8.0	8.5	9.0	9.5
