Product Details:
Payment & Shipping Terms:
|
| Item: | Orbital Motor | Model: | OMPW |
|---|---|---|---|
| Mounting: | Wheel Mount | Shaft: | Taper |
| High Light: | ompw200 orbit hydraulic motor,tapered shaft orbit hydraulic motor,wheel mount motor orbit hydraulic |
||
Quickly item review

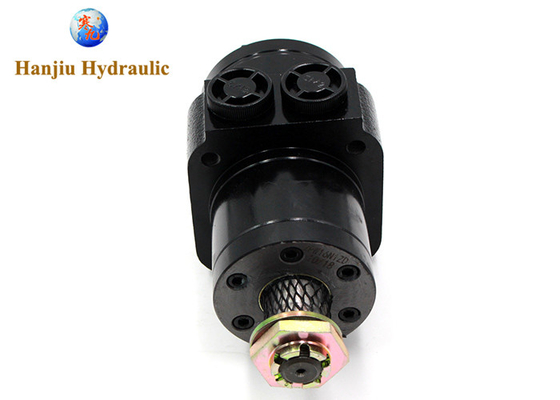

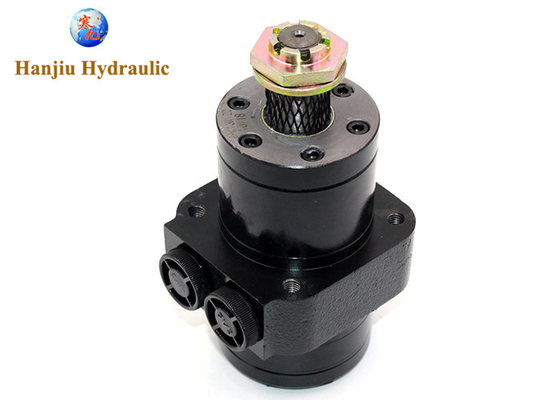

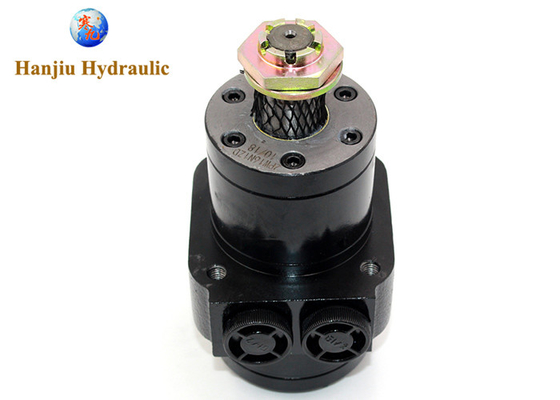

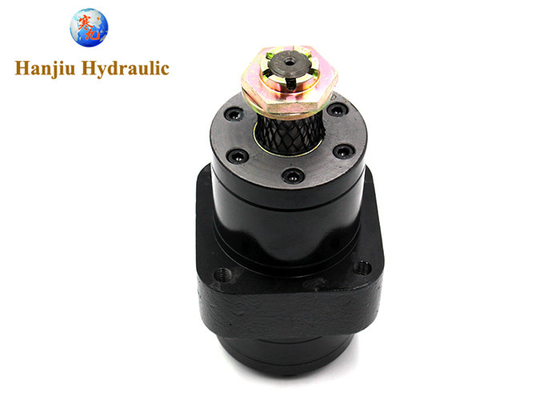

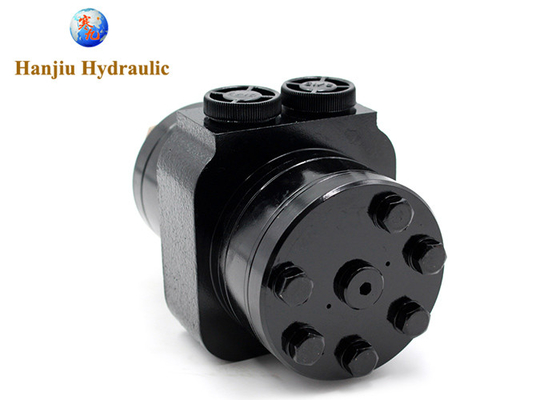

This is an OMPW Orbital Motor.It is form, fit and function compatible with Danfoss OMPW. Dealers and users of Danfoss sell and use it directly as an OMPW compatible motor.
Technical information
Taper shaft 1:10 on wheel mount Flange
OMPW parameters:
| Type | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | BMPW | |
| 36 | 50 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | ||
| Displacement | 36 | 51.7 | 77.7 | 96.2 | 117.9 | 155.5 | 189.9 | 231 | 311.7 | 386.2 | |
| Max. speed (rpm) | rated | 1050 | 850 | 650 | 520 | 390 | 310 | 260 | 200 | 156 | 130 |
| cont. | 1078 | 879 | 740 | 589 | 475 | 370 | 296 | 237 | 189 | 149 | |
| Max. torque (N•m) |
int. | 1210 | 975 | 827 | 673 | 594 | 463 | 370 | 297 | 236 | 185 |
| rated | 55 | 81 | 129 | 161 | 202 | 204 | 259 | 325 | 345 | 435 | |
| cont. | 55 | 81 | 129 | 161 | 202 | 245 | 286 | 360 | 406 | 435 | |
| Max. output (kW) | int. | 76 | 108 | 171 | 213 | 268 | 342 | 390 | 456 | 505 | 533 |
| rated | 6 | 7 | 8.6 | 8.6 | 8 | 6.5 | 6.9 | 6.6 | 5.5 | 5.8 | |
| Max.pressure drop (MPa) | cont. | 6 | 7 | 9.1 | 9 | 9.1 | 8.7 | 8.1 | 8.2 | 7.2 | 6.1 |
| int. | 8 | 8.9 | 11.8 | 11.9 | 11.8 | 11.9 | 10.9 | 10.1 | 8.6 | 7.2 | |
| rated | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 10 | 10 | 10 | 8.5 | 8.5 | |
| Max. flow (L/min) | cont. | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | 11 | 11 | 10 |
| int. | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 14 | 12.5 | 10.5 | |
| Max.inlet pressure (MPa) | peak | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 14 | 12.5 | 10.5 |
| rated | 40 | 45 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
| Max.flow | cont. | 40 | 45 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| int. | 45 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
| Weight(kg) | 5.6 | 5.6 | 5.7 | 5.9 | 6 | 6.2 | 6.4 | 6.6 | 6.9 | 7.4 | |
DESCRIPTION
Displacement [25 -490 cm3]
Max. cont. pressure [160 bar]
Max. cont. torque [490 Nm]
Max. cont. flow [60 lpm]
Available with aligned side ports
Recessed mouting flange allows better radial load distribution
