Product Details:
Payment & Shipping Terms:
|
| Model No.: | HSSD5 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | O/Y/A | Control Type: | Spring Return |
| High Light: | spring return monoblock spool valve,45lt monoblock spool valve,walvoil monoblock directional control valves |
||

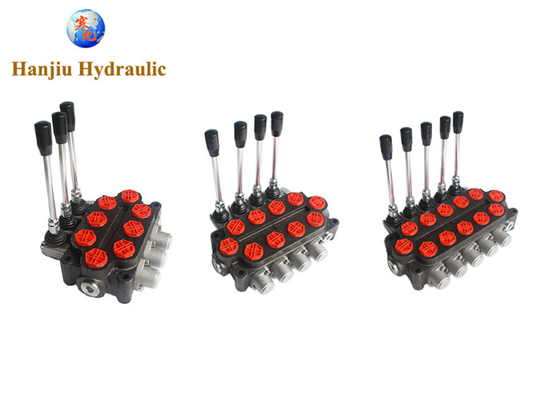

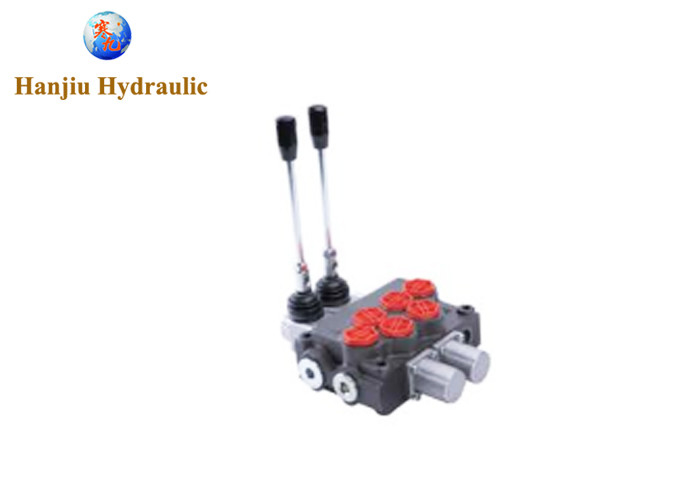

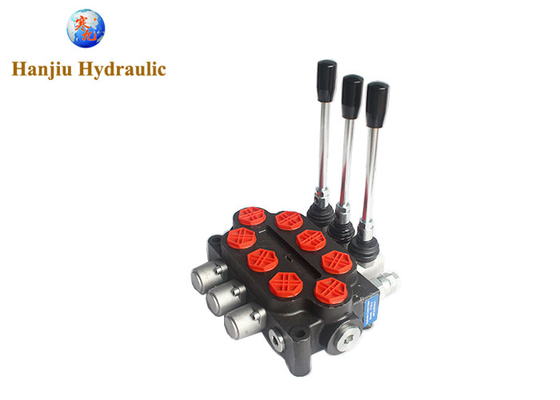

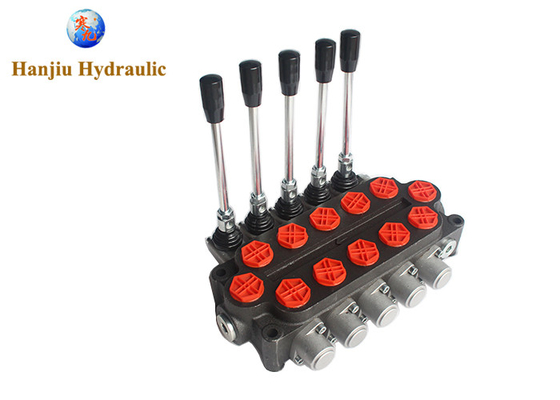

Hanjiu hydraulic supply the HSSD5 Series direction control valves
matching Walvoil SD5 monoblock control valves,same performance
1 Bank
No.1 Cylinder Spool - Closed Centre
Standard Lever Pivot Box
Levers not included
AET - Open Centre Plug - refer to technical download
Connections (BSPP): P, C = 3/8". A, B = 3/8". T = 3/8".
| Ambient temperature | -40°C...+80°C |
| Viscosity | 12 ...400 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 45 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
How to choose?
First of all, when choosing a sectional control valve, you can use the following points as a reference standard.
1. Sensitive, reliable in use, less impact and vibration when working.
2. When the valve port is fully open, the pressure loss of the liquid flow is small; when the valve port is closed, the sealing performance is better.
3. The controlled parameters should be stable, and the amount of change should be small when it is disturbed by the outside world
4. Compact structure, convenient installation, adjustment, maintenance, and maintenance, and better general performance.
If a sectional control valve can meet the above standards, it must be a product with excellent performance, and you can buy it with confidence.
However, the products on the market are often mixed, and for a person who does not know much about control valves, it is easy to buy a product that is not suitable and the quality is not very good. At this time, it is especially important to have a trustworthy company. If you don’t know which company to buy sectional control valve from, my recommendation is Hanjiu Technology Co.,Ltd.
Hanjiu Technology Co., Ltd. has been focusing on the production of hydraulic products for more than ten years, and has rich production experience. The sectional control valve produced by Hanjiu Technology It has a series of advantages such as compact structure, sensitivity and high efficiency. Their segmented valves offer selective methods of operation including manual, hydraulic, electro-hydraulic and pneumatic controls, providing high quality and high precision segmented directional control valves for all customer needs. If you have other unique requirements, you can also contact the company for special customization. Hanjiu's professional R&D team can meet all your needs. Best of all, you can get it all for a fraction of the price.
