Product Details:
Payment & Shipping Terms:
|
| Model No.: | DIVERTER VALVE | Warranty: | 1year |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 90LITERS |
| Spool Function: | O/Y/A | Control Type: | Open Center, Closed Center |
| High Light: | 24gpm hydraulic diverter valve,g1/2 ports hydraulic diverter valve,diverter hydraulic monoblock valve |
||

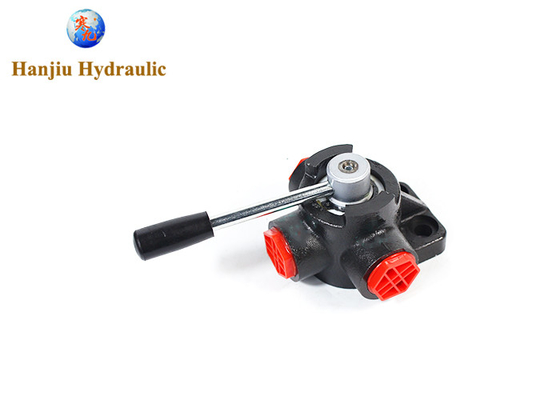

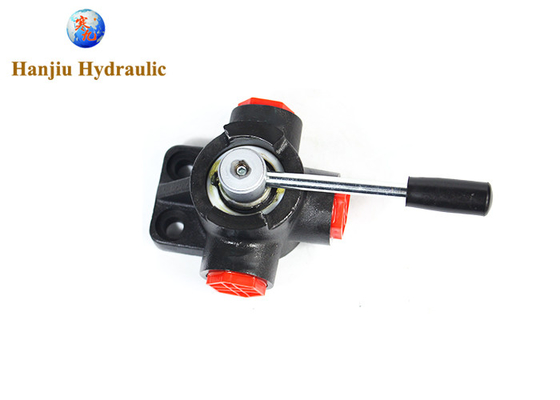

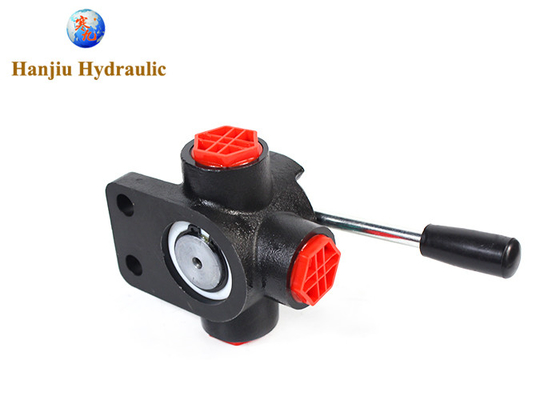

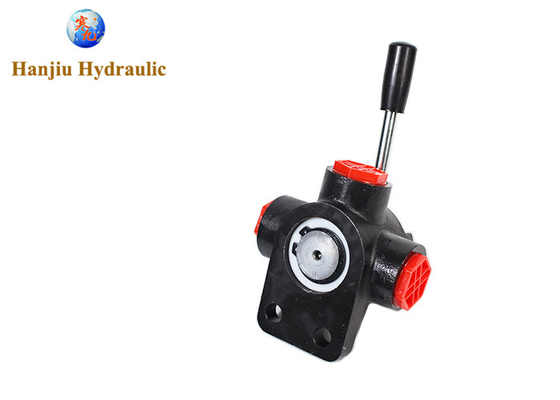

The HANJIU HSDV10 Rotary Diverter Valve is a directional control valve consisting basically of a rotor which is rotated with respect to the valve body. When the rotor is placed in selected positions, inlet and outlet ports are connected in various combinations permitting the start, stop or directional change of fluid under pressure. Heavy duty cast iron construction.3190 PSI BSP G1/2 Ports
|
BRAND |
HANJIU |
|
VALVE TYPE |
Diverter Control Valves, Rotary valves |
|
FLOW RATE (LPM) |
90.00 |
|
MAXIMUM WORKING PRESSURE (BAR) |
315.00 |
|
MINIMUM OPERATING TEMPERATURE (C) |
-20.00 |
|
MAXIMUM OPERATING TEMPERATURE (C) |
100.00 |
|
MINIMUM AMBIENT OPERATING TEMPERATURE |
-40.00 |
|
MAXIMUM AMBIENT OPERATING TEMPERATURE |
60.00 |
|
MOUNTING TYPE |
diverter valve |
Hanjiu technology company's directional valve popular series is many, today mainly to show you P40, P80, P120 series, this series of high pressure overall structure valve is Hanjiu technology developed on the basis of Europe, although it is a more basic series of valves, but under the innovation and development it has a lot of Hanjiu technology's characteristics.
In appearance, they are small and light in structure, so they are light, simple and reliable in operation; the number of workgroups can increase with up to 7 primary and secondary overflow valves, so the opening pressure can be adjusted for customer requirements; series and parallel structures or external load holding valves to ensure that the higher load actuators does not drop during operation. In addition, the modules with different functions on the valve set can realize the switch between single pump and double pump, improve the work efficiency, and save energy consumption. The overall structure of the P80 series of single hydraulic control valves with high tensile strength cast iron and precision grinding and hard chrome-plated wire shafts also ensure that they have a long service life.
Because this relatively basic valve cost is relatively low, so it is also low price. But they are also very strong and durable. So it is very suitable for being widely used in the pursuit of affordable agriculture, industrial equipment and other fields.
