Product Details:
Payment & Shipping Terms:
|
| Model No.: | HDCF50 | Bank: | 3 Banks/spools/sets |
|---|---|---|---|
| Flow: | 50liters | Spool Function: | Open Center, Closed Center |
| Pressure: | 200bar | Application: | Skip Trucks, Hook Loaders, Refuse Trucks, Ejector Trailers |
| High Light: | construction machines directional control valve,3 blocks directional control valve,50 liters relief directional valve |
||

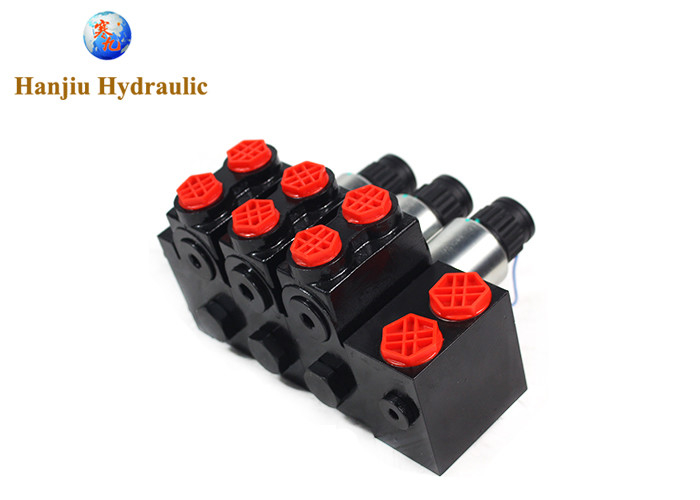

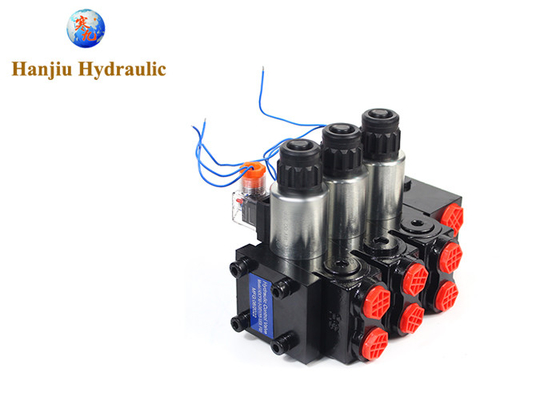

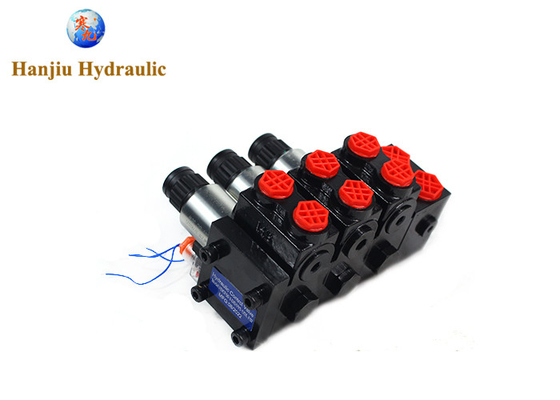

construction machines hydraulic directional control valves,3 blocks,50liters relief valve
Product details:
| Norminal Flow | 50L/min |
| Norminal dia. | 10mm |
| Max Pressure | 200mpa |
| Control Type | manual, pneumatic, hydraulic, electro-hydraulic |
| Allowed back pressure | 3 mpa |
| Oil temp | -20°--80° |
features:
sectional valve
50 l/min
3 sections
connections A&B: G 3/4’’
double acting
spring centered
pressureless flow in neutral position
max. working pressure: 200 bar
incl. pressure relief valve
pressure relief valve adjustable from 125 bar – 220 bar (standard: 175 bar)
Hanjiu Technology has accumulated rich experience in the field of hydraulic product production for more than ten years. With its excellent product quality, super high cost performance and meticulous after-sales service, Hanjiu Technology has continuously expanded its production scale and has now become China's largest manufacturer of hydraulic products. The largest manufacturer of hydraulic products in the north, hydraulic products are exported to more than 30 countries in the world, and these products have won unanimous praise. There are various types of hydraulic products produced by Hanjiu Technology. Only in the field of hydraulic construction machinery, there are a variety of products with different specifications. At Hanjiu, you are sure to find the products you need
