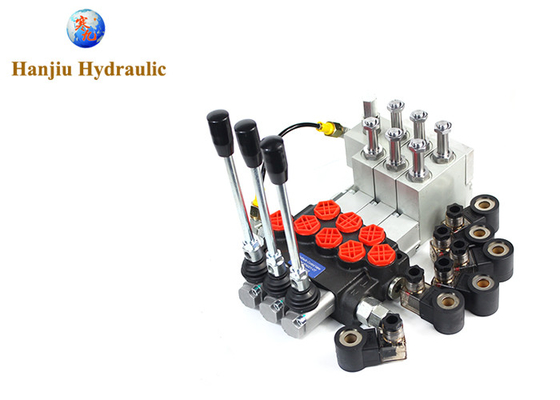

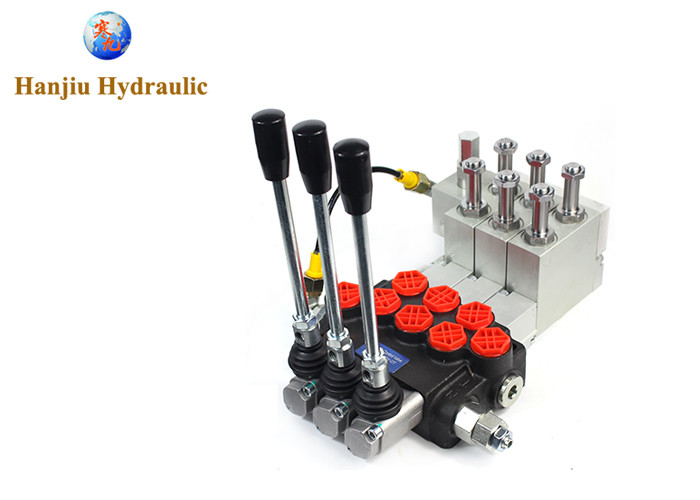

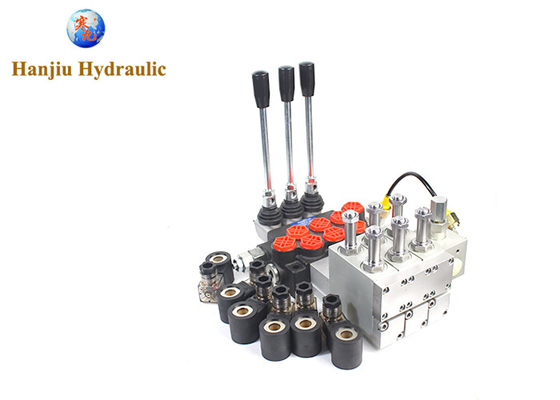

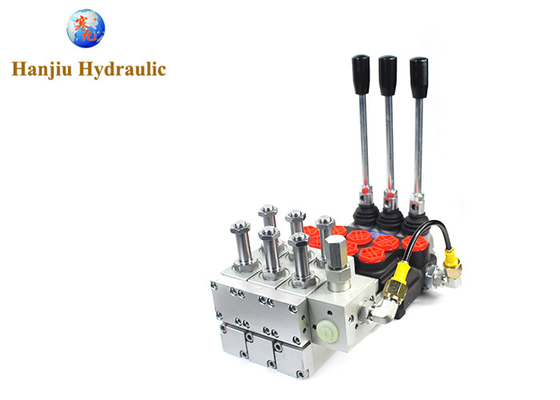

Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control

Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control
Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control

Large Image :  Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P40
Payment & Shipping Terms:
Minimum Order Quantity: 30 units
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Detailed Product Description
Model No.: 3P40 Warranty: 12-18 Months
Control Type: Manual ,electric-hydraulic Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Function: Closed Center Oil Ports: SAE PORT
High Light:

11gpm hydraulic directional valve

,

12v hydraulic directional valve

,

sae ports hydraulic spool valves



Directional Control Valve Electric Hydraulic Valve 11gpm,12V, SAE Ports 3 Spools Manual Control Valve



Valve controled electrically and by additional lever.

The levers on the spring that helps back to the vertical position

Perfect for machines and vehicles which require the ability to control distributor of two places: electrically from the cabin and levers standing directly on the valve, as for example. HDS-edged and cranes.

Lever three positions
Position the first neutral (lever positioned vertically piston cylinder stands - oil goes to overflow

Position the second working (lever set to slant forward) piston cylinder extends.

Position the third working (lever set to slant backward) piston cylinder retracts.



Specification:

  • Construction = Monoblock
  • Material of Construction = Steel
  • No of Spools = 3 Spools all with Manual override lever
  • No of Electro-Hydraulic Actuated Spools = (3) Three.
  • Material of Construction = Hardened Steel
  • O-rings made of NBR
  • Max Flow Rate = 40 liters/min (11 Gallons per Minute)
  • Max Working Pressure = 250 Bar (3600 PSI)
  • A and B Ports Pressure Rated to 300 bar (4400 psi)
  • Spool Type = Cylinder
  • Coil voltage = 24 Volt DC +/- 10% (12 Volt DC also available)
  • Coil power rating = 24 watts
  • Coil duty cycle = 100%
  • Built-in Relief Valve = Adjustable (factory set at 140 bar 2100 PSI) # If loads will not lift, please undo lock nut on relief, & with an allen key turn clockwise 1/2 a turn at a time whilst testing operation for more power. Stop when load lifts.

Ports Sizes
  • Pressure Port 1/2" BSPP
  • Cylinder Ports 1/2" BSPP
  • Tank Port 3/4" BSPP
  • Power beyond port 1/2" BSPP
  • Operating temperature range: -20 °C to + 80°C
  • Dimensions = L x W x H = 200 x 200 x 60 mm
  • Weight 12kg
This a High-Quality Valve and has many outstanding features, including:
  • Built-in adjustable relief valve
  • High performance,
  • High efficiency,
  • Compact construction.
  • Low-pressure drop.
  • Long service life.
  • Choice of various ports and circuit valves.
  • High accuracy spool is hardened for long term accuracy.
  • Manual Override Handles for fine control and emergency operation.


Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control 0

Electro-Hydraulic Control valves eliminate the need for a separate compressed air actuation system.
You Do Not Require the following, Clean dry air, an Air pump, Air tank, Air driers, Pressure regulators, and lubricators to remove moisture, rust, dust, and lubricate the air.

Not to mention and light flexible air tubing that is susceptible to deterioration and damage.

This in turn has the following advantages
  • Greatly simplifies and tidy's up the hydraulic system's architecture,
  • Speeds up installation and set up and
  • Improves reliability and consequently safety.

Principals of operation.

Electro-hydraulic Valves use Solenoid actuated Cartridge Valves to
  1. divert a small amount of system Oil flow from the actual hydraulic circuit to
  2. move the flow control spool and
  3. change the direction of the flow of hydraulic oil

Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control 1



These valves are generally used in Remote Control Applications, such as those found in
  • Automotive Tilt Trays,
  • Mobile Plant
  • Wood Chippers
  • Stump Grinders and
  • Agricultural equipment.
This model has many more useful applications and can be used to operate up to 3 separate functions that require semi automatic actuation of Valves, Cylinders or Rotating motors.











Electric 11gpm Hydraulic Directional Valve 12v Sae Ports 3 Spools Manual Control 2
