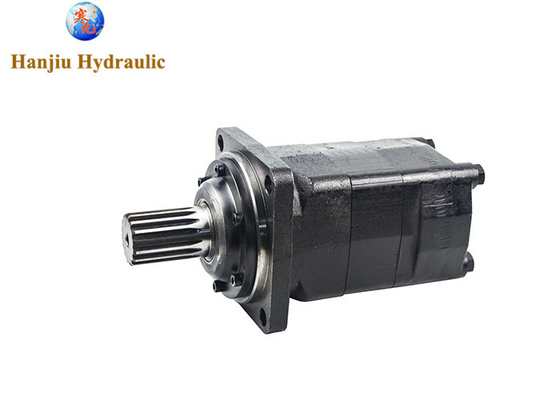

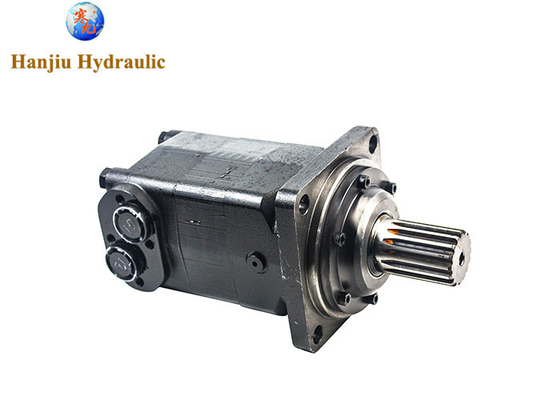

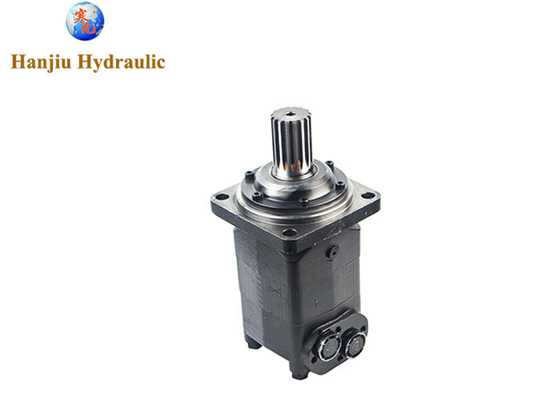

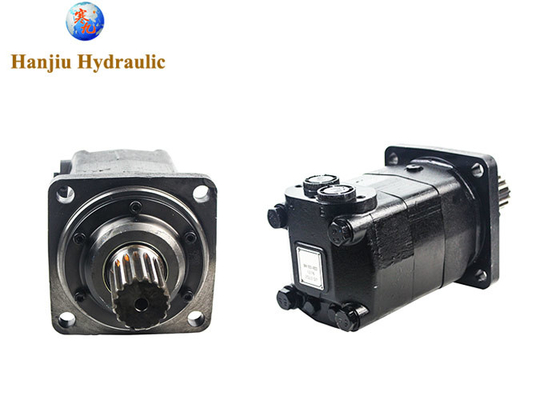

Danfoss Omv 800 Orbit Hydraulic Motor 151b3109 Hartl Crusher Drive Motor

Danfoss Omv 800 Orbit Hydraulic Motor 151b3109 Hartl Crusher Drive Motor
Danfoss Omv 800 Orbit Hydraulic Motor 151b3109 Hartl Crusher Drive Motor Danfoss Omv 800 Orbit Hydraulic Motor 151b3109 Hartl Crusher Drive Motor Danfoss Omv 800 Orbit Hydraulic Motor 151b3109 Hartl Crusher Drive Motor Danfoss Omv 800 Orbit Hydraulic Motor 151b3109 Hartl Crusher Drive Motor

Large Image :  Danfoss Omv 800 Orbit Hydraulic Motor 151b3109 Hartl Crusher Drive Motor

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMV MOTOR
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiable
Packaging Details: 2PCS IN ONE CARTON,800PCS IN 20'FCL
Delivery Time: 25-30DAYS
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 300000PCS PER YEAR
Detailed Product Description
Material: Cast Iron /Steel Max.speed(rpm): Cont.320rpm/int.380rpm
Max.torque(N.m): Cont.1660N.m/int.1940N.m Max.pressure Drop: Cont.18mpa/int.21Mpa
Oil Temperature: Normal-35℃-80℃ Viscosity: 42-74mm2/s
High Light:

danfoss omv 800 orbit hydraulic motor

,

151b3109 orbit hydraulic motor

,

hartl crusher drive danfoss hydraulic motor



Orbit Hydraulic Motor Danfoss OMV800 151B3109 Hartl Crusher Drive Motor



Main spec.

Geometrical displacement (cm3/r): 800
Max. Speed (min-1 [rpm]): 250/300
Max. Torque (Nm [lbf·in]): 1880 [16640]
Max. Output (kW [hp]): 42.5 [57.0]
Max. Oil flow (l/min [USgal/ min]): 200 [52.8]
Max. Inlet pressure (bar [psi]): 210 [3050]



Flange:square φ200
Shaft:spline shaft
oil ports:G1



Main Specification:



Type BMV 315 BMV 400 BMV 500 BMV 630 BMV 800 BMV 1000
Geometric displacement (cm3 /rev.) 333 419 518 666 801 990
Max. speed (rpm) cont. 510 500 400 320 250 200
int. 630 600 480 380 300 240
Max. torque (N·m) cont. 920 1180 1460 1660 1880 2015
int. 1110 1410 1760 1940 2110 2280
peak 1290 1640 2050 2210 2470 2400
Max. output (kW) cont. 38 47 47 40 33 28.6
int. 46 56 56 56 44 40
Max. pressure drop (MPa) cont. 20 20 20 18 16 14
int. 24 24 24 21 18 16
peak 28 28 28 24 21 18
Max. flow (L/min) cont. 160 200 200 200 200 200
int. 200 240 240 240 240 240
Weight (kg) 31.8 32.6 33.5 34.9 36.5 38.6





orbital motor is actually a hydraulic motor, hydraulic motor generally refers to the output rotation movement, the hydraulic pump of hydraulic energy into mechanical energy of energy conversion device, also called oil motor, hydraulic motor, mainly used in injection molding machinery, ships, jack, construction machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, ship machinery, petrochemical industry, port machinery, etc. Hanjiu is a professional company specializing in Shijiazhuang, China, who have worked in hydraulic engineering and automation for more than 15 years. Hanjiu hydraulic will be integrity service and product quality as the lifeline of the enterprise. From design, processing, production, assembly, testing to after-sales service, Hanjiu Technology Company has established a perfect quality system to ensure that every product sold by Hanjiu brand is of high quality. Up to now, the Hanjiu brand products sales range from domestic to overseas, the market covers Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions.



Today is the OMV series of hydraulic motors with advanced Geroler gear sets, with disks designed to distribute flow and high pressure. This device can also provide separate variants of operational functions according to the application requirements. This greatly enhances the practicality of this range of motors with upper limits. The main features of the BMV series motors are the advanced manufacturing devices of the Geroler gear set, with a low starting pressure, a stable and reliable operation, and a high efficiency. The output shaft is suitable for conical roller bearings, allowing for high axial and radial forces. Its housing provides high-pressure and high-torque capabilities in a wide range of applications. Using the advanced disc flow design, can automatically compensate the operation volume of high efficiency, long life, stable and reliable operation. In addition to these, Hanjiu Technology products have always been characteristics: price concessions.



However, the quality of the hydraulic motor also needs other parts to play its own advantages, so there are some requirements for the hydraulic system: the system should be equipped with the corresponding oil filter to ensure the cleanliness of the system oil; the hydraulic circuit must be equipped with a cooling system to prevent excessive oil temperature; the pressure gauge and thermometer must be installed in the oil intake line; the pressure gauge should be installed in the hydraulic circuit of the hydraulic pump. After meeting the requirements of the system, and then using the machine, the sense of use will be better.
