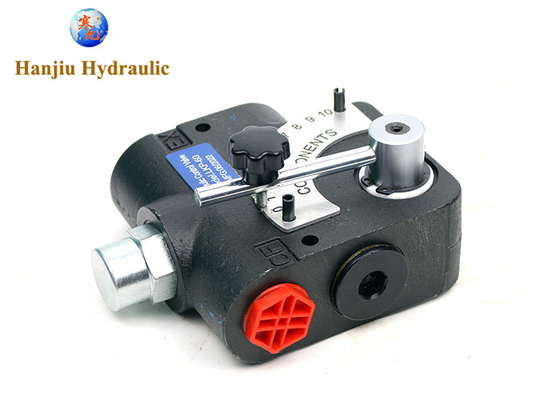

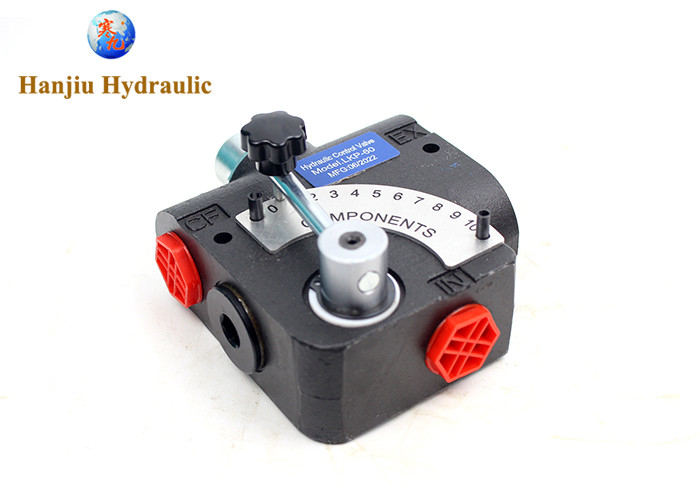

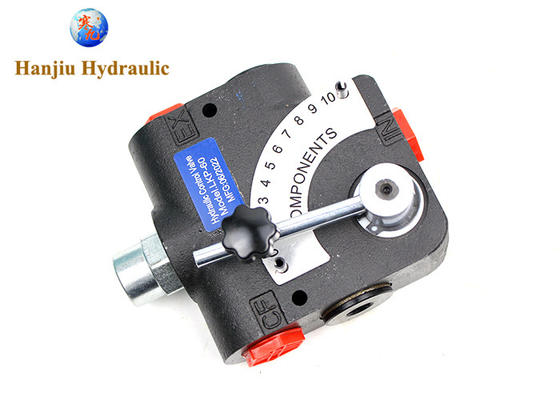

W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm

W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm
W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm

Large Image :  W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: LKF
Payment & Shipping Terms:
Minimum Order Quantity: 50 Sets
Price: 45 usd
Packaging Details: Carton, Box, Pallets
Delivery Time: 15 - 35 work days
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 300000 sets per year
Detailed Product Description
Item: Adjustable Flow Control Valves Model: LKF
Apply To: Agricultural Machinery Flow: 0-114L/min (0-30gpm)
Connect: 3/4 NPT Pressure: 210 Bar
High Light:

30 gpm directional control valve

,

adjustable flow control directional control valve

,

30 gpm adjustable flow control valves

W/WR1900 Flow Control 0 -30 gpm, Adjustable Flow control Valves







Brief introduce:
The W/WR1900 is a pressure compensated adjustable flow control valve.
LKF is a HIGH-END compatible option for W-1900, with fast delivery and more affordable price.



Valve Specifications:

Max GPM 30 GPM max flow
Max PSI 3000 PSI
Max Temp

max180° F

Fluid For use with mineral basedhydraulic fluid





More Models:

MODEL No. DESCRIPTION
W-1950-8 1/2-NPTF PORTS(0-8 GPM CF SPOOL)
W-1908-8 #8 SAE/ORB PORTS(o-8 GPM CF SPOOL)
W-1950-16 1/2-NPTF PORTS(0-16 GPM CF SPOOL)
W-1975-30 3/4-NPTF PORTS(0-30-GPM CF SPOOL)
W-1912-30 #12 SAE/ORB PORTS(O-30 GPM CF SPOOL)
WR-1950-16 1/2-NPTF PORTS(O-16 GPM W/RELIEF)
WR-1975-30 3/4 NPTF PORTS (0-30 GPM W/RELIEF)
WR-1912-30 #12 SAE/ORB PORTS(0-30 GPM W/RELIEF)
WR-1937-8 3/8-NPTF PORTS(0-8 GPM CF SPOOL)





How it work:
By rotating the handle, the flow out the "CF" or controlled flow portcan be varied within the range given in the chart below. Any remaining flow is bypassed to the "EF" or excess flow port.



This flow can beused to power another circuit or can be returned to tank. Once the controlled flow is set, it will remain nearly constant with variations inpressure on either the controlled or excess flow ports.



Please note, if during operation the controlled flow port is blocked, the vave wicompensate in such a way as to shut off flow to the excess port.

This valve can also be used as a restrictive flow control by plugging the excess flow port.



Attention:
The WR-1900 has a bult-in adjustable pressure relief. For this model, the excess flow port must be connected to tank.It should be notedthat whenever this or any valve is used to bypass or restrict flow, heat will be generated. Steps may be required to keep oil temperaturefrom becoming too high.





COMMENTS

Sell ​​as is. 12 months warranty. The conditions for removal and loading are the sole responsibility of the buyer.

Contact us, tell us your questions and applications, we'd like to serve you out.





W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm 0





W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm 1





W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm 2







W/WR1900 Directional Control Valve Adjustable Flow Control Valves 0 -30 Gpm 3
