Adjustable 3 Way Flow Control Valve With Relife Fcr51-3/4 114 L/Min Npt 3/4"

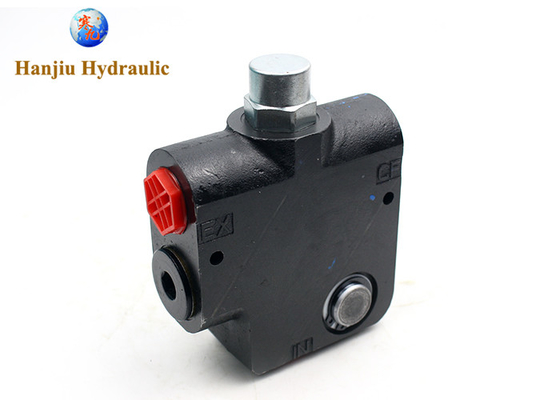

3 way flow control valve with relife, FCR51-3/4 , 114 L/min, NPT 3/4"​

Brief introduce:

FCR51 series valves are pressure compensated adjustable flow control valves. By rotating the handle, the flow out the “CF” or controlled flow port can be varied. Any remaining flow is bypassed to the “EF” or excess flow port.
LKF is a HIGH-END compatible option for FCR51-3/4, FCR51-3/4 also available.

Specification :

Description:
Pressure Compensated Flow Control – FC

Adjust Ball Spring Releif – R

Specification of Flow Path – 51

Port Size

3/8″ – 3/8″ NPT (30 LPM)
1/2″ – 1/2″ NPT (60 LPM)
3/4″ – 3/4″ NPT (114 LPM)
Port – 2P – 2 Port

Flow Setting

30 – 0 – 30 LPM
60 – 0 – 60 LPM
114 – 0 – 114 LPM

About manufacturer:

Hanjiu valves are compatible with Italian & Bulgaria makes, they are available as follows:

monoblock, sectional

for high pressure hydraulic system, such as drilling machine, sanitation, etc.
manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic
40 liters - 200 liters, 1 spool to 12 spool

Monoblock valve has a normal pressure of 250 bar, more used in agriculture and light industry
Sectional valve belongs to the high-pressure valve 350 bar, more used in the field of heavy machinery
Through your introduction, we understand that your company serves more engineering fields
Contact us to talk your needs
