Product Details:
Payment & Shipping Terms:
|
| Model Number: | TF080HW460AAAA | Product: | High Torque Hydraulic Motor |
|---|---|---|---|
| Applications: | Agricultral Combine Machinery | Rotary: | Counter-clockwise |
| Flange: | Wheel Mounting | Shaft: | Straight Shaft |
| High Light: | tf080hw460aaaa parker hydraulic motor,high torque parker hydraulic motor,agriculture combine machine parker motors |
||
Parker TF080HW460AAAA high torque motor anologue apply to agricultural combine machiney
Quick view:

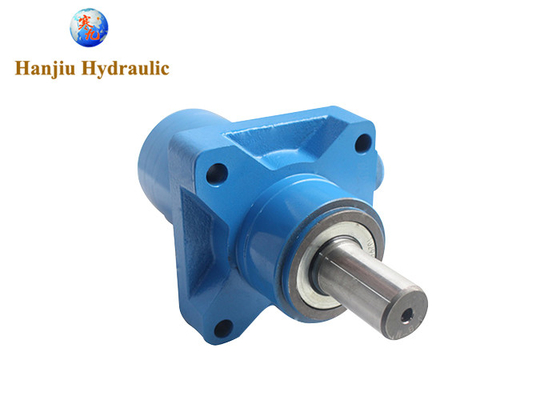

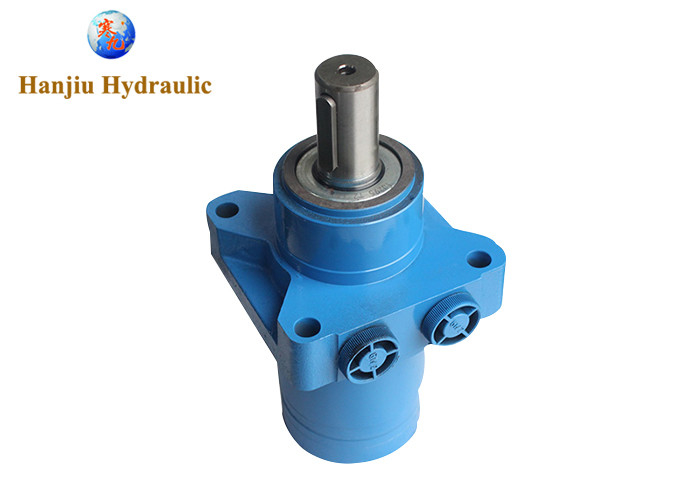

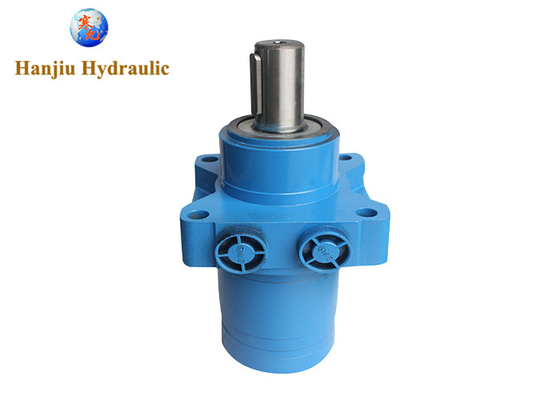

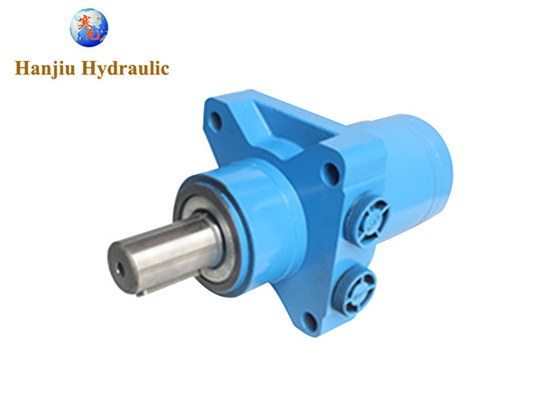

This is a Hydraulic Low Speed High Torque Motor with whell mounting it compatible with Parker TF080HW460AAAA Hydraulic motor, and popular apply to Agricultural applications, especially combine equipment that request a hydraulic motor should bear a high pressure. We provide Motors suit for hydraulic distributors, dealers, OEMs and Users, they are suit range of brands and applications, we make sure they are with excellent performance to make your business more competitive, stable and make your equipment work excellent.
Specifications:
| Manufacturer: | Hanjiu |
| Country of origin: | China |
| Material number: | TF080HW460AAAA |
| Motor series: | TF-Series |
| Basic Motor: | BMJ |
| Displacement: | 80 ml/r |
| Mounting Flange: | H |
| Mounting Thread Dimension: | 4-13.5 |
| Shaft Style: | Cylindrical |
| Shaft Size: | 32 mm |
| Shaft Key: | parallel key |
| Port Size: | side port |
| Port Dimension: | G 1/2 |
Technical parameter comparison table:
Here is Parker TF motor technical information and Hanjiu BMJ motor technical information, Hanjiu motors have 99% SIMILARITY
| Parker TF080 | Hanjiu BMJ-80 | ||
| Motor size | 80 | 80 | |
| Geometric displacement cm3 | 81 | 81.3 | |
| Max. speed rpm | cont | 550 | 543 |
| int | 730 | 689 | |
| Max. torque Nm | cont | 172 | 157 |
| int | 236 | 215 | |
| Max. oil flow l/min | cont | 45 | 45 |
| int | 60 | 57 | |
More Parker TF alternative option may be available for these item, to verify please inquire
Located in China, we specialized in Low Speed High Toruqe Motors, compatible with Parker, also Orbit motors, Geroller and Gerotor motors compatible with Danfoss ,white, Eaton, Dana. If you are looking for these motors, we will help make your business competitive, contact us to talk your request
