Product Details:
Payment & Shipping Terms:
|
| Model Number: | 530470A5127AAAA | Product: | Medium Duty Hydraulic Motor |
|---|---|---|---|
| Applications: | Hydraulic System Request High Pressure | Rotary: | Counter-clockwise |
| Flange: | 6 Hole Mounting | Shaft: | Straight Shaft |
| High Light: | re 530 series white drive motor,medium duty wheel white drive motor,530470a5127aaaa white drive hydraulic motor |
||

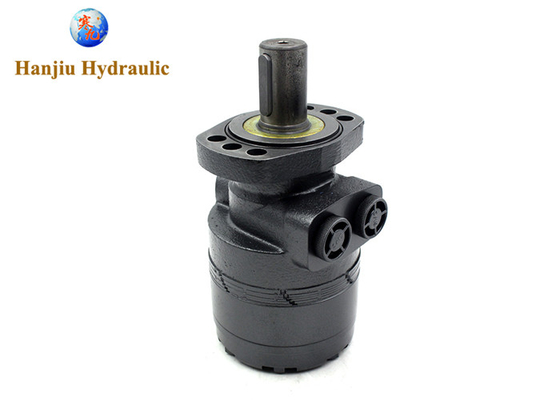

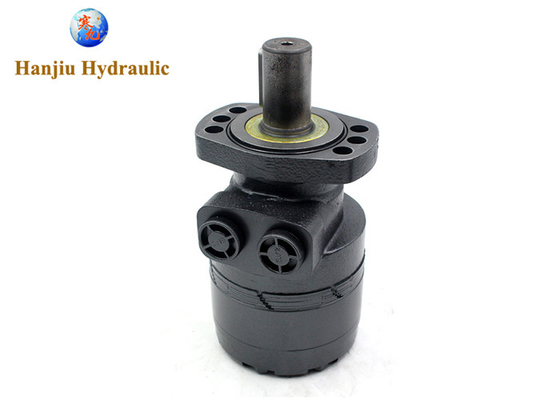

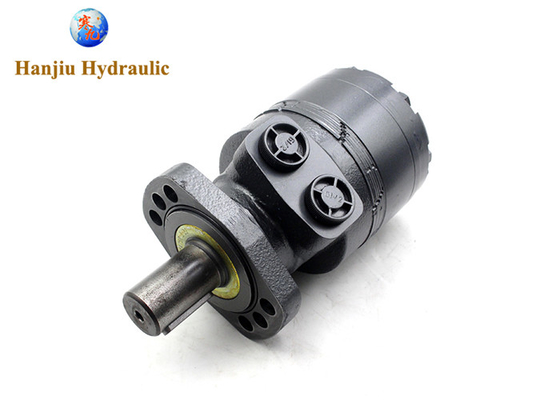

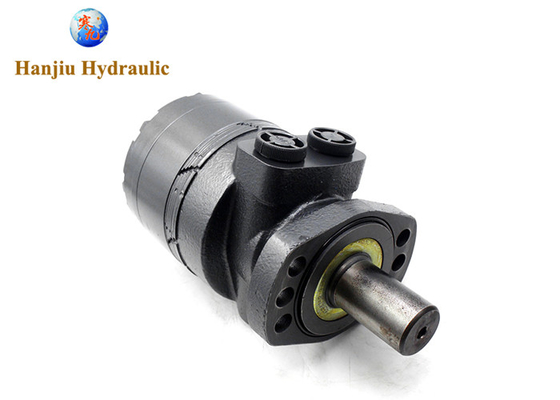

RE 530 Series medium duty White Drive Motor 530470A5127AAAA compatible
Quick view:
This is a Medium Duty drive motor with 6-bolt mounting, it compatible with White Drive Motor 530470A5127AAAA, and popular apply to hydraulic systems that request high pressure. We provide Motors suit for hydraulic distributors, dealers, OEMs and Users, they are suit range of brands and applications, we make sure they are with excellent performance to make your business more competitive, stable and make your equipment work excellent.
Specifications:
| Manufacturer: | Hanjiu |
| Country of origin: | China |
| Material number: | 530470A5127AAAA |
| Motor series: | RE-Series |
| Basic Motor: | BMER-2 |
| Displacement: | 475 ml/r |
| Mounting Flange: | 6-BOLT |
| Mounting Thread Dimension: | 6-13.5 |
| Shaft Style: | Cylindrical |
| Shaft Size: | 35 mm |
| Shaft Key: | parallel key |
| Port Size: | side port |
| Port Dimension: | 7/8-14 UNF |
Technical parameter comparison table:
Here is White 530 motor technical information and Hanjiu BMer-2 motor technical information, Hanjiu motors have 99% SIMILARITY
| White RE 530470 | Hanjiu BMER-2-475 | ||
| Motor size | 470 | 475 | |
| Geometric displacement cm3 | 465 | 462 | |
| Max. speed rpm | cont | 160 | 160 |
| int | 200 | 195 | |
| Max. torque Nm | cont | 1096 | 1085 |
| int | 1184 | 1180 | |
| Max. oil flow l/min | cont | 76 | 75 |
| int | 91 | 90 | |
More Whote RE alternative option may be available for these item, to verify please inquire
| 530300A5130AAAAA | 500200A5102AAAAA | 500160A5120AAAAA |
| 530375A5130AAAAA | 500200A5123AAAAA | 500160W3120AAAAA |
| 500540A3123ZAAAA | 500230A3102AAAAA | 500200A5120AAAAA |
| 500200A5122AAAAA | 500260A3110AAAAA | 500230A3122AAAAA |
| 500375W3122AAAAA | 500300A5102AAAAA | 500230A5120AAAAA |
| 500300W3122AAAAA | 505300A5120AAAAA | 500260A3123AJAAA |
| 500230W3122AAAAA | 500300K3122AAAAA | 500470W3120AAAAA |
| 500120W3120AAAAA | 500350A5123AAAAA | 500470W3120AEAAA |
| 500160W3122AAAAA | 500375A5120AAAAA | 505540A5120AAAAA |
| 500260W3120AAAAA | 500470A5120AAAAA | 500540W3120AAAAA |
| 500200W3122AAAAA | 500470W3122AAAAA | 500540W3122AAAAA |
| 500260W3122AAAAA | 500540A5123AAAAA | 501750K3122ACAAA |
| 500750A5120AFAAA | 505750A5120AAAAA | 501540A5123AAAAA |
| 500540W3120AEAAA | 500120A5102AAAAA | 501200A3123AAAAA |
| 500540A3122AABAA | 500350W3122AAAAA | 501540A5122AABAA |
| 500470A3120AAAAA | 500160A3110AAAAA | 500230A5101AAAAA |
| 520300A5103AAAAA | 520300W3125AAAAA | 530200X3831AABACS |
| 530300T31N8AAABRP | 530230X3131ZAAAAS | 530200X3122AAAAAS |
| 530230X3131ZAAAAP | 530200X3122AAAAAP |
Located in China, we specialized in Ligh duty, medium duty and heavy duty drive Motors compatible with White, also Orbit motors, Geroller and Gerotor motors compatible with Parker, Danfoss ,white, Eaton, Dana. If you are looking for these motors, we will help make your business competitive, contact us to talk your request
