Product Details:
Payment & Shipping Terms:
|
| Model Number: | TF0240HV080AAAA | Product: | Fixed Displacement HTLS Motors |
|---|---|---|---|
| Applications: | Aerial Lift | Rotary: | Counter-clockwise |
| Flange: | Wheel Mounting | Shaft: | Tapper Shaft |
| High Light: | self propelled scissor lift parker motors,tf0240 parker motors,tf0240 parker hydraulic motor |
||

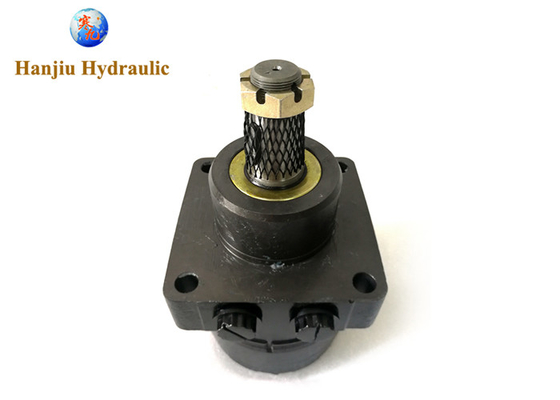

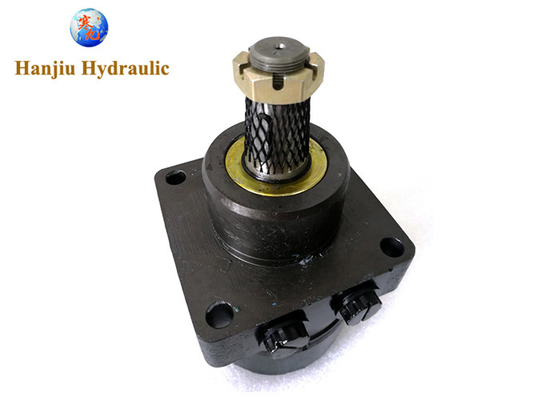

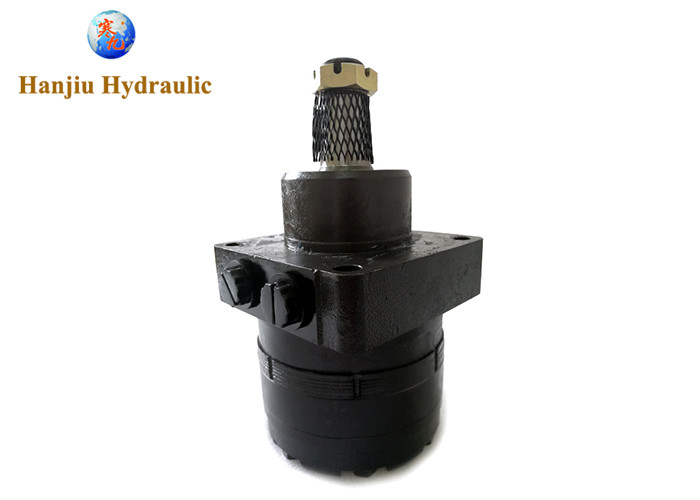

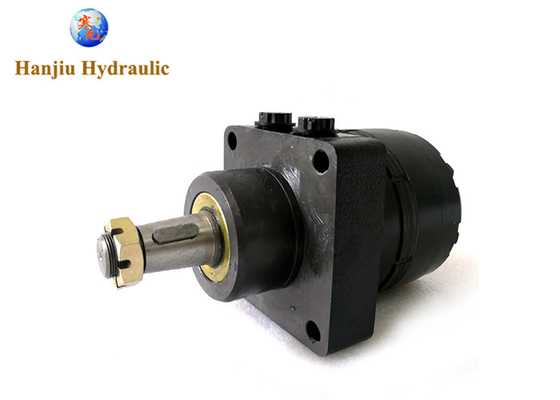

Self-propelled scissor lift Fixed Displacement HTLS Motors, compatible Parker TF0240
Quick view:
Providing The Aerial Lift Industry With competative Hydraulic System Solutions. Our Fixed Displacement HTLS Motors, with High continuous torque ratings meet the application demands in a robust design which provides high volumetric efficiencies and long life.
Some early Aerial Lifts used Parker's low-speed and high-torque motors, such as TF0240HV080AAAA, we can not only provide hydraulic motors compatible with Parker's TF0240HV080AAAA, but also ensure the same form, installation and performance, and can be delivered quickly, solving supply problems for Parker motor users, price Also very affordable.
Here are the product details:
Specifications:
| Manufacturer: | Hanjiu |
| Country of origin: | China |
| Material number: | TF0240HV080AAAA |
| Motor series: | TF-Series |
| Basic Motor: | BMER-2 |
| Displacement: | 240 ml/r |
| Mounting Flange: | H |
| Mounting Thread Dimension: | 4-13.5 |
| Shaft Style: | Tapper shaft |
| Shaft Size: | 31.75 mm |
| Shaft Key: | parallel key |
| Port Size: | side port |
| Port Dimension: | 7/8-14UNF |
Technical parameter comparison table:
Here is Parker TF motor technical information and Hanjiu BMER-2 motor technical information, Hanjiu motors have better torque performance
| Parker TF0240 | Hanjiu BMER-2-250 | ||
| Motor size | 240 | 250 | |
| Geometric displacement cm3 | 238 | 257 | |
| Max. speed rpm | cont | 320 | 290 |
| int | 420 | 350 | |
| Max. torque Nm | cont | 430 | 700 |
| int | 670 | 790 | |
| Max. oil flow l/min | cont | 75 | 75 |
| int | 100 | 90 | |
More Parker TF alternative option may be available for these item, to verify please inquire
Hanjiu specializes in manufacturing and exporting hydraulic components for hydraulic systems in a variety of industries. Aerial Lift is one of the areas we serve. If you have a requirement for hydraulic system components of Aerial Life equipment, please contact us to discuss cooperation. We are willing to help your business better and better
