Hydraulic Orbit Motor OMH 500 With 1 In SAE 6B Splined Shaft Side Ports Cross

Name: Hydraulic Orbit Motor OMH 500 With 1 In SAE 6B Splined Shaft Side Ports Cross
Brand: HANJIU
SKU: BMH500
Rating: 4.6 (167 reviews)

Large Image : Hydraulic Orbit Motor OMH 500 With 1 In SAE 6B Splined Shaft Side Ports Cross

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO9001
Model Number:	BMH500

Payment & Shipping Terms:

Minimum Order Quantity:	50 Sets
Price:	Negotiable
Packaging Details:	Carton Packing, and finally with pallet or wooden box
Delivery Time:	25-30 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	300,000 Sets per year

Contact Now

Detailed Product Description

Product:	Hydraulic Gerotor Motor	Displacement:	500CC
Max.Speed(rpm):	Cont.155rpm/int.166rpm	Max.Torque(N.m):	Cont.830N.m/int.1040N.m
Max. Pressure Drop:	Cont.16MPa/int.18MPa	Max.flow(L/min):	Cont.75L/min~int.90L/min
High Light:	500CC Hydraulic Orbit Motor , Side Ports Cross Hydraulic Orbit Motor , Hydraulic Orbit Motor OMH 500

Hydraulic orbit motor OMH 500 with 1 in SAE 6B splined shaft,side ports cross hydraulic motor

Hanjiu techonlogy offer the OMH series motors, the same specification with Danfoss OMH Motors, M+S MH gerotor motors

this types is widely used on concrete pumps and drilling rigs.

OMH are light and compact and thus easy to install in machinery like forklifts, lawn mowers, lifts, loaders and excavators.

Product details:

displacement:500cc

flange:2 bolts flange

shaft:Splined 1 in (SAE 6B)

port size:7/8-14 UNF side ports

Main Specifications:

Type		BMH 200	BMH 250	BMH 315	BMH 400	BMH 500
Displacement (cc/rev)		203.2	255.9	316.5	406.4	489.2
Max torque (n.m)	cont	510	621	740	850	830
	int	439	348	282	220	184
Max pressure (mpa)	cont	17.5	17.5	17.5	15.5	12.5
	int	20	20	20	19	16
Max speed rate (rpm)	cont	366	290	236	183	155
	int	439	348	282	220	184
Max flow (L/min)	cont	75	75	75	75	75
	int	90	90	90	90	90
Weight(kg)		10.5	11	11.5	12.3	13.0

other type code

Displacement	200	250	315	400	500
Cyl. Ø32 mm	151H1002	151H1003	151H1004	151H1005	151H1006
Cyl. Ø35 mm	151H1012	151H1013	151H1014	151H1015	151H1016
Cyl. 1 1/4 in	151H1042	151H1043	151H1044	151H1045	151H1046
Splined 1 in (SAE 6B)	151H1080	151H1082	151H1083	151H1084	151H1081
Splined 1 1/4 in	151H1022	151H1023	151H1024	151H1025	151H1026
Splined 1 1/4 in	151H1052	151H1053	151H1054	151H1055	151H1056

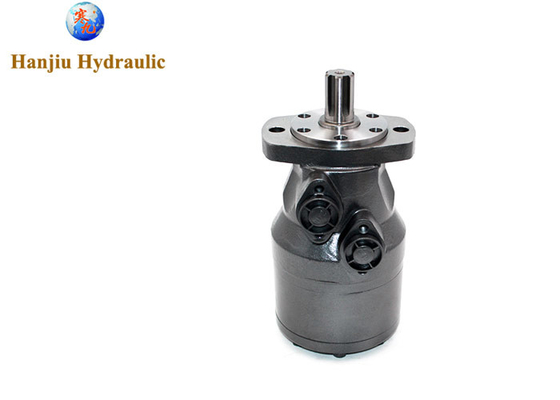

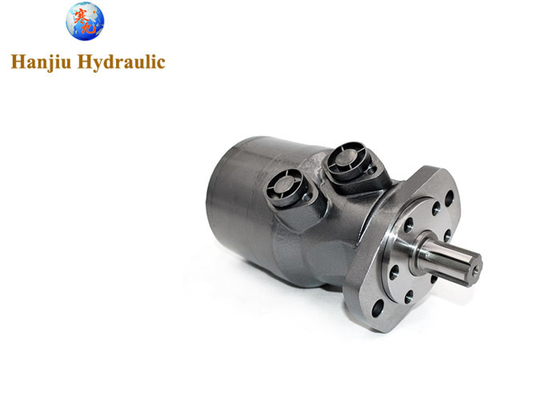

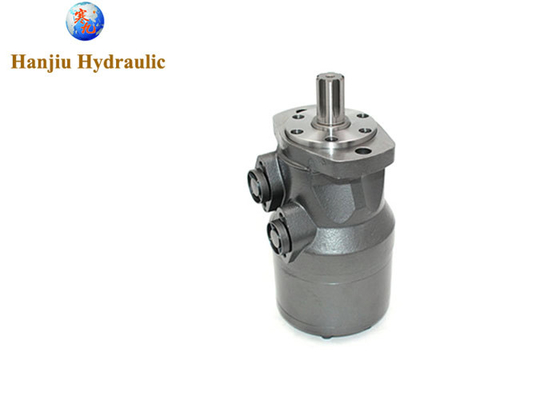

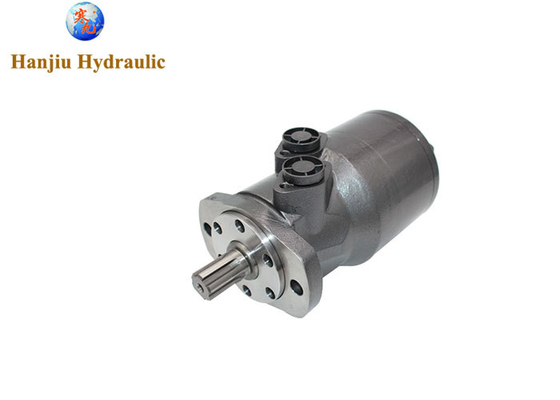

Hydraulic Orbit Motor OMH 500 With 1 In SAE 6B Splined Shaft Side Ports Cross 0

Hydraulic Orbit Motor OMH 500 With 1 In SAE 6B Splined Shaft Side Ports Cross 1

Hanjiu technology is the leading hydraulic motors manufacturer from China, we have more then 20 series motors matching Danfoss/M+S/Charlynn/Parker/White...comparing with these brand, work with us , you will get

--- A completely range of hydraulic motors, easy operate;

--- best price policy, bring you more profits

--- best aftersales service, no worries and conplaints from customers

--- fast leading time, 70-80days for over 500pcs

We study hydraulic motor products, continuously improve production efficiency, design new products to meet the needs of different customers; we take every customer's needs seriously, solve every problem for customers, customer satisfaction is our best service
