Product Details:
Payment & Shipping Terms:
|
| Features: | Compatible With Danfoss | Type: | Low Speed High Torque Motor |
|---|---|---|---|
| Manufacturer: | HANJIU | Model: | OMS 160 |
| Displacement: | 160 Ml/r | Flow Rate: | 75 Lpm Cont. |
| High Light: | 75lpm Low Speed High Torque Motor,160ml/r Low Speed High Torque Motor,160ml/r High Torque Motor |
||

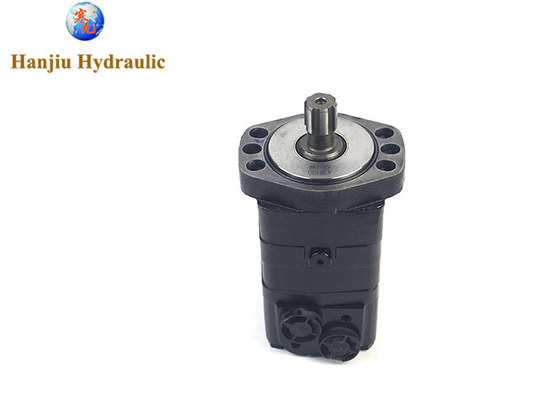

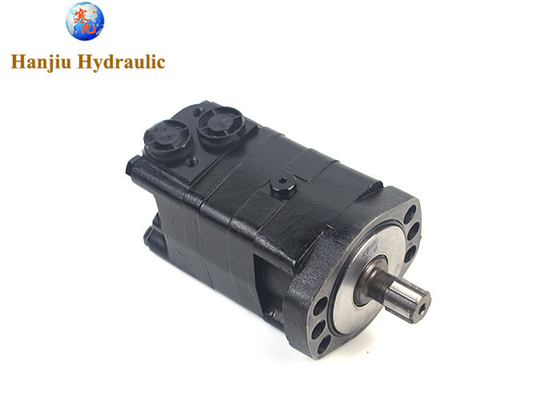

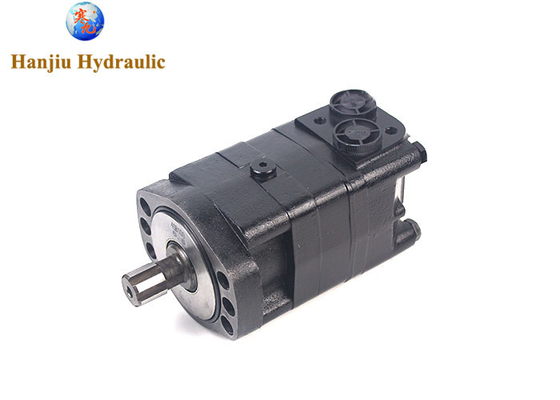

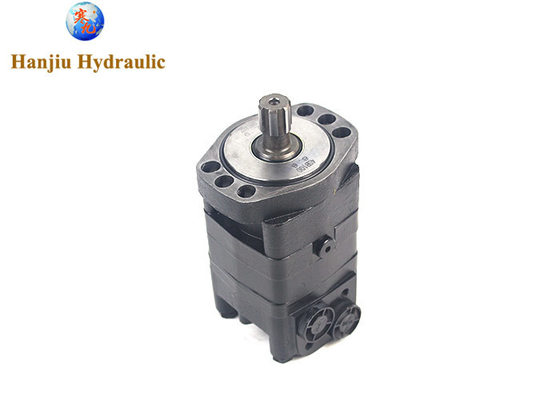

OMS 160 Low Speed High Torque Motor 6B Spline shaft for platform
Quick view of OMS 160:
| Hanjiu Model No. | OMS 160 |
| Displacement | 160 CM3/R |
| Flange |
6 -Ø13.5 Rhomb-flange Ø106.4, pilot Ø82.5×6.3
|
| Port Position |
7/8-14UNF O-ringˈ 7/16-20 UNF
|
| Shaft |
Shaft Ø25.4, Splined
|
| Rotation | Left and Right |
|
Max. speed (rpm)
|
470rpm
560rpm
|
|
Max. torque (N•m)
|
485N.M
590N.m
|
|
Max. flow (L/min)
|
75l/min
90l/min
|
Except OMS, we also have OMM, OMP, OMR, OMH, OMS, OMT, OMV series. Here are more examples.
Hanjiu specializes in the design and production of hydraulic motors, hydraulic systems and complete sets of equipment, and has a variety of different kinds of products to meet your individual needs. Manufacturers directly sell without suppliers to earn the difference, Hanjiu company's products are very cost-effective, we have not given up the pursuit of quality because of the low price of products. Years of continuous study of the hydraulic motor industry has enabled Hanjiu company to have the ability of independent research and development and independent production in continuous research, innovation and exploration. Our products are widely used in construction machinery, mining, communication and other industries, with customers from more than 30 countries. Hanjiu has excellent cutting-edge technology and aims to create hydraulic motors with excellent quality. You can buy high-quality and low-cost products from us, and we will provide you with technical support for one year after purchase.
