OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft

OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft
OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft

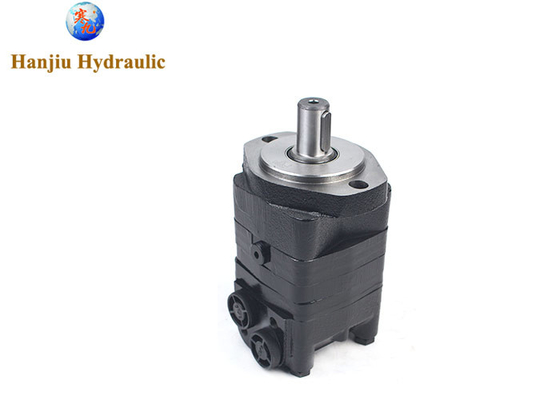

Large Image :  OMS 80 MS 80 Sauer Danfoss Hydraulic Motor 106.4mm Flange 25 Mm Key Shaft

Product Details:
Place of Origin: China
Brand Name: Hanjiu
Certification: CE,ISO9001
Model Number: OMS80
Payment & Shipping Terms:
Minimum Order Quantity: 50 units
Price: Negotiable
Packaging Details: Carton packing , with a tray or wooden box if needed .
Delivery Time: 10-15 working days
Payment Terms: T/T, Western Union,Paypal .
Supply Ability: 100,000 units / Year
Detailed Product Description
Product Name: Orbital Motor Displacement: 80CC
Max Speed: Cont800/int988rpm Max Torque: Cont190/int240 N.m
Oil Temperature: Normal-30℃-90℃ Max Flow: Cont 65/int.80 L/min
High Light:

Sauer Danfoss Hydraulic Motor OMS 80

,

80CC Sauer Danfoss Hydraulic Motor

,

Hydraulic Orbital Motor 106.4mm Flange

sauer danfoss hydraulic motor OMS 80 ,MS 80 Hydraulic Orbital Motor ,106.4mm flange,25 mm key shaft




OMS 80, MS 80 is a hydraulic orbital motor manufactured by Hanjiu Technology

 Details as below:

  • Port Size:7/8-14 UNF
  • displacement:80cc
  • Shaft:25mm key shaft
  • Port Location Side Ported
  • Flow Rating :75l/min
  • Max Speed:cont.800rpm,int.988 rpm
  • Shaft seal:High pressure seal Kit
  • function:low leakage
  • Country of Manufacture China


Main Specifications:



Type BMSY
80
BMSY
100
BMSY
125
BMSY
160
BMSY
200
BMSY
250
BMSY
315
BMSY
400

BMSY
475

Geometric displacement
(cm3 /rev.)
80.6 100.8 125 157.2 200 252 314.5 394 475
Max. speed (rpm) cont. 800 748 600 470 375 300 240 185 155
int. 988 900 720 560 450 360 280 225 185
Max. torque (N·m) cont. 190 240 310 316 400 450 560 880 910
int. 240 300 370 430 466 540 658 980 990
peak 260 320 400 472 650 690 740 751 760
Max. output (kW) cont. 15.9 18.8 19.5 15.6 15.7 14.1 14.1 11 9
int. 20.1 23.5 23.2 21.2 18.3 17 18.9 12 11
Max. pressure drop (MPa) cont. 17.5 17.5 17.5 15 14 12.5 12 16 14
int. 21 21 21 21 16 16 14 19 15
peak 22.5 22.5 22.5 22.5 22.5 20 18.5 21 17.5
Max. flow (L/min) cont. 65 75 75 75 75 75 75 75 75
int. 80 90 90 90 90 90 90 90 90
Max. inlet pressure (MPa) cont. 25 25 25 25 25 25 25 25 25
int. 30 30 30 30 30 30 30 30 30
Weight (kg) 9.8 10 10.3 10.7 11.1 11.6 12.3 12.6 14.3



* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.



The BMSY series motor adapts the advanced GEROLER gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9001-2015 quality system.
